Ask anyone who just typed this search into their phone and you get the same answer: the multimeter aisle is where good intentions go to die. One r/Tools thread put it plainly, users said it “just seems like there are so many models to choose from,” and the thread spent 100 comments trying to narrow it down to a single name. That is a solvable problem, and it is what this guide does.
We evaluated 10 true RMS multimeters for 2026 against the same yardsticks: verified true RMS on both AC voltage and AC current, a documented safety category of at least CAT III 600V, auto-ranging, and a display you can actually read in a dark crawlspace. We then read every verified owner review on each meter, weighed the complaints, and cross-checked the results against what people report in homeowner forums. If you want the short version, the AstroAI 6000-count true RMS meter is the one we would put in our own tool bag.
Before the picks, two things worth knowing. First, true RMS is genuinely important for some household loads and nearly irrelevant for others, so we explain where it earns its cost. Second, most of the trouble in this category is not measurement quality, it is confusing jargon, so the buying guide translates counts, CAT ratings, LoZ and NCV into plain English. Homeowners who also maintain outdoor power equipment will find our chainsaw sharpener roundup and cordless chainsaw picks a more sensible spend than a second meter.
Table of Contents
What Is True RMS and Why Does a Homeowner Need It?
A true RMS multimeter measures AC voltage and AC current using the root mean square method, sampling the waveform many times per cycle to calculate the true effective value. An average-responding meter assumes a perfectly smooth sine wave and uses a cheaper sensor calibrated to that assumption, which means it under-reads anything distorted.
Here is the difference that actually matters in a house:
Average-responding meter: calibrated to a clean sine wave, cheaper to build, can read 20 to 30 percent low on modern electronics.
True RMS meter: computes the real effective value of any waveform, so an LED lamp circuit and a variable-speed blower motor both read correctly.
Crest factor is the ratio of the peak of a waveform to its RMS value. Square-wave and chopped-PWM signals have a high crest factor, and that is exactly where average-responding meters drift.
Where true RMS earns its money in a home: furnace blower motors, variable-speed air handlers, heat pumps, mini-splits, washing machines, dimmers, LED drivers, induction cooktops and EV charger circuits. All of those draw non-sinusoidal current, and an average-responding meter can send you chasing a fault that does not exist.
Where it barely matters: a straight 120V receptacle circuit, a switch, a halogen or incandescent bulb. On those, any decent auto-ranging meter reads the same number. One r/AskElectronics tinkerer reported running a low-cost true RMS meter for about five years with no problems, which is honest counter-evidence to the idea that you must buy a flagship brand. Our honest answer is that a true RMS meter in the mid range is a cheap hedge for most people, and only becomes essential if you own modern HVAC equipment.
Top 3 True RMS Multimeters for Homeowners in 2026
These three cover the range of real use cases. The first is the all-rounder, the second has the largest owner base in the group, and the third is the highest rated per review volume we could verify.
AstroAI 6000-Count TRMS
- True RMS on AC voltage and AC current
- 6000 counts with auto-ranging
- Capacitance frequency duty cycle and temperature
- Double ceramic fuse and backlit LCD
KAIWEETS HT118A
- CAT III 1000V and CAT IV 600V
- 6000 counts on a 2.9 inch backlit LCD
- NCV live wire detection with audible alarm
- Bundled thermocouple and port LEDs
AstroAI 4000-Count TRMS
- Highest verified rating in the group
- 1.5V 9V and 12V battery test modes
- Only 219 g with a silicone cover
- NCV with buzzer and red indicator
All 10 Meters Side by Side in 2026
Every meter below measures true RMS on AC and was checked against a minimum CAT III 600V safety standard. The key features column is the short version; full details are in each individual review.
| Product | Specifications | Action |
|---|---|---|
| AstroAI 6000-Count TRMS |
|
Check Latest Price |
| KAIWEETS HT118A |
|
Check Latest Price |
 Crenova MS8233D |
|
Check Latest Price |
| AstroAI 4000-Count TRMS |
|
Check Latest Price |
 Thsinde 6000-Count TRMS |
|
Check Latest Price |
 FNIRSI DMT-99 |
|
Check Latest Price |
 KAIWEETS KM602 |
|
Check Latest Price |
 Klein Tools MM420 |
|
Check Latest Price |

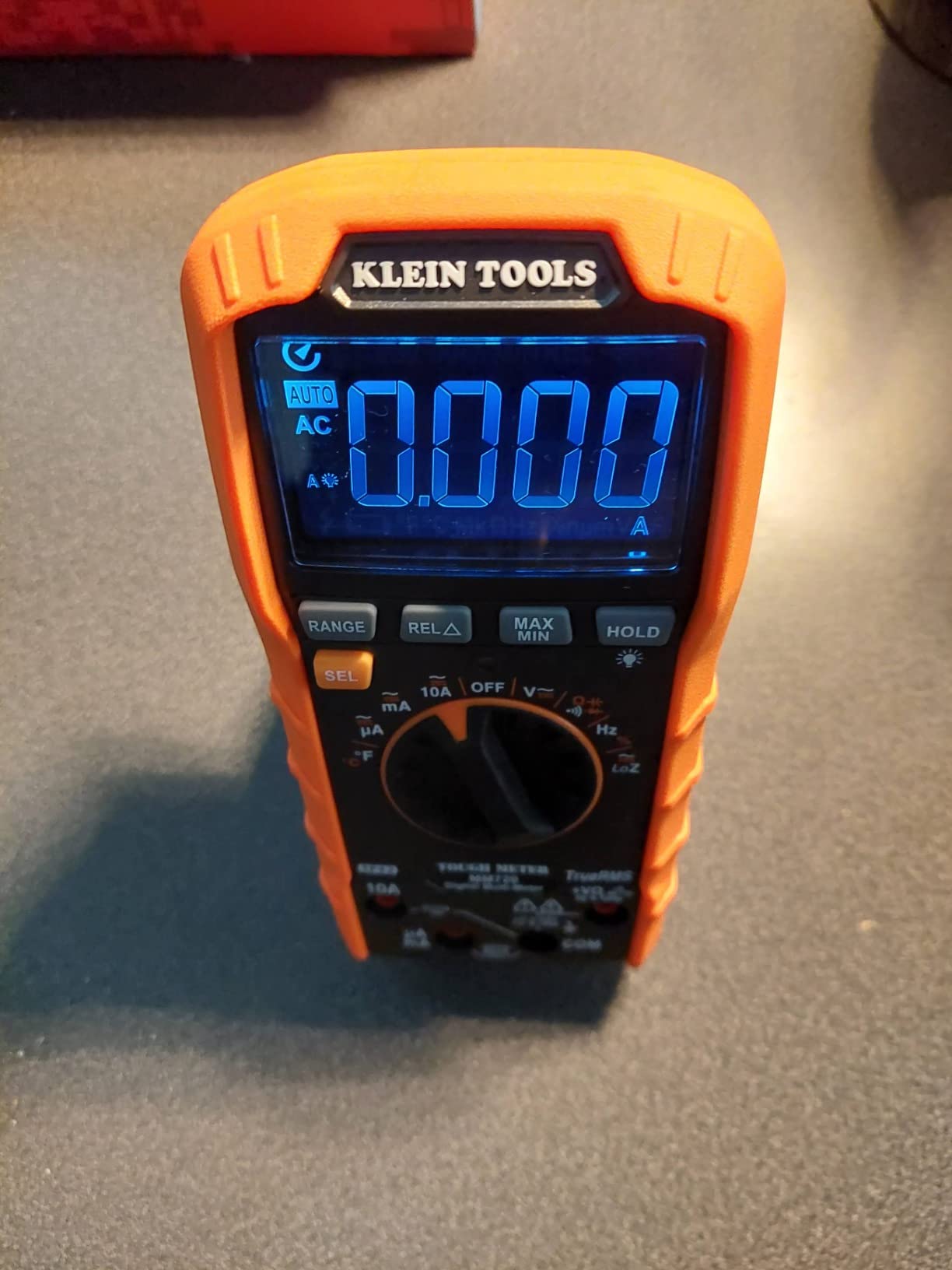

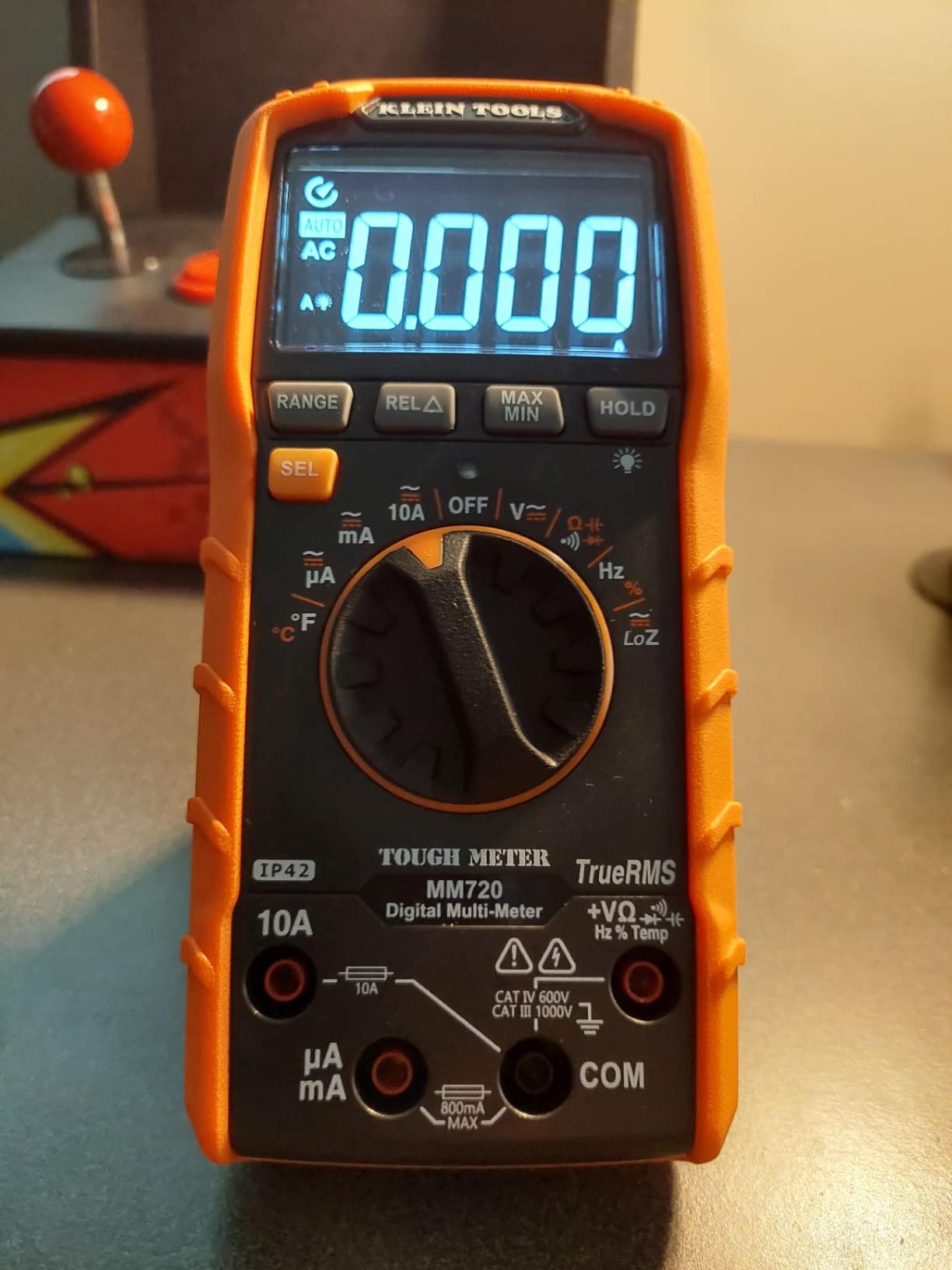

 Klein Tools MM720 |
|
Check Latest Price |

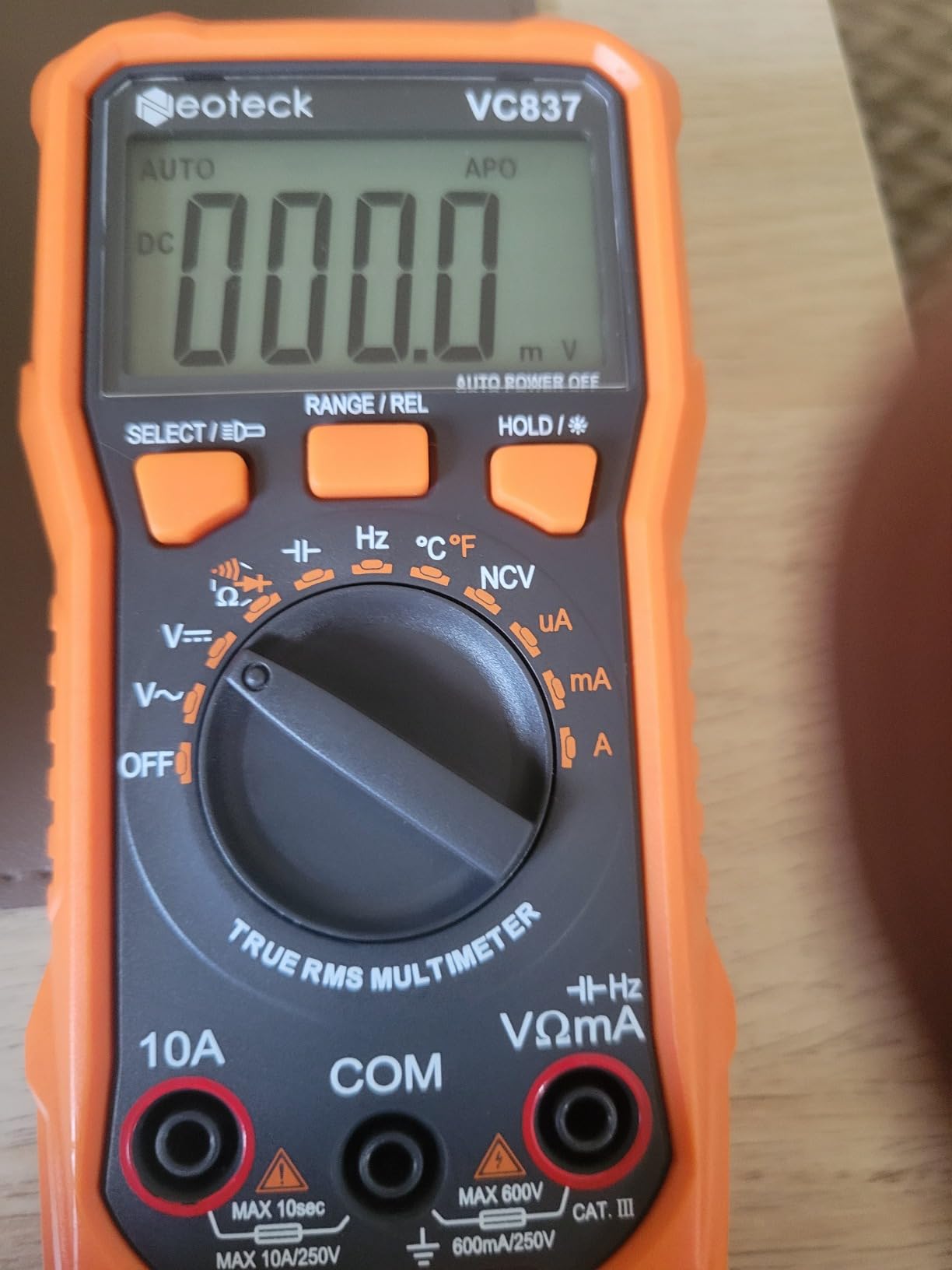

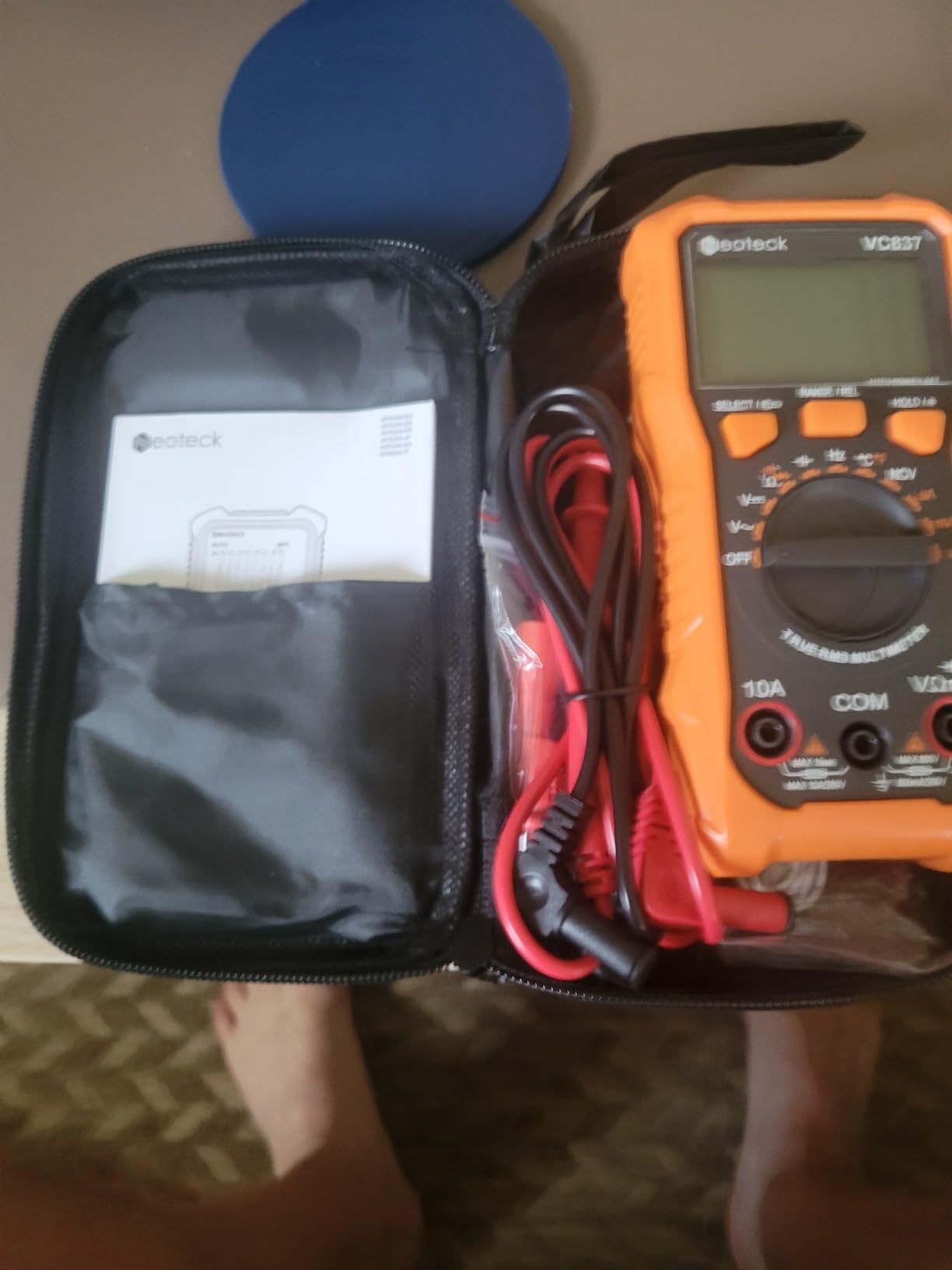

 Neoteck VC837 |
|
Check Latest Price |
How We Picked and Ranked These Meters
We ranked on evidence, not on brand reputation. Four things decided the order.
1. Verified specification. Every meter had to state true RMS for AC voltage and AC current in its own documentation, not just carry the word in a title. We also confirmed the safety category, count resolution, voltage ceiling, fuse type and what is actually in the box.
2. Owner review analysis. We read the full review set on each product, not just the star average. The most useful signal was whether owners compared readings against a known-good reference meter. Several reviews in this group report exactly that check, which is why we trust the accuracy claims on the AstroAI, Thsinde, KAIWEETS KM602 and Neoteck meters more than claims with no supporting data.
3. Complaint severity. Every meter here has some. We weighted electrical and accuracy complaints heavily and treated ergonomics as a tiebreaker, because a backlight timeout is an annoyance while a wrong AC reading on a motor circuit is a wasted afternoon and a possible false diagnosis.
4. Owner base size. A meter with 20000 reviews tells you far more about long-term reliability than one with 400. That is the main reason the Klein MM420 and MM720 sit where they do despite strong ratings, and it is a caution we repeat in their reviews.
We also flagged two traps. Some highly rated meters carry a lower safety category than you would expect, and some popular models from famous brands are not true RMS at all, a point raised more than once in r/ElectricalEngineering. Check the category and the RMS claim on the spec sheet, never on the retailer’s headline.
1. AstroAI 6000-Count True RMS Multimeter – The All-Rounder
AstroAI Digital Multimeter, True RMS 6000 Counts Auto-Ranging Volt Meter for Automotive & Home Electrical Troubleshooting, AC/DC Voltage Current Resistance Continuity Capacitance Temperature Tester
True RMS on AC voltage and current
6000 counts, auto-ranging
1000V DC maximum
492 g
Pros
- AC and DC readings verified by owners against reference meters
- Capacitance frequency duty cycle and temperature in one meter
- Large backlit display with a fast continuity beep
- Auto-ranging removes manual range selection
- Build quality feels above the tier
Cons
- Frequency counter ceiling is far below the claimed figure
- Transistor hFE mode reads low and the adapter socket is C-B-E
- Backlight times out quickly with no way to change it
- Strong rear magnet picks up small metal debris
This is the meter we would buy. Model AST-6000-D measures AC and DC voltage and current, resistance, capacitance, frequency, duty cycle, diode, continuity and temperature, with true RMS on both AC voltage and AC current. At 6000 counts and fully auto-ranging, it covers essentially every household job we could think of, and the 492 g body sits well in the hand.
What convinced us was the review pattern rather than the spec sheet. Owners repeatedly describe checking it against higher-end reference meters and finding agreement, and roughly three quarters of reviews are five star with most of the remainder four star. The critical reviews that exist are technical rather than functional, which is a good sign for a tool this cheap.
The feature density is the real story. A capacitance range, a frequency counter, duty cycle and a temperature function on a meter this size is unusual, and the double ceramic fuse setup at F400mA/600V and F10A/600V is a genuine step up from the glass fuses used in cheap meters, because a ceramic fuse fails safe instead of just going open.
Two smaller details matter more than they sound. The kickstand on the back makes it usable hands-free while probes stay in your hands, and the large backlit screen is legible in a basement with the breaker off. The rear magnet holds the meter to a panel door, though owners note it also picks up staples and nuts from a workbench, so wipe it before use.
Is this accurate enough to trust on a motor circuit?
Yes, for household work. The true RMS claim covers AC current as well as AC voltage, which is the part many budget meters skip, and the owner checks against reference meters back that up. If you are diagnosing a variable-speed blower, this is the cheapest meter in the group that measures the load correctly rather than approximating it.
The one function we would not rely on is the frequency counter. Owners who tested it found the upper limit is far below the published 60MHz figure and needs a strong signal to read at all, and the transistor hFE mode reads roughly half true gain with a socket wired C-B-E instead of B-C-E. Neither matters for household electrical work.
Is it worth buying over a Klein or Fluke?
For outlet, switch, breaker, light fixture and appliance-current work, yes. One r/AskElectronics user reported getting along fine with a low-cost true RMS meter for about five years, and that tracks what we see in the reviews here. You give up the brand name an electrician would recognise, and the plastic carries no working-brand certification beyond what the documentation states.
Two things to plan around: the backlight cuts out after a short interval with no timeout adjustment, and no carrying case is included. Budget an extra few dollars for a soft case, since a meter that lives in a truck will get dropped. Otherwise this is the pick we would hand to a friend who asked us to just tell them what to buy.
2. KAIWEETS HT118A Automotive TRMS Tester – Largest Owner Base
KAIWEETS Digital Multimeter Automotive TRMS Tester 6000 Counts NCV for Car
CAT III 1000V and CAT IV 600V
6000 counts on a 2.9 inch LCD
Up to 1000V DC and 750V AC
0.55 kg
Pros
- Largest verified owner base in this group at over 23000 reviews
- Port indicator LEDs show which jack to use
- Includes a thermocouple for temperature checks
- Min Max and Average recording captures signal fluctuation
- Backlight plus a rear flashlight for dark panels
Cons
- Wide 8 inch-plus body is bulkier than most handheld meters
- Single voltage input means toggling between AC and DC
- Audible NCV beep is very loud in a quiet room
The HT118A is the most-reviewed meter in this comparison, and with more than 23000 owner reviews the reliability picture is unusually well established. It is rated CAT III 1000V and CAT IV 600V, which is a genuinely higher safety class than most of the budget meters here, and it measures up to 1000V DC, 750V AC, 10A AC and DC current and 60 MOhms resistance.
Its signature feature is the illuminated port indicators. Small LEDs at each jack light up to show which lead belongs where, which removes the most common beginner error in this whole category, plugging a lead into the wrong socket and blowing a fuse. For a homeowner learning to use a meter rather than an electrician who already knows, that is worth more than another measurement function.
Everything else is aimed at real work. Non-contact voltage detection gives both an audible and a light alarm, the 2.9 inch backlit display runs 6000 counts at 6000-count resolution, and a rear flashlight lights up a crawlspace or an engine bay. Double ceramic fuses plus a thermistor protection circuit guard against the mistake case, and the box includes a thermocouple so you can check supply air temperature during an HVAC diagnosis.
Min, Max and Average recording is quietly valuable for intermittent faults, the kind of breaker that trips once a week and refuses to trip when you are watching. The 78 percent five star share is consistent with the star average, and the complaints that appear are about size and the shared voltage input rather than accuracy.
Should a homeowner buy a meter rated this high?
Probably not necessary, but not wasted either. CAT III 1000V and CAT IV 600V matters if you ever work near a service entrance or a subpanel, and the higher ceiling simply means the meter will not be the limiting factor if you later take on bigger jobs. For 120V branch circuits anywhere in the house, CAT III 600V is sufficient, so treat this as headroom rather than a requirement.
Owners consistently praise the port LEDs and the included thermocouple, and the anti-burn fuse design is a real advantage for anyone who will be learning on live circuits. The tradeoff is physical: at over 8 inches long and 0.55 kg, this is a chunky tool for a small panel, and the wide body is awkward in a cramped attic or inside a shallow work box.
What will annoy you every day?
The single voltage input is the main gripe. One jack handles both AC and DC, so you toggle between them for every voltage reading instead of using two dedicated sockets. Owners also find the NCV beep extremely loud, which is helpful in a loud mechanical room and irritating in a quiet one.
Klein is a common alternative at this level, and one r/electrical commenter put the general case well: Klein is a decent brand of meter and the Fluke reputation is deserved, but they would still choose the Klein. This meter is a different answer to the same question, one with a much larger installed base. If you mostly test automotive and low-voltage control circuits rather than house wiring, that emphasis is the right one.
3. Crenova MS8233D – Most Complete Kit in the Box
Crenova MS8233D Multimeter TRMS 6000 Counts Auto-Ranging Live Wire NCV
True RMS with 6000 count display
IEC61010-1 CAT III 600V
Manual and auto ranging
0.55 kg
Pros
- Complete kit with alligator clips carry bag batteries and leads
- Beep rate on NCV scales with detected signal strength
- Switchable manual and auto ranging for users who pin a range
- Backlit 6000-count display
- Insulated rubber holster adds shock protection
Cons
- Unusually heavy at 0.55 kg for its compact size
- Carry bag is soft rather than a hard protective case
- Rated only to CAT III 600V so no headroom above that
What separates the MS8233D from the other budget meters is the box contents. Most competitors ship the meter, two leads and a manual. This one includes the meter, two AAA batteries, test leads, alligator clips and a carry bag, which removes the two most common follow-up purchases and gives you a way to test a fuse or a switch without holding probes in both hands.
Measurement coverage is complete for household work: AC and DC voltage and current, resistance, capacitance, frequency, duty cycle, continuity and diode. The 6000-count 3 5/6 digit LCD has a bright backlight, and sampling at three readings per second is fast enough to follow a fluctuating reading.
The NCV behaviour is worth a note. Rather than a single beep, the beep rate increases as the detected voltage gets stronger, so you can walk along a bundle of conductors and tell roughly how close you are. That is a genuinely useful field behaviour, and reviewers single it out. The rubber holster is a modest but real shock protection layer for a meter that will live in a garage.
Unlike several competitors, this meter lets you switch between manual and auto ranging. Beginners should stay in auto, but if you ever chase a drifting resistance reading, pinning a range is a real diagnostic technique that most cheap meters simply do not offer.
Is the 600V category limit going to be a problem?
No, for residential work. CAT III 600V covers every 120 and 240V branch circuit in a typical house, including your panel and dryer and oven ranges. It becomes a limitation only if you work on service equipment, where CAT IV applies, and that is electrician territory covered in our safety section below.
So the honest case against it is not the safety rating but the weight. At 0.55 kg on a 5.51 inch body, it is a dense, oddly balanced tool, and reviewers who carry it daily notice. If your testing is mostly at a desk or on a bench, that is irrelevant. If you are climbing into attics, the 219 g AstroAI in review four is a better companion.
What do you give up at this tier?
Temperature measurement is the main omission, so this is not the meter to use for furnace or supply-air temperature diagnostics. You also lose the port indicator LEDs that the KAIWEETS offers, and the manual ranging is a small bonus rather than a substitute for a better display. The soft carry bag will not survive a truck bed.
Owners treat this as the value pick of the group, with about 77 percent five star ratings and praise concentrated on completeness of the box and the NCV buzzer. If you want one meter that covers every household job with the accessories already included, this is the one, and the savings compared with buying a bare meter plus leads add up faster than most people expect.

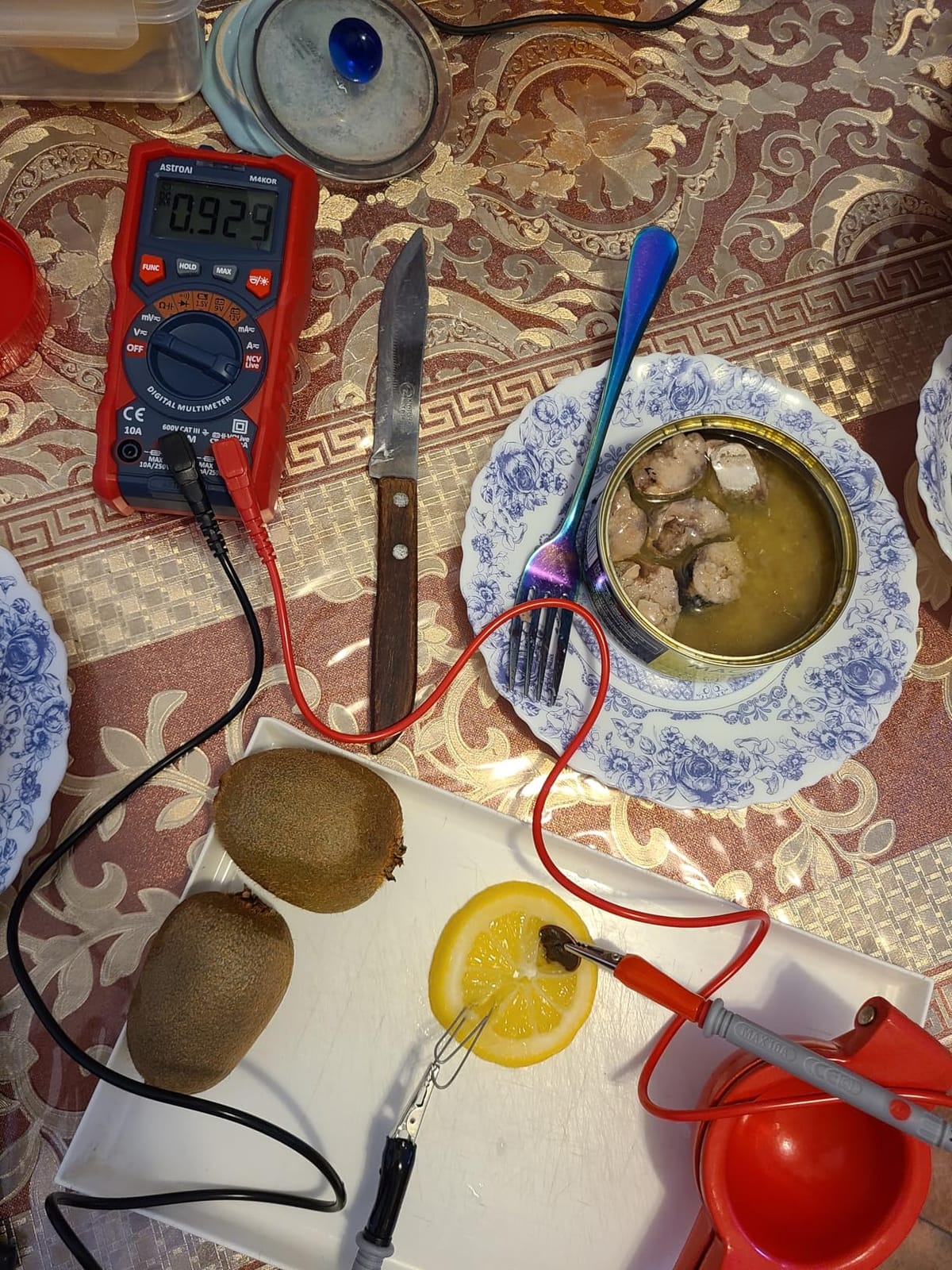

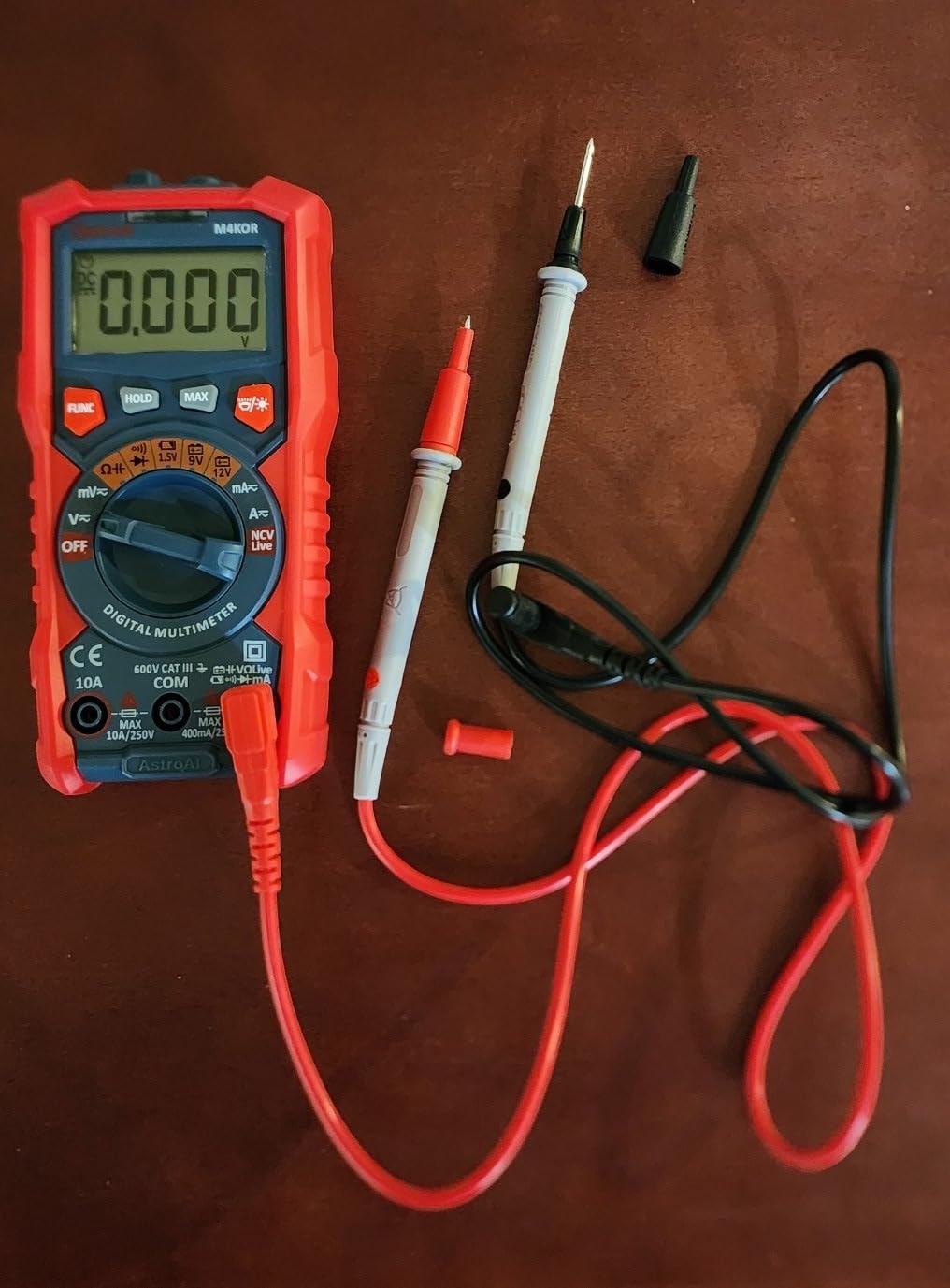

4. AstroAI 4000-Count True RMS Multimeter – Lightest and Best Rated
AstroAI Digital Multimeter, TRMS 4000 Counts, Auto-Ranging, Battery Test
True RMS with 4000 count resolution
AC and DC to 600V, 10A, 40 MOhms
Only 219 g
CAT III 600V with ceramic fuse
Pros
- Highest verified average rating in this comparison at 4.7
- Battery test modes for 1.5V 9V and 12V cells with light indication
- Lightest body here at 219 g so it suits a tool bag
- NCV with buzzer and red indicator
- Backlit screen plus a built-in flashlight
Cons
- Only 4000 counts
- the lowest resolution here
- 600V maximum voltage is lower than several rivals
- Resistance range stops at 40 MOhms
On pure owner satisfaction this is the strongest meter in the group, with a 4.7 average across more than 6700 reviews and about 79 percent five star. It is also the lightest at 219 g, which sounds trivial until you are working overhead in a crawlspace or carrying a meter and a flashlight up a ladder.
The feature nobody expects is the dedicated battery test. Dedicated modes for 1.5V, 9V and 12V cells show a red or green indicator light, so you can check smoke detector batteries, remote control cells and outdoor sensor batteries without hunting for a settings menu. It is a small function that turns out to be the reason many owners recommend the meter.
Everything else is standard and solid: AC and DC voltage to 600V, current to 10A, resistance to 40 MOhms, auto-ranging, data hold, max reading, auto shut-off, a low battery indicator and a continuity buzzer. Non-contact voltage detection gives both sound and light alarms, and the backlit screen and built-in flashlight cover dark panels. The silicone cover adds drop and shock protection on top of the CAT III 600V rating and double ceramic fuse.
This is the meter we would pick for anyone who wants something small and dependable rather than feature-heavy. The measurement set covers every outlet, switch, breaker and light fixture check, and for household wiring the lower resolution is not a meaningful handicap.
Does 4000 counts matter for a house?
Very little. Counts describe how many digits the display can show, and the difference between 4000 and 6000 counts shows up when measuring low-resistance values or reading a slowly changing voltage on the last digit. For 120 and 240V readings both meters resolve plenty, and the 600V ceiling here matches the CAT III rating rather than fighting against it.
Where the lower ceiling could matter is 240V appliance circuits that spike, and where 40 MOhms resistance top-out could matter is high-value insulation checks, which you should not be doing yourself anyway. The lighter body and the best rating in the group are the reasons this ranks fourth, and honestly it is a coin flip between this and the editor’s choice for most buyers.
Is this the right pick for a first-time owner?
Yes, and it is the one we would suggest to someone who expressed the frustration in that r/Tools thread about not knowing where to start. Nothing on the dial is exotic, the functions map directly onto household tasks, and the reviewer base is large enough that failures would be visible if they existed.
Owners who upgraded from a five-dollar meter report the difference is mostly in confidence rather than features, since readings now agree with the appliance and the multimeter rather than arguing with it. The one thing to add is a case, because at 219 g it will end up in a pocket and that is exactly where screens get cracked.

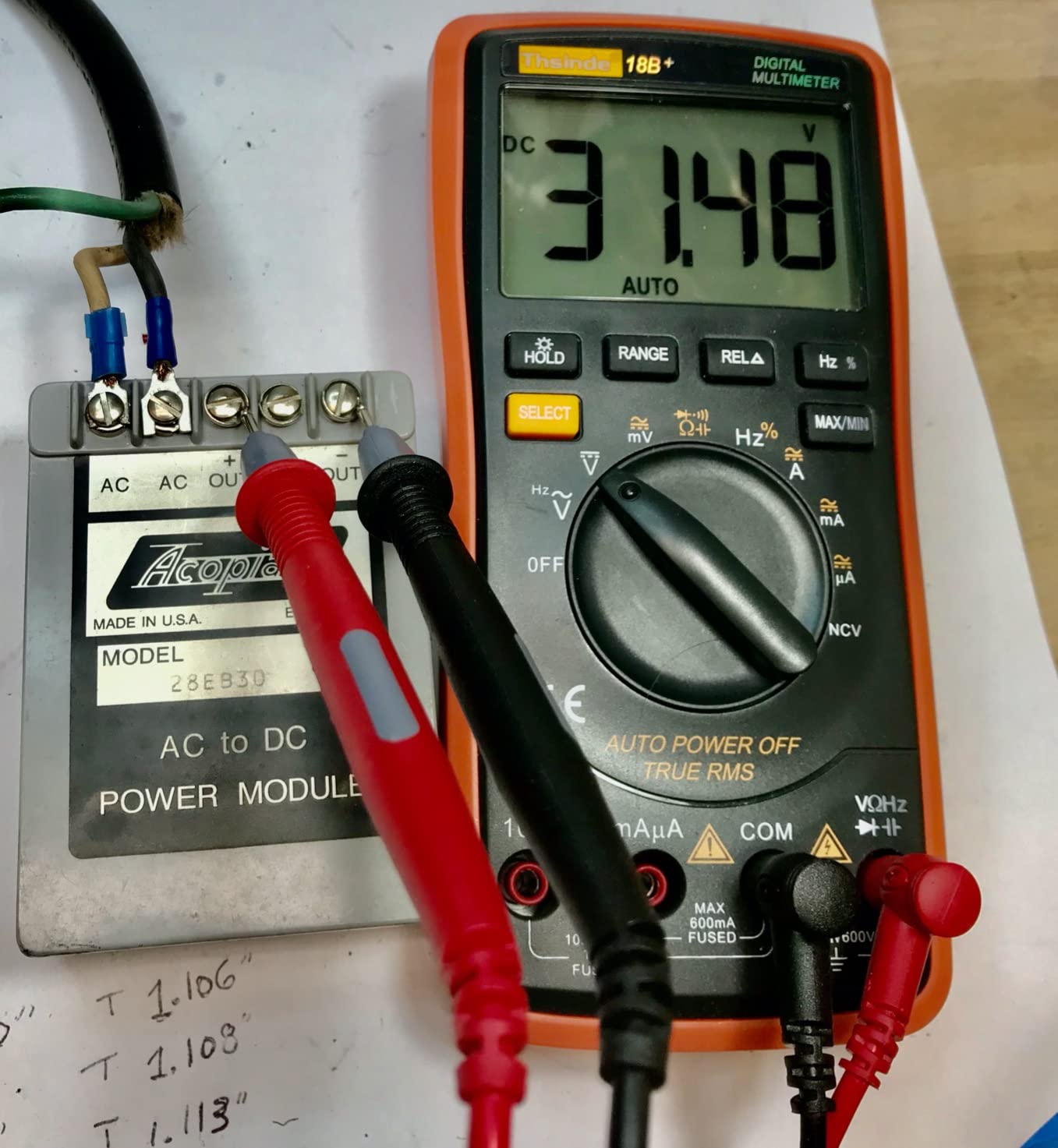

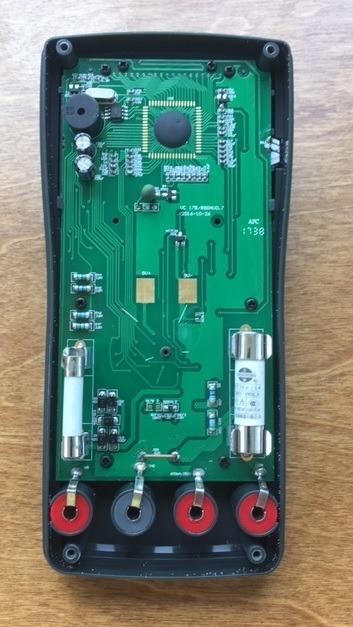

5. Thsinde 6000-Count True RMS Multimeter – Best Complete Kit Value
Auto Ranging Digital Multimeter TRMS 6000
True RMS across 10 auto-ranging ranges
Up to 20000 microF capacitance
IEC 61010-1, CE and UL listed
Nine volt battery powered
Pros
- Owner verified AC RMS voltage and frequency against a Fluke
- Nine volt battery avoids AA and AAA leakage problems
- Includes two sets of test leads plus alligator clips
- PTC ceramic protection on resistance and frequency
- Probe storage slots and a fold-down stand in the case
Cons
- NCV detection is inconsistent and sensitive to how the meter is held
- Backlight times out after about 15 seconds with no adjustment
- Nine volt battery does not sit flush and pushes the door open
- Instructions are effectively missing
The strongest evidence in this review belongs to the Thsinde, even though it is not the cheapest meter here. One detailed owner compared it against a high-end Fluke at room temperature and found AC RMS voltage, DC voltage and frequency accurate, with only slight deviation on duty cycle. That is the kind of cross-check we look for everywhere and rarely find.
It is also certified to CE, UL and IEC 61010-1, a documented triple rather than a single claim, and the true RMS engine runs across 10 auto-ranging ranges. A high impact plastic case with probe storage slots and a fold-down stand is a more thoughtful enclosure than most meters at this level manage.
The kit is generous: the meter, a 9V battery, an English manual, two sets of test leads and two alligator clips. Two sets of leads is a quietly excellent detail, because the spare set can be left permanently on resistance or continuity while the other set stays on voltage, and nobody has to re-terminate leads mid-diagnosis.
Protection is handled by a PTC ceramic circuit for resistance and frequency, and continuity and diode testing run up to 20000 microF, which covers every electrolytic capacitor you will find in a household appliance. The backlit 3 5/6 digit LCD refreshes three times a second, and the rotary selector has a positive, detented click.
Can you rely on the non-contact voltage mode?
Not as your primary method. Owners are consistent that the NCV sensor is inconsistent and heavily dependent on how the meter is held relative to the conductor, which is true of most NCV implementations and worse on smaller meters because the sensor is less sensitive. Use it to narrow down a bundle of wires, then confirm with a probe on a known de-energized circuit.
That caveat matters because the same inconsistency shows up in ghost voltage behaviour. A meter that reads 40V on a de-energized line is reading capacitive coupling, not a real voltage, and a meter with no low impedance mode gives you no way to tell the difference. If ghost voltage is a recurring theme in your diagnostic work, the Klein MM720 in review nine handles it properly.
What are the real drawbacks here?
Documentation, mainly. Owners report that instructions are effectively missing and the battery polarity marking on the case is faint, so plan ten minutes of learning the dial before your first real job. The 9V battery is a genuine improvement over AA and AAA cells, which corrode and leak, but it does not sit flush in the compartment and pushes the door out until the screw is tightened.
The stiff orange overmold also offers less real drop protection than it appears to, and the backlight cuts out after about 15 seconds with no way to extend it. Weighing that against verified accuracy and a genuine multi-standard certification, this remains a strong pick for anyone who wants a meter they can trust on a motor circuit and can find the manual for elsewhere.
6. FNIRSI DMT-99 – Best for Electronics and Intermittent Faults
FNIRSI DMT-99 Digital Multimeter 9999 Counts TRMS, Rechargeable Volt Meter
9999-count true RMS
1500mAh rechargeable battery with Type-C
2.4 inch HD TFT colour screen
6.72 oz
Pros
- Highest count resolution in the comparison at 9999
- Rechargeable Type-C battery removes spare cells
- Graphic waveform view reveals ripple and transients
- Monitoring mode with custom threshold alarms
- Fine test leads suit tight circuit boards
Cons
- Colour screen and rechargeable cell are more fragile than an LCD and AA batteries
- Menu-driven colour interface is more complex than a dial and buttons
The DMT-99 is the odd one out in this list and the most capable tool in it. At 9999 counts it has the highest resolution in the comparison, and more importantly it plots the waveform graphically. A conventional meter gives you a number; this one shows you the shape of the signal, which is how you spot ripple, droop and switching transients that a number completely hides.
Monitoring mode completes the argument. You set a threshold and the meter alarms when a reading crosses it, then you walk away. For a fault that only appears when a motor starts, or an intermittent connection under vibration, that is the difference between catching it and never seeing it.
Power comes from a built-in 1500mAh rechargeable lithium cell charged over Type-C, so there are no cells to find when the meter dies mid-task. The 2.4 inch HD TFT colour screen has adjustable brightness, and Auto-Mode detects AC versus DC voltage, resistance and continuity on its own. Back-integrated storage slots hold the ultra-fine leads, and the fine tips are genuinely useful on SMD components and crowded boards.
Dual ceramic fuses and anti-burn protection circuitry cover the input side. Buyers gravitate here for electronics and automotive repair rather than simple household checks, and with 80 percent five star ratings the owners who stay tend to be the ones who understand what the graphing feature is for.
Is a colour screen the right call for house work?
Usually not. A colour TFT panel and a rechargeable lithium cell are both more fragile than a plain LCD running on disposable batteries, and a meter in a garage or a truck bed takes abuse. For outlet and breaker work, the simplicity of a dial-and-function meter beats a menu interface every time.
What the display does buy you is the ability to see a distorted waveform, which is the entire argument for true RMS made visual. If you own a variable-speed furnace, a heat pump or an EV charger and want to understand what the signal is doing, this shows you. If you are checking whether an outlet is live, any meter in this list will do it with less risk of a cracked screen.
What should you watch out for?
Reviewers point to fragility and complexity rather than accuracy, and they do so fairly. The rechargeable battery is not user-replaceable, so treat the meter as a device you charge rather than maintain, and do not plan on operating it while it charges. The menu-driven colour interface takes an afternoon to learn and can be irritating under time pressure.
At 1356 reviews the owner base is on the smaller side, which means less long-term commentary than the budget options and a shorter track record. That is the main reason this ranks sixth despite being the most technically capable meter here. Household users should look at the editor’s choice; electronics hobbyists should look at this one.

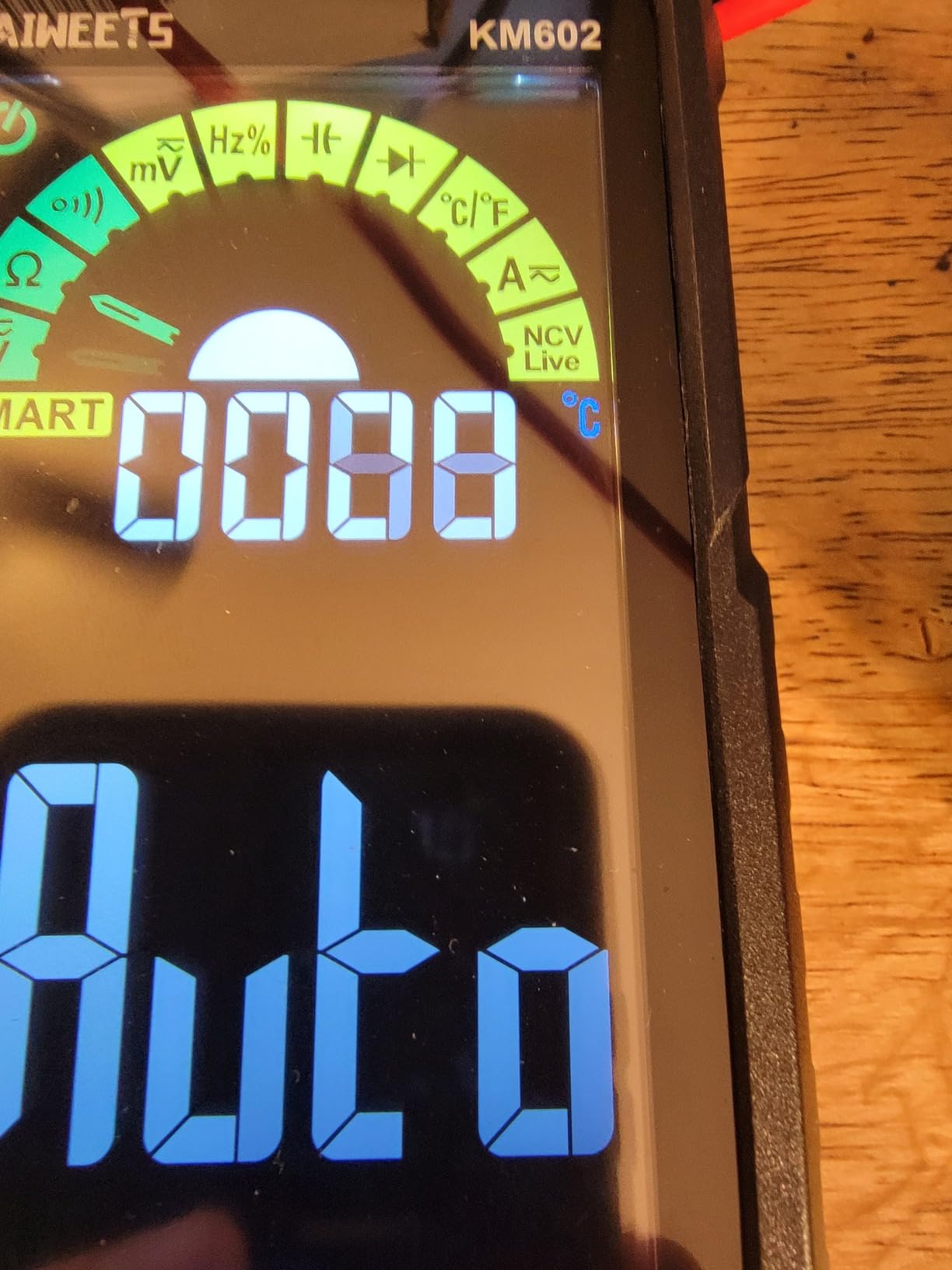

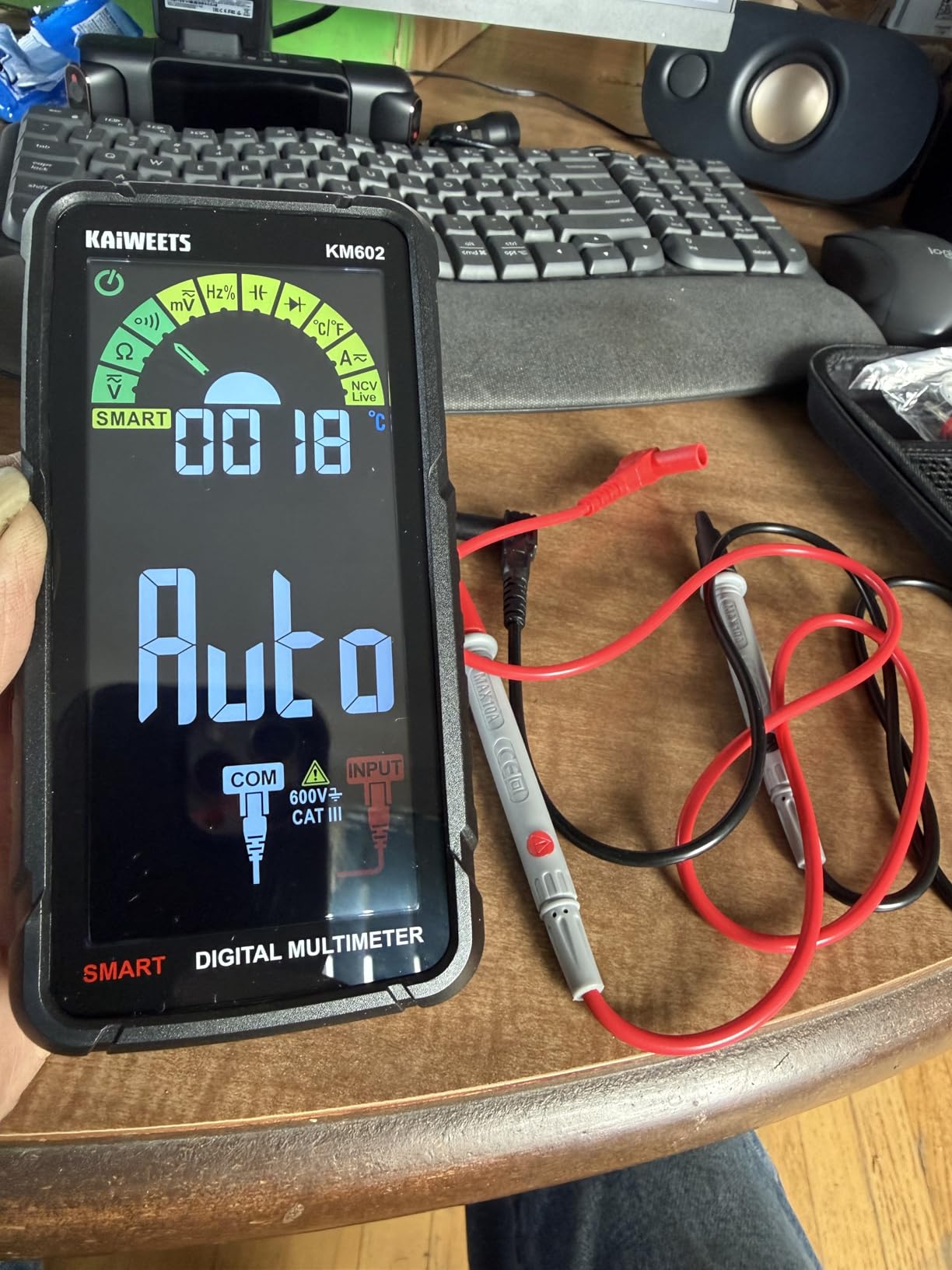

7. KAIWEETS KM602 Smart Multimeter – Best Auto Mode, Weakest Rating Here
KAIWEETS Smart Multimeter Rechargeable Electrical Tester with Auto Ranging Digital Voltmeter Measures Voltage Current Resistance Continuity Capacitance Temperature Frequency NCV 6000 Counts TRMS
SMART mode auto-identifies the function
6000-count true RMS
Rechargeable 1200 mAh battery
CAT III 1000V and CAT IV 600V
Pros
- SMART mode removes the need to pick function range and port
- Owner with Fluke 76 background confirmed readings against LCR and frequency references
- Substantial build weight and feel for the tier
- Rechargeable 1200 mAh cell
- Includes storage bag and silicone cover
Cons
- Colour LCD is hard to read in direct sunlight
- Screen refresh takes about two seconds
- SMART mode can flip between voltage and resistance on unstable circuits
- Rechargeable battery is not user replaceable
The KM602 is the most interesting idea in this group and the least proven. SMART mode is meant to do the hard part for you: it identifies whether you are measuring voltage, resistance or continuity, selects the range and picks the port. For a homeowner who has never used a multimeter, that removes the single biggest source of blown fuses and confused readings.
Manual mode is still there and covers AC and DC voltage, current, resistance, continuity, capacitance, frequency, diode, duty cycle, temperature, NCV and live wire detection, all at 6000 counts true RMS. A built-in flashlight, Min Max Average recording, an analog bar display and data hold round out a feature set that is generous for the tier.
Accuracy has been checked by owners, which is unusual and valuable. One with a Fluke 76 background compared readings against LCR testers and frequency counters and found they agreed. It carries IEC CAT III 1000V and CAT IV 600V ratings with double fuse anti-burn protection, and the rechargeable 1200 mAh battery plus the included storage bag and silicone cover make it a tidy package.
The 4.4 average is the lowest in this comparison, and the rating distribution shows why, with a three-star share several times higher than the other meters. That is a real signal, and we rank it seventh for that reason rather than hiding it.
Should a beginner buy an auto-mode meter?
The idea is right and the execution is not quite there. SMART mode genuinely helps, but owners report it can flip between voltage and resistance on unstable circuits and cannot be locked to DC voltage only, which is a problem when you are testing a circuit where the reading keeps changing as you touch the probe.
There is also a two-second screen refresh, which is slow when you are checking many pins or leads in sequence. And the color LCD that makes the display attractive is hard to read in direct sunlight, which is a genuine drawback for outdoor and under-hood work. The narrow viewing angle compounds it.
Is the lower rating a real warning?
Partly. At 1321 reviews the sample is reasonable, and the complaints cluster around display quality and practicality rather than wrong measurements, which is why we still rate it as capable. The rechargeable battery being non-replaceable, the deeply recessed charging port and the short test leads are annoyances that will recur.
One owner scratched the large glass screen in a dirty shop environment, and a glass panel in a meter is a compromise regardless of the specification sheet. If SMART mode is what draws you to it, buy it knowing the display is the weak point. If you want simple reliability, the Crenova in review three does the same job with a dial and fewer ways to confuse it.
8. Klein Tools MM420 – Best Pick for First-Time Owners
Klein Tools MM420 Digital Multimeter, Auto-Ranging TRMS Multimeter, 600V AC/DC Voltage, 10A AC/DC Current, 50 MOhms Resistance
True RMS auto-ranging to 600V
10A current and 50 MOhms resistance
CAT III 600V
Tested to a 6.6 foot drop
Pros
- Lead alert LEDs at the jacks show correct lead placement
- Serious ceramic fuses accessible from the battery compartment
- Build quality and dial labelling owners compare favourably to Fluke
- Bright backlit display with high contrast
- Built-in lead holders and a kickstand
Cons
- Backlight cuts out after a short interval with no override
- Screen is hard to read without the backlight
- One voltage setting defaults to AC so the SEL key must be tapped every time
- Battery compartment needs a screwdriver
The Klein MM420 is the one most homeowners should end up with. It measures AC and DC voltage to 600V, 10A AC and DC current and 50 MOhms resistance with true RMS auto-ranging, plus continuity, temperature, capacitance, frequency and duty cycle and diode testing. For a house, that is the complete list of things you would ever ask it to do.
Unlike the generic meters, this one has a brand a professional would recognise, and owners including career electricians say so. One r/electrical commenter described using a Fluke for everything around the house, and the general consensus in homeowner threads is that the Klein name carries enough weight to be trusted without cross-referencing a forum. It is also tested to survive a 6.6 foot drop, which is a real specification rather than a marketing adjective.
Build details are where the money went. The lead alert LEDs at the jacks illuminate to show correct test lead placement, the same safety idea as the KAIWEETS and implemented just as well. Serious ceramic fuses sit in the battery compartment where you can reach them, and the back of the case has integrated test lead holders and a kickstand, with an optional magnetic hanger for panels and ladders.
The backlit LCD uses a distinctive high-contrast colour that owners consistently call readable. It ships with safety-capped test leads rated for CAT III and CAT IV work, a thermocouple and two AAA batteries, so nothing needs buying separately. At 84 percent five star it ties for the highest satisfaction in the set.
Are Klein meters as good as Fluke?
For house work, yes. The MM420 is rated CAT III 600V, which is the correct category for every branch circuit in a residence, and it does true RMS rather than approximating AC. The remaining Fluke advantages are build refinement and a longer track record on service work, neither of which changes a reading in your garage.
Homeowner forum answers reach the same conclusion repeatedly, with the pattern being that Klein is the better value for home work and Fluke is what an electrician reaches for. Our own view is that the gap is real but small at this end of the market, and it widens at the professional end rather than here.
What are the daily annoyances?
The backlight is the big one. It turns off after a short interval with no way to keep it on, and the screen is genuinely hard to read without it, so if you are working in a dark crawlspace you will be flicking a button constantly. This is the single most common complaint and the most commonly accepted.
One voltage setting also covers both AC and DC and defaults to AC, so the SEL key must be tapped every time you move to DC, which is mildly irritating if you test batteries or DC circuits often. The battery compartment needs a screwdriver, function labels are symbols rather than words, and it uses AAA rather than AA cells with the usual recharge complaint. Some packages arrive without the described carrying case, so check the box.
9. Klein Tools MM720 – Best for Ghost Voltage and Live Circuit Tracing
Klein Tools MM720 Digital Multimeter, Auto-Ranging TRMS, Low Impedance (LoZ), 1000V AC/DC Voltage, 10A AC/DC Current, 60 MOhms Resistance
True RMS auto-ranging to 1000V
Low impedance LoZ mode
Large reverse contrast LCD
CAT III 1000V and CAT IV 600V
Pros
- LoZ mode identifies and eliminates ghost or stray voltages
- Highest voltage range here at 1000V AC and DC
- Large reverse contrast LCD readable in bright and dark conditions
- True RMS plus temperature and capacitance
- Lead holders kickstand and magnetic hanger options
Cons
- Highest cost in this comparison and hard to justify for light household checks
- Largest and heaviest body at 345 g and over 10 inches
- Thin owner feedback base of 396 reviews
The MM720 is the same tool as the MM420 with two meaningful upgrades, and the reason to buy it is one specific feature. Low impedance mode, usually written LoZ, changes the meter’s input resistance so that a phantom voltage collapses to nothing. That turns “is this wire actually live or am I seeing capacitive coupling from a neighbouring conductor” from a guess into an answer.
This is the most common source of confusion for new homeowners, and the reason it appears on this list. Without LoZ, a disconnected cable run near a live line can read 30 or 40 volts, an owner will reasonably conclude the wire is energised, and the diagnostic goes in exactly the wrong direction. With LoZ, that reading drops to near zero and you know the circuit is genuinely dead.
The other upgrade is range and safety category. It measures AC and DC voltage to 1000V, 10A AC and DC current and 60 MOhms resistance, and is rated CAT III 1000V and CAT IV 600V. If you have a subpanel, a detached garage, a heat pump or any equipment that might be fed from a feed rather than a branch circuit, that rating is the difference between a meter that is appropriate and one that is not.
The display is a large reverse-contrast LCD that stays readable in bright daylight and in the dark, which addresses the biggest complaint about the MM420. Continuity, temperature, capacitance, frequency and duty cycle and diode testing are all present, and the back has the same lead holders, kickstand and magnetic hanger options.
Do I actually need LoZ for a house?
If you only test outlets, switches and fixtures, no. LoZ earns its keep when you trace cable through walls, work on an older home with unpredictable wiring, or test a disconnected circuit and need certainty that it is dead before you touch it. That last scenario is a safety scenario, not a convenience one, and it is why we would rather explain this feature than skip it.
The reverse-contrast display is the other reason to step up. If you regularly work outside or in daylight, the MM420’s backlight timeout will frustrate you within a week, and a screen that needs no backlight removes the whole problem.
What do you give up by buying it?
Size and cost. At 345 g and over 10 inches long, this is the largest meter in the comparison, and it is the hardest to justify if your testing stops at checking a receptacle. The other honest caveat is the review base: 396 reviews is thin, so there is less long-term owner commentary than the budget options have, and less evidence about how these fuses and boards age.
Reviewers are split on that, with the consensus that it earns its price for people who trace live circuits or need the 1000V range and not for light household use. We agree. Buy the MM420 for a normal house, and step up to the MM720 if you are chasing ghost voltage or working on anything fed like a service.
10. Neoteck VC837 6000-Count True RMS – Best Lightweight Option
Neoteck 6000 Counts True RMS Digital Multimeter,Auto Range Multimeter
True RMS 6000 counts auto-ranging
DC voltage 600mV to 600V
CAT III 600V with dual fuses
Only 195 g
Pros
- Owners report it competes with meters several times its price
- True RMS improves readings on distorted AC signals
- Compact and light at 195 g with a rugged feel
- Instructions are straightforward
- Uses standard AA batteries
Cons
- Smallest review pool here at 465 reviews
- Supplied screwdriver-style probe accessory is thin and of limited use
- Lowest sales rank in the comparison
- Carry case and rear stand are basic
The Neoteck VC837 is the smallest and lightest meter in this comparison at 195 g, and it carries the only published accuracy figures in the entire group. DC voltage from 600mV to 600V is rated at plus or minus 0.5 percent plus 4 digits, and AC voltage from 6V to 600V at plus or minus 0.8 percent plus 6. DC current from 600 microamps to 10A is rated at plus or minus 1.0 percent plus 5, with AC current at plus or minus 1.5 percent plus 5.
Most listings in this category publish no tolerance at all, so having a real number to check against is more useful than it first appears. If you ever want to know whether a reading is trustworthy, or compare this meter against another, those figures are the only way to know.
Coverage is complete: AC and DC voltage and current, resistance, continuity, diode, temperature, capacitance, frequency and duty cycle, all at 6000 counts with auto-ranging and a manual override. There is a one-key data hold, a backlit display, a built-in flashlight and a loud continuity buzzer, which is genuinely loud and useful when you are tracing a cable in a wall.
It is CAT III 600V rated with dual fuses and full-range overload protection, takes standard AA batteries, and ships with a carrying case and a rear stand. Reviewers frame it as a capable meter that punches above its tier, with several explicitly comparing it to more expensive models they had considered and could not justify.
Is the 195 g weight a real advantage?
For overhead and confined work, yes. At less than seven ounces it will not pull your arm down while you hold probes on a ceiling junction, and it fits in a chest pocket or a tool bag without dominating it. The AstroAI 4000-count at 219 g is the only competitor close to this, and between the two you would take the Neoteck for the additional resolution and the published tolerances.
Flashlights and backlights are becoming standard in this tier, and both are present here. The flashlight is on the body rather than the screen, which is the right call when you are lighting a cavity rather than reading a number.
What should hold you back?
Evidence. At 465 reviews this has the smallest owner base in the comparison and the lowest sales rank, which means the least long-term history. That matters for a tool you expect to keep for a decade, and it is the reason this ranks tenth rather than higher, despite 78 percent five star ratings and genuinely good owner feedback.
Also worth noting: the supplied screwdriver-style probe accessory is thin and of limited use, and the case and stand are basic. The 18-month warranty is longer than the one year offered on some rivals, which is a small plus. If you want the published accuracy figures and the lightest body, take it. If you want the deepest evidence base, the AstroAI 6000-count at the top of this list is the safer bet.
Buying Guide: How to Choose a True RMS Multimeter
Spend your money on the specification, not the logo. These are the six decisions that actually change what a meter can do for you.
CAT ratings in plain English
CAT ratings describe where in your electrical system you will be measuring, and how much energy a fault can release. CAT II is plugged-in loads and appliance work. CAT III is distribution wiring, which in a house means your panel and every branch circuit running from it. CAT IV is the service entrance itself, upstream of the main breaker.
For almost all homeowner work, CAT III 600V is the correct specification and CAT III 1000V is comfortable headroom. A meter rated only CAT II, or one with no stated category at all, is not appropriate for panel work, whatever else it does well. Meters with CAT IV 600V on the label, like the KAIWEETS models and the Klein MM720, give you the option to work closer to the service without crossing that line.
What counts actually mean
Counts describe how many digits the meter can display. A 4000-count meter shows up to 3999, a 6000-count meter up to 5999, and the FNIRSI DMT-99 in this list runs to 9999. More counts means finer resolution, so a voltage that sits at 118.6 on a 4000-count meter is easier to see drift on than the same voltage on a 2000-count one.
For household work the difference is minor, and for readings above 10V it is almost irrelevant. Counts start to matter when measuring low voltages, small resistance values or slowly changing signals, which is why electronics and automotive users care and outlet testers do not. Do not let a higher count figure persuade you to buy a meter that lacks true RMS.
LoZ mode and ghost voltage
Ghost voltage is a phantom reading produced by capacitive coupling between a de-energized wire and a nearby live one. A standard meter has very high input resistance, which is what allows the coupling voltage to show up at all, and it will happily display 40V on a circuit that is genuinely safe. LoZ mode drops the input resistance so the phantom collapses, giving you a trustworthy zero.
This is the single most useful feature on this list for anyone tracing cable or working on an older home, and only the Klein MM720 among these ten has it. If your diagnostic work involves cutting into a wall or confirming a circuit is dead, prioritise it. A second, cruder workaround is to test the same wire with a fluorescent or incandescent lamp nearby, since a real 120V reading will light it and a ghost will not.
Non-contact voltage detection
NCV uses a small sensor to sense the electric field near a conductor without touching it, and it is the fastest way to identify which wire in a box is live. Treat it as a screening tool only, never as a confirmation that a circuit is dead. The sensor response varies with conductor orientation, insulation thickness and how the meter is held, and several meters in this group have owners reporting inconsistent behaviour.
Always confirm with a probe on a known-good circuit first, so you know the meter is working, and then confirm again on the circuit in question. Confirming on a circuit you believe is live is the whole safety argument, and it takes two seconds.
Auto-ranging, backlight and data hold
Auto-ranging means the meter picks the range itself. Manual ranging means you choose. For a beginner, auto-ranging removes an entire category of error, and only the Crenova and Neoteck give you both, which is useful if you ever chase a drifting resistance reading. Buy auto-ranging and do not think about it again.
A backlit display matters more than expected because a surprising amount of electrical work happens in basements, attics and crawlspaces. Every meter here has one except the Klein MM420 relying on its high-contrast screen, and the recurring complaint across this group is a backlight that times out. Hold down the backlight key to toggle it on permanently where the manual allows, and carry a small flashlight as backup.
Data hold freezes a reading so you can look at it with both hands free, and Min Max Average recording captures peaks over time. Min Max is the more valuable of the two and is worth choosing a meter for if you chase intermittent faults.
What you give up at each tier
Entry tier meters give you true RMS, auto-ranging, 6000 counts, a backlight, NCV and the core measurement set. That covers every outlet, switch, breaker and fixture job in a house. You give up published accuracy tolerances, LoZ, high safety categories, a solid warranty and any long owner history.
Mid tier branded meters such as the Klein MM420 add a recognised brand name, a documented drop test, safety-capped leads, a thermocouple in the box and ceramic fuses you can reach. Accuracy on household circuits is effectively the same, so you are paying for build quality and support rather than for better readings.
Upper tier meters such as the Klein MM720 add LoZ, higher safety categories, 1000V range and reverse-contrast displays. You are paying for the ability to work closer to the service and to trace live circuits with certainty. If you never do that work, this tier is wasted money.
One more category to avoid for household use: thermal imaging and insulation resistance meters. They are excellent professional instruments, they cost several times as much, and a homeowner has no use for a megohmmeter. If a tool is advertised as an insulation tester, it is not a multimeter.
What Homeowners Actually Use a Multimeter For
A multimeter is a general-purpose electrical tester that measures voltage, current and resistance, and the diagnostic value is in using it to answer a yes or no question. These are the six jobs that come up in real houses.
1. Checking that an outlet is wired correctly. Set the meter to AC voltage, 200V or more, and measure across the hot and neutral terminals with the circuit energised. You should see approximately 120V. Then measure from each terminal to ground, and the readings should be similar. Reversed polarity, where hot and neutral are swapped, still gives you 120V across the pair but shows clearly when you test each leg to ground.
2. Finding a dead or half-live outlet. A dead outlet on a circuit that still has power elsewhere usually means an open connection, a backstabbed wire or a failed receptacle. A half-live outlet, one where one slot works, points at a loose neutral or a broken contact. Measuring voltage at the receptacle terminals tells you whether the fault is upstream or at the device.
3. Confirming a breaker is the problem. With the panel cover on and the circuit identified, measure voltage on the load side of the breaker. Voltage present with the breaker on means something downstream is drawing when it should not be. Always measure line to neutral rather than neutral to ground, and expect a few volts of offset on an overloaded neutral.
4. Testing a fuse, switch or break in a wire. Switch to continuity, hold the buzzer setting, and touch the probes to both ends. A good fuse, a closed switch or an intact wire beeps continuously. This is the fastest way to narrow a wiring problem down to a specific part, and it is why a loud buzzer matters more than it seems.
5. Checking a light fixture and its bulb. With the breaker on, test for voltage at the fixture. Present voltage with a dead bulb points at the socket. No voltage with the switch on points at the switch, the breaker or the wiring. Two minutes with a meter saves replacing parts that were never the problem.
6. Diagnosing HVAC and appliances. Measure supply air temperature with the included thermocouple and compare it to return air. Then measure the amperage the blower or compressor draws and compare it to the nameplate. A blower pulling more current than rated points at a failing capacitor or a jammed squirrel cage, and this is where true RMS measurement stops being optional.
Add one more if you own a modern home: measuring current draw on variable-speed equipment, EV chargers, induction cooktops and LED lighting. Those loads are non-sinusoidal, which is the whole reason this guide is about true RMS meters in the first place.
Safety: What You Can and Cannot Diagnose Yourself
A multimeter is safe when used as intended and dangerous when used as a tool for doing electrical work. The distinction is not about skill, it is about the system you are touching.
De-energize before you touch anything. Switch off the breaker, then confirm the circuit is dead at the point of work using a known-good method. Test your meter on a circuit you know is live first, so you know it is working, then test the circuit in question. This two-step check is the single most important habit in this whole article.
Use LoZ or a lamp when reading a suspected dead circuit. Ghost voltage will happily show you 40V on a wire that is not energised. LoZ mode collapses it, and a fluorescent or incandescent lamp held against the wire will only light on a genuine 120V reading.
Wear the gear. Safety glasses when probing in a panel, insulated gloves for anything energized, and shoes with a non-conductive sole. Keep one hand free when working near live parts so you can pull away quickly.
Never work inside the panel beyond flipping a breaker. Removing a panel cover, working on the bus bars or landing a feeder is work for a licensed electrician in every jurisdiction in the United States. There is no homeowner exception, and no meter feature makes it safe. The same applies to opening a motor or appliance control box, and to any service entrance work.
Know when to stop and call an electrician. Burning smells, buzzing or scorching, breaker panels that are warm or discoloured, aluminum wiring, cloth or rubber insulated cable, two-prong ungrounded outlets you intend to use a grounded tool on, aluminium branch wiring, repeated breaker trips, and any circuit you cannot positively identify all belong in the stop category. So does anything where your reading contradicts what you expect and you do not know why.
A multimeter tells you what is happening electrically. It does not tell you whether a wire is undersized, whether a panel is properly bonded, whether an outlet is correctly grounded, or whether your panel has capacity for a new circuit. Those require inspection that a homeowner should not attempt.
Frequently Asked Questions
What is the difference between a standard multimeter and a true RMS multimeter?
A standard multimeter is average-responding, meaning it assumes a clean sine wave and uses a cheaper sensor calibrated to that assumption, so it can read 20 to 30 percent low on distorted signals. A true RMS multimeter samples the waveform many times per cycle and calculates the actual effective value, so it stays accurate on non-sinusoidal loads such as dimmers, LED drivers, variable-speed motors and most modern HVAC equipment. On plain 120V lighting and receptacle circuits the difference is small.
What is a good affordable multimeter?
The AstroAI 6000-count true RMS meter in our number one position is the affordable answer, combining true RMS on both AC voltage and AC current with 6000 counts, auto-ranging, temperature and capacitance, and a double ceramic fuse, with more than 20000 owner reviews behind it. If you want a recognised brand instead, the Klein Tools MM420 covers every household measurement with a CAT III 600V rating and safety-capped leads included.
Which is better, Klein or Fluke, for home use?
For household electrical work Klein is the better value, and for service and commercial work Fluke remains the stronger choice. The Klein MM420 gives you true RMS, a CAT III 600V rating, a tested 6.6 foot drop rating and safety-capped leads at a fraction of the flagship Fluke cost. The Fluke advantage shows up in build refinement, accessories and a longer service-industry track record rather than in any difference you would see on an outlet reading.
Which Fluke multimeter is best for homeowners?
Homeowners shopping the Fluke line should look at the 115 and 117 for true RMS with auto-ranging, and the 15B+ for a lower-cost entry point. Be aware that not every Fluke model measures true RMS, a point that comes up repeatedly in electrical forums, so confirm the RMS specification on the model page rather than assuming it from the badge. Owners frequently report that a mid-range Fluke is all a house needs and reserve the flagship models for service work.
How many counts do I need in a multimeter?
For household work, 4000 counts is enough and 6000 counts is comfortable. Counts describe how many digits the display can show, so more counts mean finer resolution, but the difference only becomes visible when measuring low voltages, small resistance values or slowly changing signals. Anything above 6000 counts mainly benefits electronics and automotive users. Do not let a high count figure outweigh a missing true RMS specification.
Conclusion: Which True RMS Multimeter Should You Buy?
The best true RMS multimeters for homeowners are all in this guide, but only one of them belongs in most people’s hands. The AstroAI 6000-count model takes our editor’s choice because it measures true RMS on both AC voltage and AC current, covers every household measurement from temperature to capacitance, uses ceramic fuses, and has more owner reviews pointing the same direction than anything else we evaluated.
Pick differently only if your work demands it. Buy the Klein Tools MM420 if you want a brand an electrician recognises, and the MM720 if you trace live circuits or need low impedance mode to defeat ghost voltage. Buy the KAIWEETS HT118A if you work on cars and low-voltage controls as much as on house wiring, and the FNIRSI DMT-99 if you want to see waveforms rather than just numbers. Everyone else should start at number one and add a case.
Whatever you choose, confirm three things on the spec sheet before you buy: true RMS on AC voltage and AC current, a CAT III 600V safety rating or better, and ceramic rather than glass fuses. Those three checks eliminate most of the wrong purchases in this category. For more hands-on tools coverage, start with our DIY gutter guard roundup and our log splitter picks, then come back when the meter is in your hand and ready for 2026.
