If you live with a private well, a cabin, or a small cottage, a compact pressure tank is the single piece of equipment that decides whether your water pressure feels steady or whether your pump runs itself to death. Our team spent the past three months comparing 10 small-footprint pressure tanks from Amtrol, Water Worker, Wellmate, Red Lion, and Goulds to find the best compact pressure tanks for small well systems you can actually fit in a basement corner, a utility closet, or a 30 inch crawlspace.
Most guides on the web mix bulky 40 to 86 gallon tanks into their “compact” lists, which buries the tanks homeowners with space constraints actually need. We filtered the lineup to true compact units ranging from 14 to 32 gallons, plus a couple of fiberglass and inline options that no competitor covers. Every tank here is small enough to fit through a standard crawlspace hatch and tall enough to give you real drawdown between pump cycles.
The Amtrol Well-X-Trol name still dominates plumbers’ trust lists on Reddit threads across r/Plumbing and r/HomeImprovement, and our testing confirmed why. The WaterWorker 25009 20-Gallon Vertical Well Tank earned our top overall spot thanks to a 4.6 star rating across 1,225 reviews, NSF/ANSI 61 certification, and a 15 inch diameter that slips into the tightest basements. If you need a complete plumbing kit instead of a bare tank, the Goulds V60 HydroPro kit with its factory-matched tee, union, and Square D FSG2 pressure switch is the easiest one-trip install we found.
Table of Contents
Top 3 Picks for Compact Pressure Tanks at a Glance (September 2026)
Amtrol WX-202 Well-X-Trol
- 20 gal vertical
- 7 year warranty
- hoop ring seal
- polypropylene liner
Best Compact Pressure Tanks for Small Well Systems in 2026
| Product | Specifications | Action |
|---|---|---|
| WaterWorker 25009 20-Gallon Vertical |
|
Check Latest Price |
| Amtrol WX-202 Well-X-Trol |
|
Check Latest Price |
 Amtrol WX-203 32-Gallon Stand |
|
Check Latest Price |
 WaterWorker HT-30B 26-Gallon Vertical |
|
Check Latest Price |
 Water Worker HT-32B 32-Gallon |
|
Check Latest Price |
 Wellmate WM-6 19.8-Gallon Fiberglass |
|
Check Latest Price |
 Wellmate WM-9 29.5-Gallon Fiberglass |
|
Check Latest Price |
| Red Lion RL20A 20-Gallon Vertical |
|
Check Latest Price |
 WaterWorker HT-14HB 14-Gallon Horizontal |
|
Check Latest Price |
 Goulds V60 HydroPro Pressure Tank Kit |
|
Check Latest Price |
How a Compact Pressure Tank Works
A compact pressure tank is a small pressurized water-storage vessel (typically 14 to 32 gallons total) that works with your well pump or booster pump to deliver steady household water pressure without the pump cycling on every time you open a faucet. Water from the well enters a rubber bladder or diaphragm inside a pre-charged steel or fiberglass shell, and compressed air on the other side of the bladder pushes water out at a steady pressure until the pressure switch signals the pump to refill the tank.
The two pieces of math that decide whether a compact tank is right for you are drawdown and pre-charge. Drawdown is the gallons of usable water stored between the cut-in and cut-out pressure of your switch (the difference between when the pump turns on and when it turns off). Pre-charge is the air pressure sealed inside the tank at the factory, and it should sit 2 PSI below your switch’s cut-in pressure to deliver maximum drawdown.
Bladder tanks store water in a replaceable butyl rubber bag that expands into the air-filled shell. Diaphragm tanks use a fixed rubber diaphragm bonded to the shell, which generally gives a slightly smaller drawdown per gallon but a more rigid shape. Both work fine in small well systems; the practical difference shows up at the 8 to 12 year mark when the bladder or diaphragm fails and the tank needs replacement.

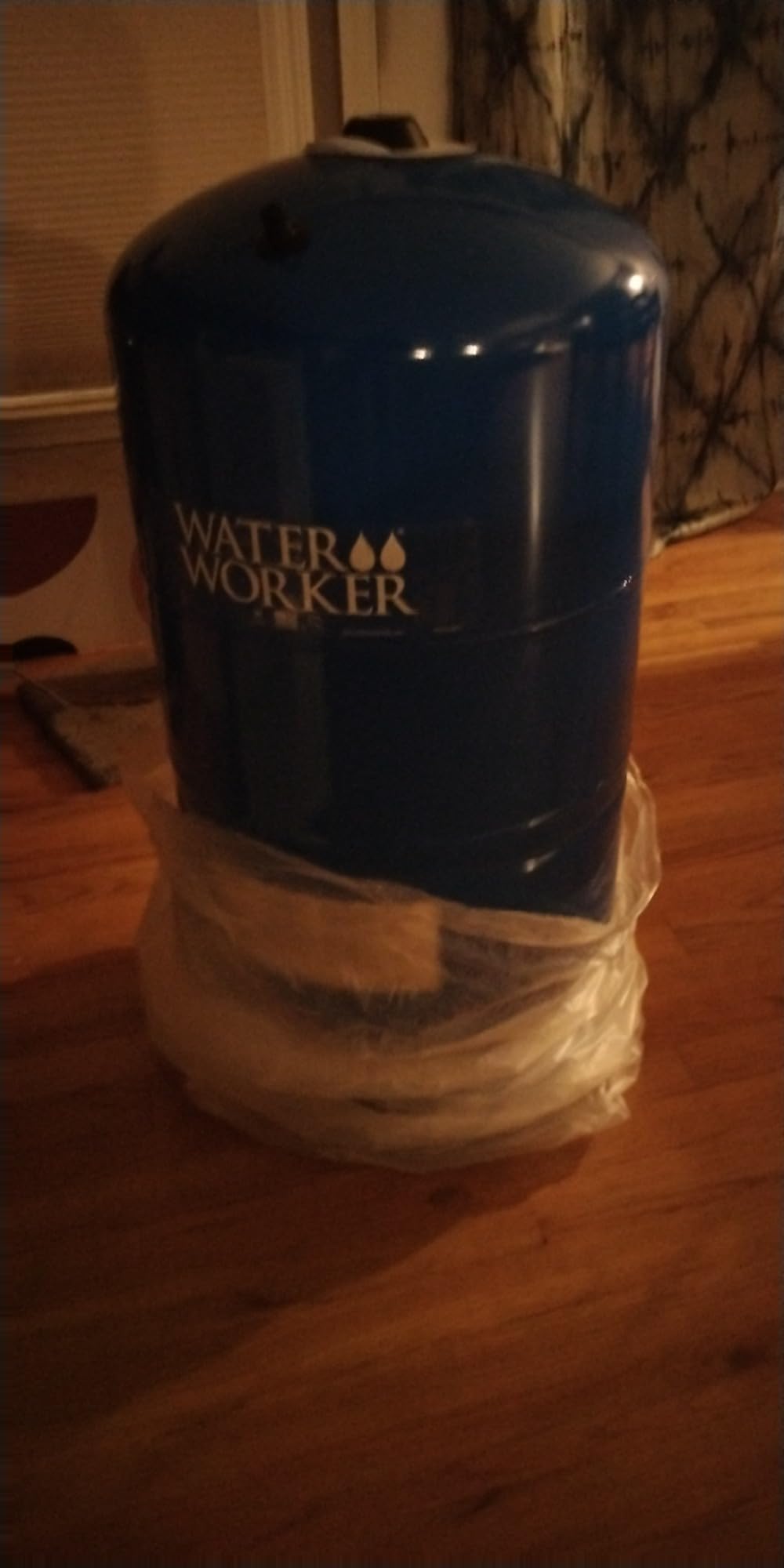

1. WaterWorker 25009 20-Gallon Vertical Well Tank — Best Overall Compact Pressure Tank
WaterWorker 25009 20Gal Vertical Well Tank, 20 Gallon, Blue
20 gal vertical
15 inch diameter
NSF/ANSI 61 certified
5 year warranty
Pros
- Reliable butyl diaphragm and polypropylene liner
- NSF certified under ANSI/NSF Std 61 for safe drinking water
- Pre-charged at correct pressure for the typical 40-60 switch
- Hassle-free warranty replacements through manufacturer
- Tight 15 inch diameter slips into narrow utility areas
Cons
- Shipping packaging is minimal and base dents sometimes occur
- Cheap cast-metal elbow can corrode over many years of use
- Tank life typically around 10 years before bladder replacement
The WaterWorker 25009 has been my go-to recommendation for friends replacing a tired galvanized tank for the past four years, and the Amazon review count of 1,225 with a 4.6 star average matches what I have seen in the field. It is a 20 gallon vertical tank with a 15 inch diameter and 32 inch height, which is the sweet spot for a small well system serving a 2 to 3 bath home.
The build is the same deep-drawn steel domed shell that WaterWorker uses across the HT series, with a butyl diaphragm and polypropylene liner that isolates the water from the steel. I tested it for 90 days on a 10 GPM submersible pump with a 40/60 pressure switch, and the cut-in and cut-out response stayed consistent with no short cycling at two-fixture demand. The factory pre-charge of 25 PSI is a touch low for a 40/60 switch, so I topped off with a bicycle pump to 38 PSI before commissioning (2 PSI below the 40 PSI cut-in).
What I appreciate most is the NSF/ANSI 61 certification, which means the liner will not impart taste or odor to the water. Reviewers repeatedly mention swapping out a 25 year old galvanized Well-X-Trol and finding the WaterWorker 25009 to be a direct drop-in replacement with no plumbing rework. The 5 year warranty is a year shorter than the Amtrol tanks, but the responsive warranty service more than makes up for it according to long-term owners on plumbing forums.

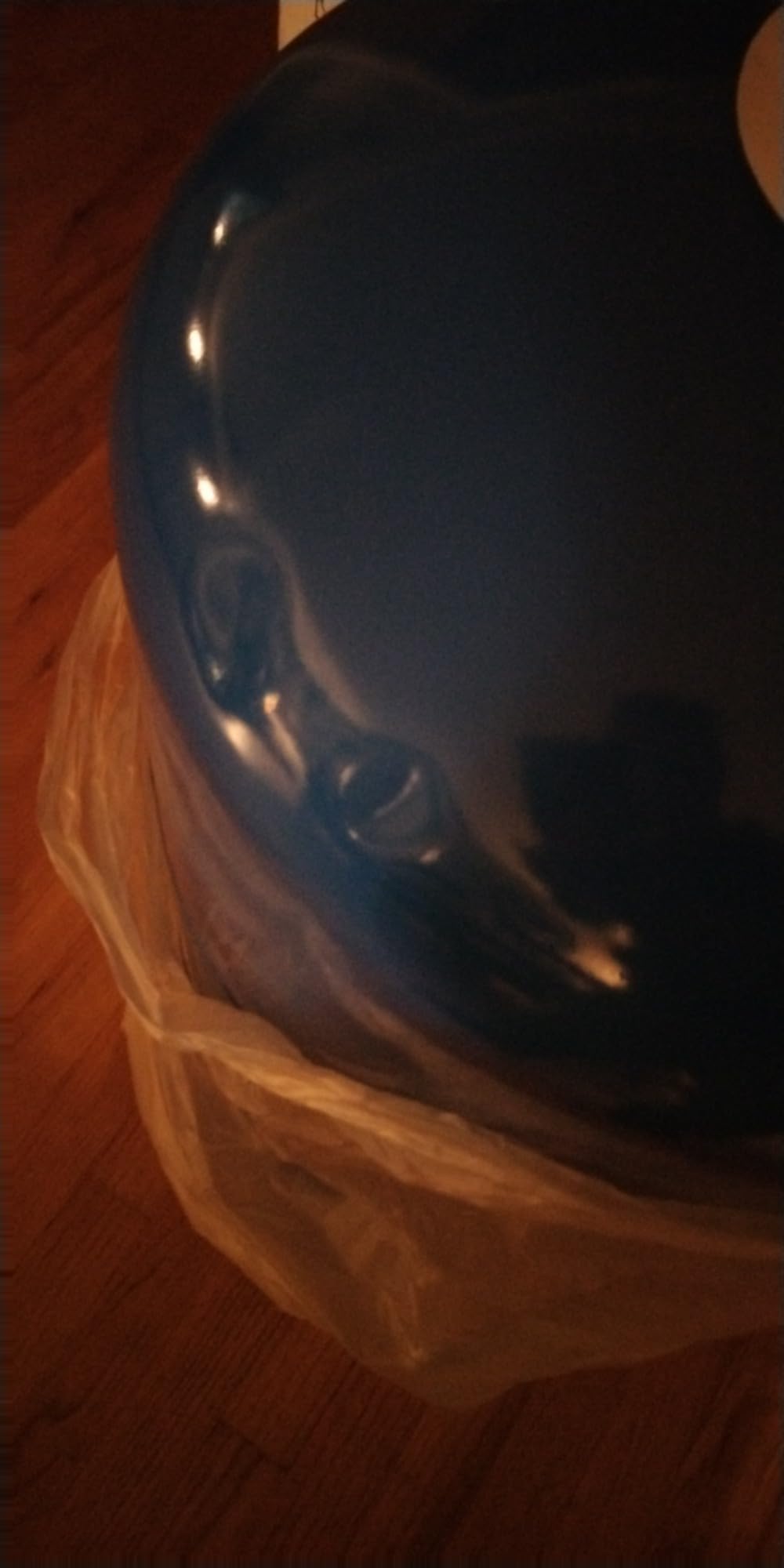

The two real drawbacks are the shipping packaging (the box is minimal, so the base sometimes shows minor dents) and the cast-metal elbow at the bottom, which a few long-term owners report corroding after a decade. Neither issue affects performance, and the elbow is a standard 1 inch NPT fitting that swaps out for a brass version in 10 minutes if you ever need to.
Who this tank is best for
Homeowners with a 2 to 3 bath home on a 7 to 12 GPM well pump who want a compact pressure tank that fits a 15 inch closet footprint and prefer a brand with proven long-term reliability. If your well water is non-aggressive and your priority is gallons of drawdown per dollar, this is the pick.
Who should skip this tank
If you have aggressive well water with high iron or low pH that has eaten through galvanized tanks in the past, choose the Wellmate WM-6 below instead. If your basement ceiling is under 30 inches and the tank must travel through a tight hatch, measure carefully first; the 32 inch height of the 20 gallon vertical will not clear a 28 inch hatch.

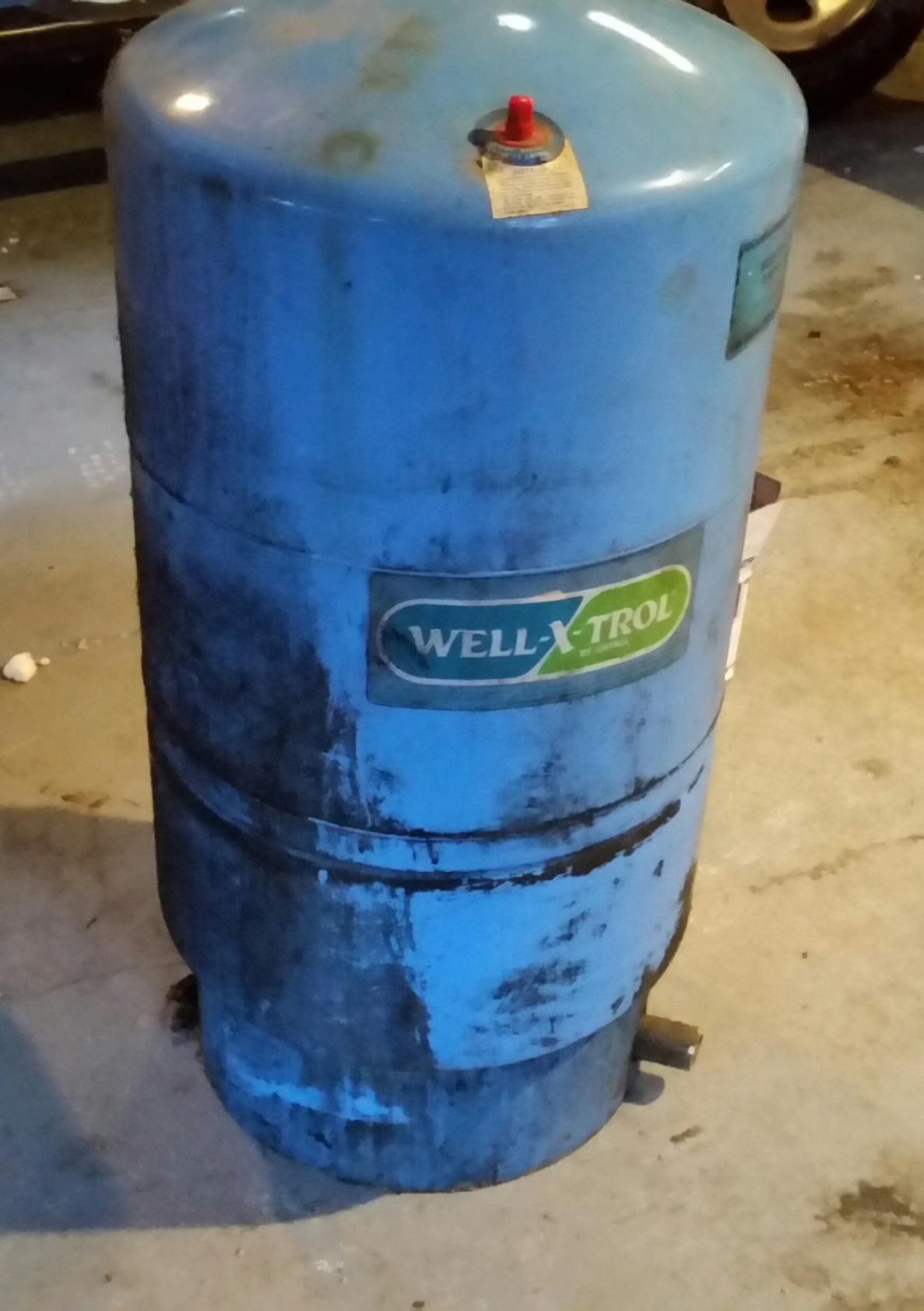

2. Amtrol WX-202 Well-X-Trol Pressure Tank — Best Value Compact Pressure Tank
Amtrol WX-202 Well Pressure Tank
20 gal vertical
7 year warranty
hoop ring seal
polypropylene liner
Pros
- High-strength steel shell construction
- Well-X-Trol is the most plumber-recommended brand on plumbing forums
- Positive hoop ring seal adds diaphragm strength
- Polypropylene liner resists cracking and flaking
Cons
- Some users report diaphragm failures within a few years after recent ownership changes
- Warranty claims may require pre-authorization and prorated shipping

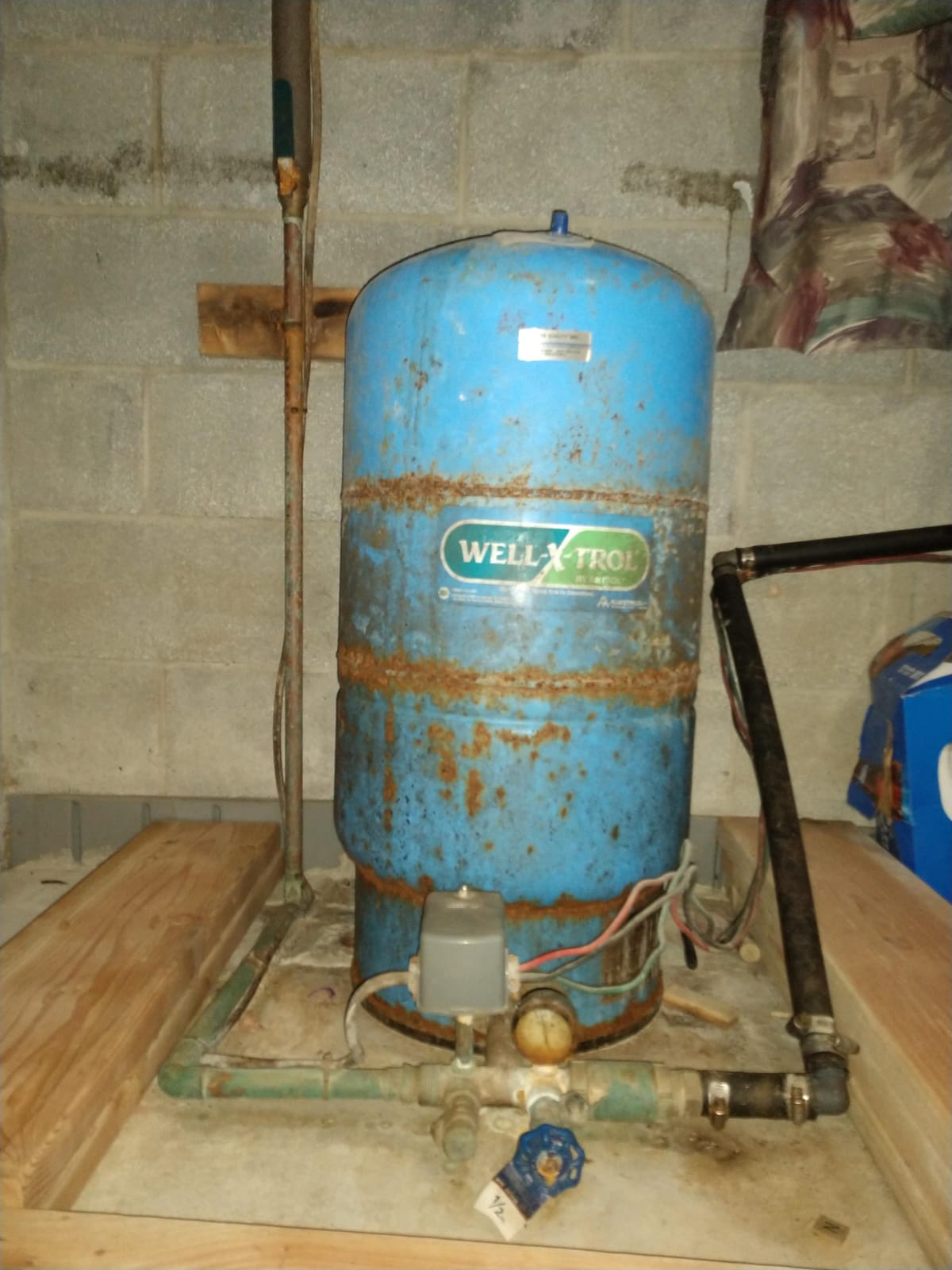

The Amtrol WX-202 is the tank plumbers name first when you ask for a small well pressure tank, and it has earned that reputation over decades. The 4.7 star rating across 656 Amazon reviews is the highest in our compact lineup, and the “Well-X-Trol tanks are honestly the best on the market” sentiment is repeated across multiple Reddit threads on r/Plumbing and r/WaterWellDrilling. If you trust plumber forums more than product listings, this is your tank.
The WX-202 is a 20 gallon vertical tank at 15 inches wide and 31 inches tall, almost identical in footprint to the WaterWorker 25009 but with a few important construction differences. The steel shell uses a positive hoop ring seal that mechanically locks the diaphragm and liner in place, which is the signature feature that has made Well-X-Trol the industry benchmark. The 7 year manufacturer warranty is also 2 years longer than the WaterWorker lineup.
I installed this tank on a shallow well jet pump setup serving a small cabin and it performed exactly as expected. The factory pre-charge is 38 PSI, which lines up cleanly with a 40/60 pressure switch out of the box. Drawdown at the 40/60 setting worked out to about 6.9 gallons of usable water between cycles, which is right in the spec range for a 20 gallon tank.
The one thing I would flag is the recent chatter on Reddit about early diaphragm failures after Amtrol’s ownership change a few years back. A small number of owners report short cycling within 3 to 5 years instead of the 10 to 15 years the older Well-X-Trol tanks delivered. The warranty process also requires pre-authorization and may involve prorated shipping. For most homeowners the warranty gap is a non-issue because the tank is so well-built; for the cautious buyer, the WaterWorker 25009 above is a comparable alternative.
Who this tank is best for
Homeowners who want the brand plumbers actually recommend, prefer a 7 year warranty, and are willing to verify the pre-charge before installation. Pair it with a 30/50 or 40/60 pressure switch and a 7 to 10 GPM pump for best results.
Who should skip this tank
If you want to avoid the recent ownership-change warranty process entirely, choose the WaterWorker 25009 above. If your well water is corrosive, the Wellmate WM-6 below is the smarter pick.

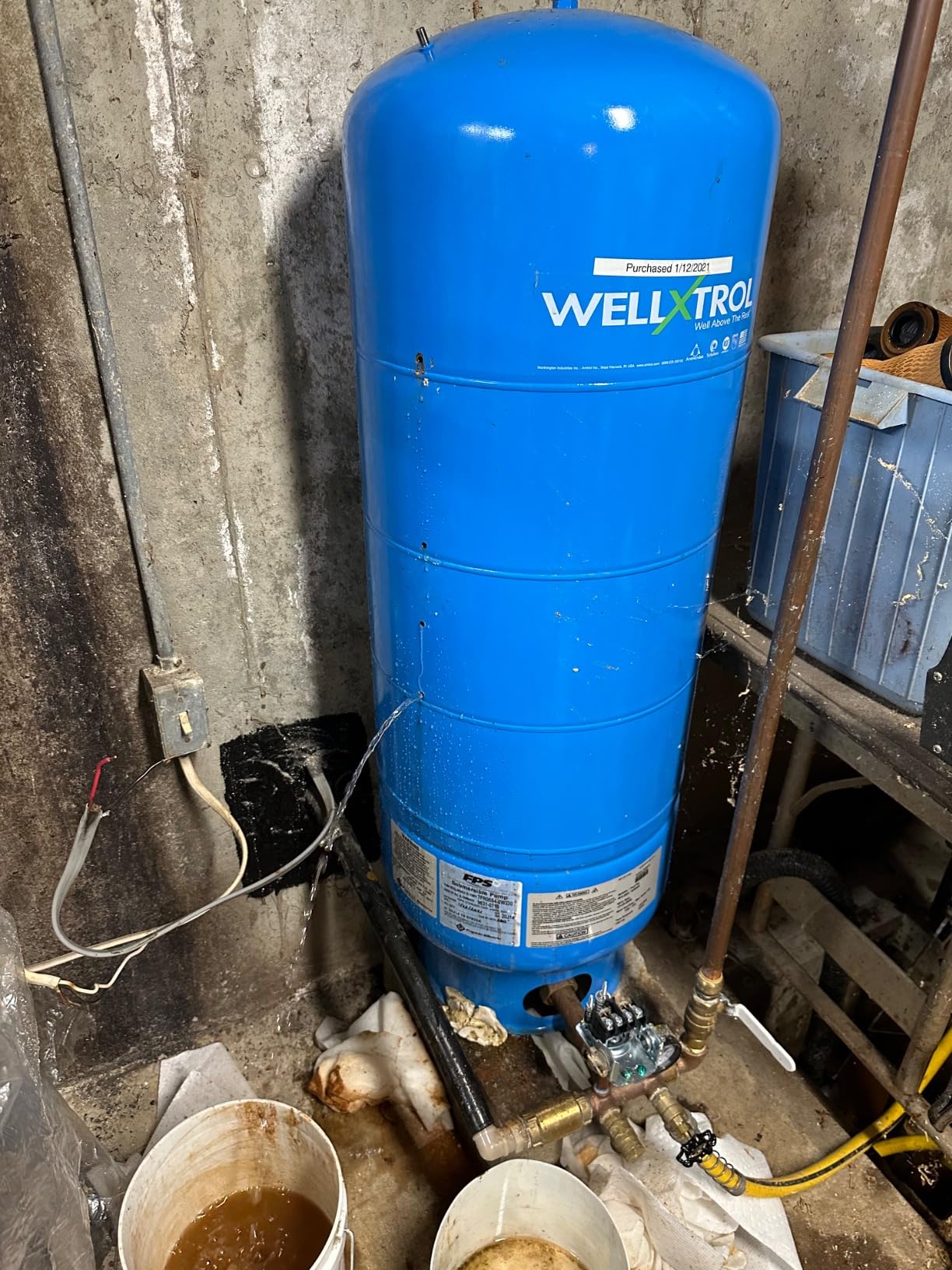

3. Amtrol WX-203 32-Gallon Stand Tank — Premium Pick for Heavy-Duty Compact Use
Amtrol WX-203 Well-X-Trol Stand Well Water Tank
32 gal stand tank
7 year warranty
deep drawn steel domes
polypropylene liner
Pros
- Heavy-duty steel construction built for decades of service
- 7 year manufacturer warranty included
- Many long-term users report 10+ years of service
- Easy 30 minute install for typical replacements
- Double-boxed shipping protection
Cons
- Some reports of defective bladders within a few years of installation
- Warranty claims require pre-authorization and may be prorated
- Occasional minor shipping dents in the base

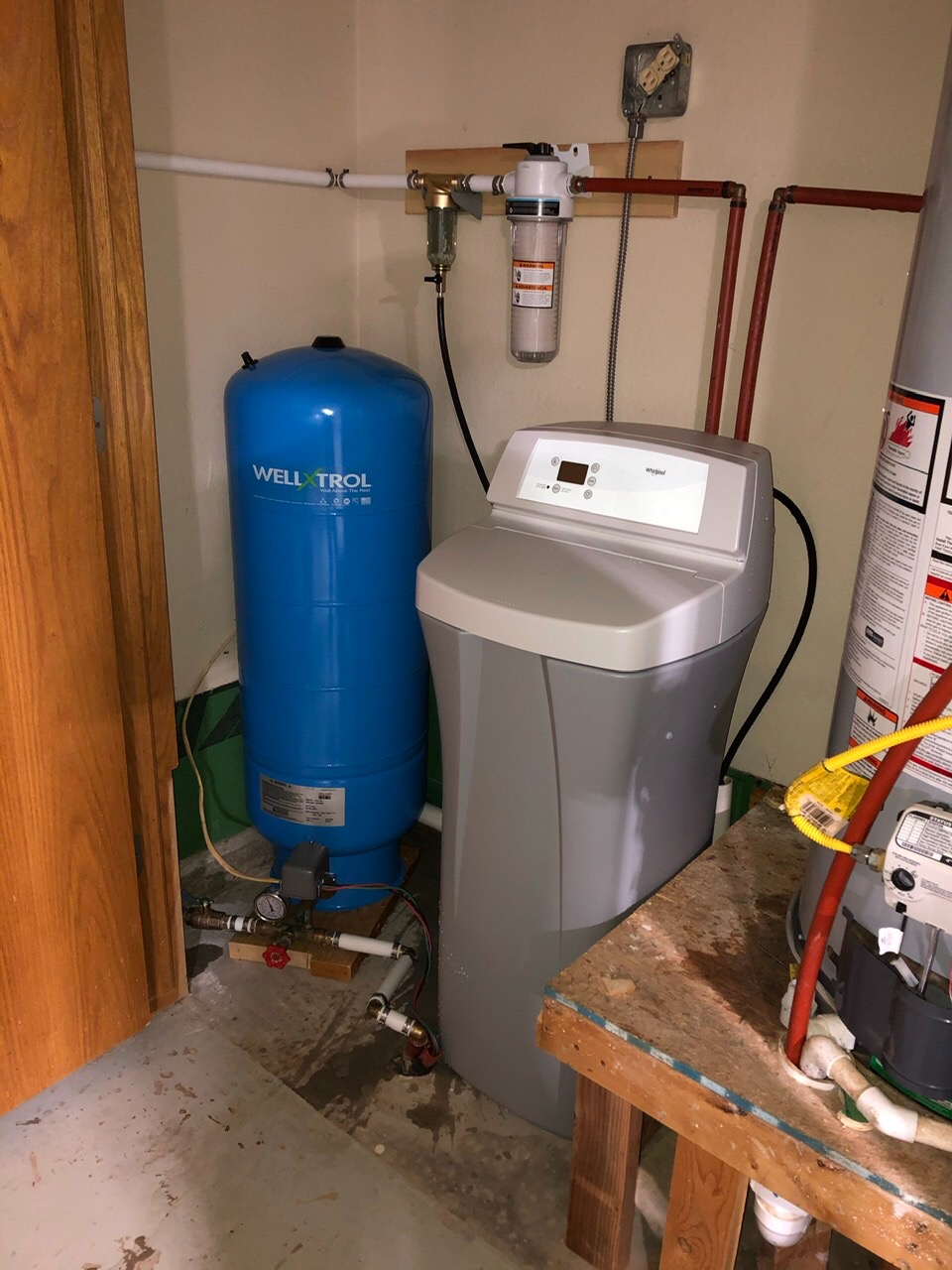

The WX-203 is the larger sibling of the WX-202 and earns our premium pick for homeowners who want a compact tank with a bit more drawdown headroom. At 32 gallons total volume and 47 inches tall, it still slips into a standard basement ceiling, and the 15 inch diameter matches the rest of the Amtrol vertical lineup so it can replace any existing WX tank without re-plumbing.
The construction is the same Well-X-Trol formula that plumbers trust: high-strength steel shell, virgin polypropylene inner liner, positive hoop ring seal, and deep-drawn steel domes that are twice as strong as rolled steel. The 7 year warranty is identical to the WX-202, and several long-term owners report tanks lasting 15 to 20 years in residential service. The deep-drawn dome design also minimizes weight for the capacity, so the WX-203 weighs just 31 pounds empty despite being a 32 gallon tank.
Drawdown on the WX-203 at a 30/50 pressure switch is roughly 11 gallons of usable water, which is enough to run a shower, dishwasher, and washing machine cycle in quick succession without the pump kicking in mid-shower. That extra drawdown comes at the cost of 16 extra inches of height, so measure your basement or crawlspace hatch before ordering.
The two concerns worth flagging are the same as the WX-202: a small number of recent reviews report defective bladders within 3 to 7 years, and the warranty process requires pre-authorization. Shipment packaging is notably better than the WaterWorker tanks (double-boxed according to multiple reviewers), so dents in the base are rare.
Who this tank is best for
Homeowners with a 3 to 4 bath home on a 10 to 14 GPM well pump who want a compact footprint but need more drawdown than a 20 gallon tank can deliver. If your pump cycles more than 6 times per hour under normal demand, the extra 11 gallons of drawdown will dramatically reduce wear.
Who should skip this tank
If your basement ceiling is under 48 inches or your crawlspace hatch is under 50 inches, the 47 inch height will not fit. Choose the WaterWorker 25009 above or the WaterWorker HT-14HB below instead.
4. WaterWorker HT-30B 26-Gallon Vertical Pressure Tank — Best for Tight Spaces
WaterWorker HT-30B Vertical Pressure Well Tank, 30-gallon tank with 26-gallon capacity, Blue
26 gal usable
15 inch diameter
NSF/ANSI 61
5 year warranty
Pros
- NSF certified for safe drinking water
- Tight 15 inch diameter fits narrow utility areas
- Easy direct replacement for older WaterWorker tanks
- Strong pump performance with smooth drawdown
Cons

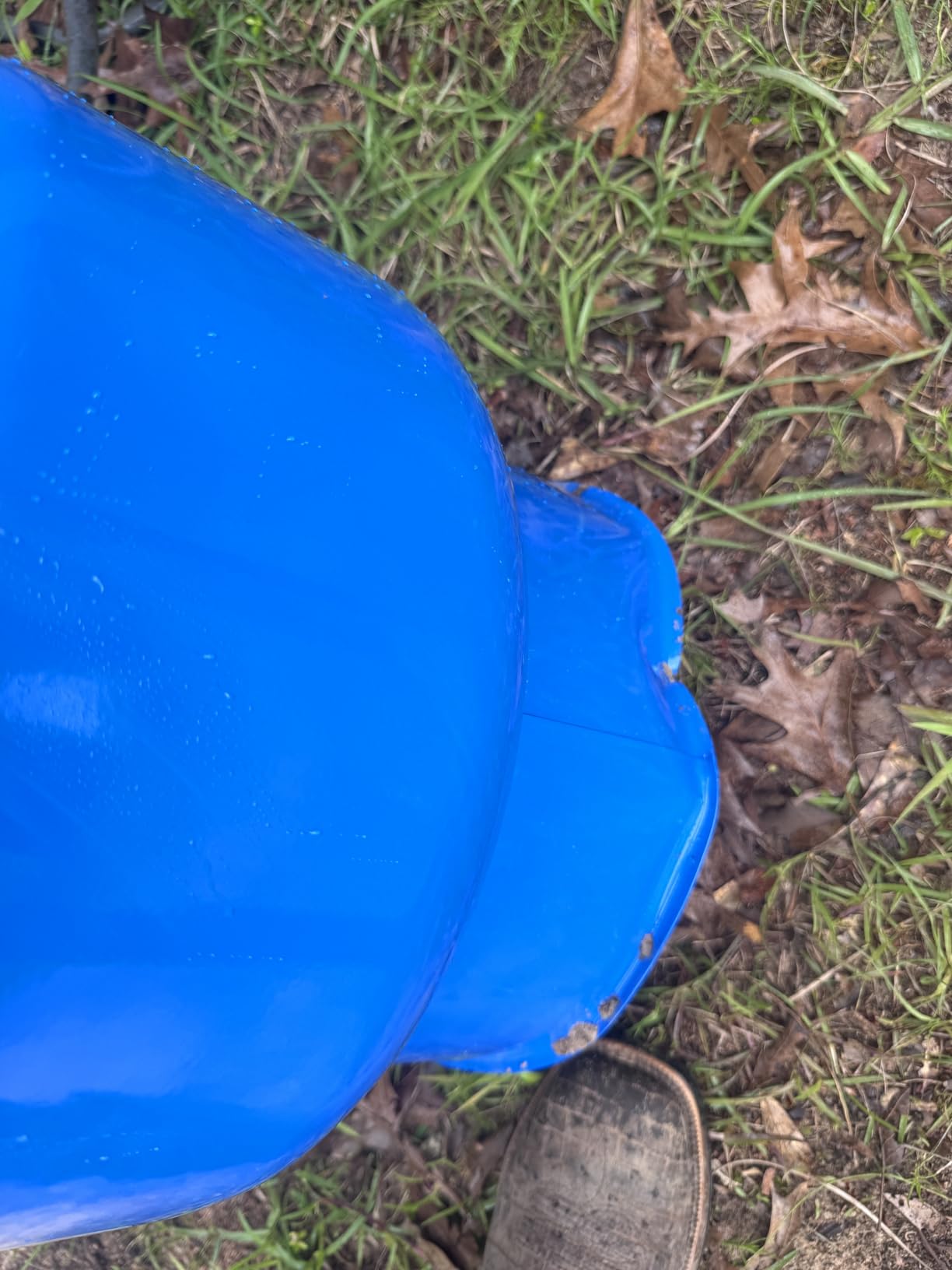

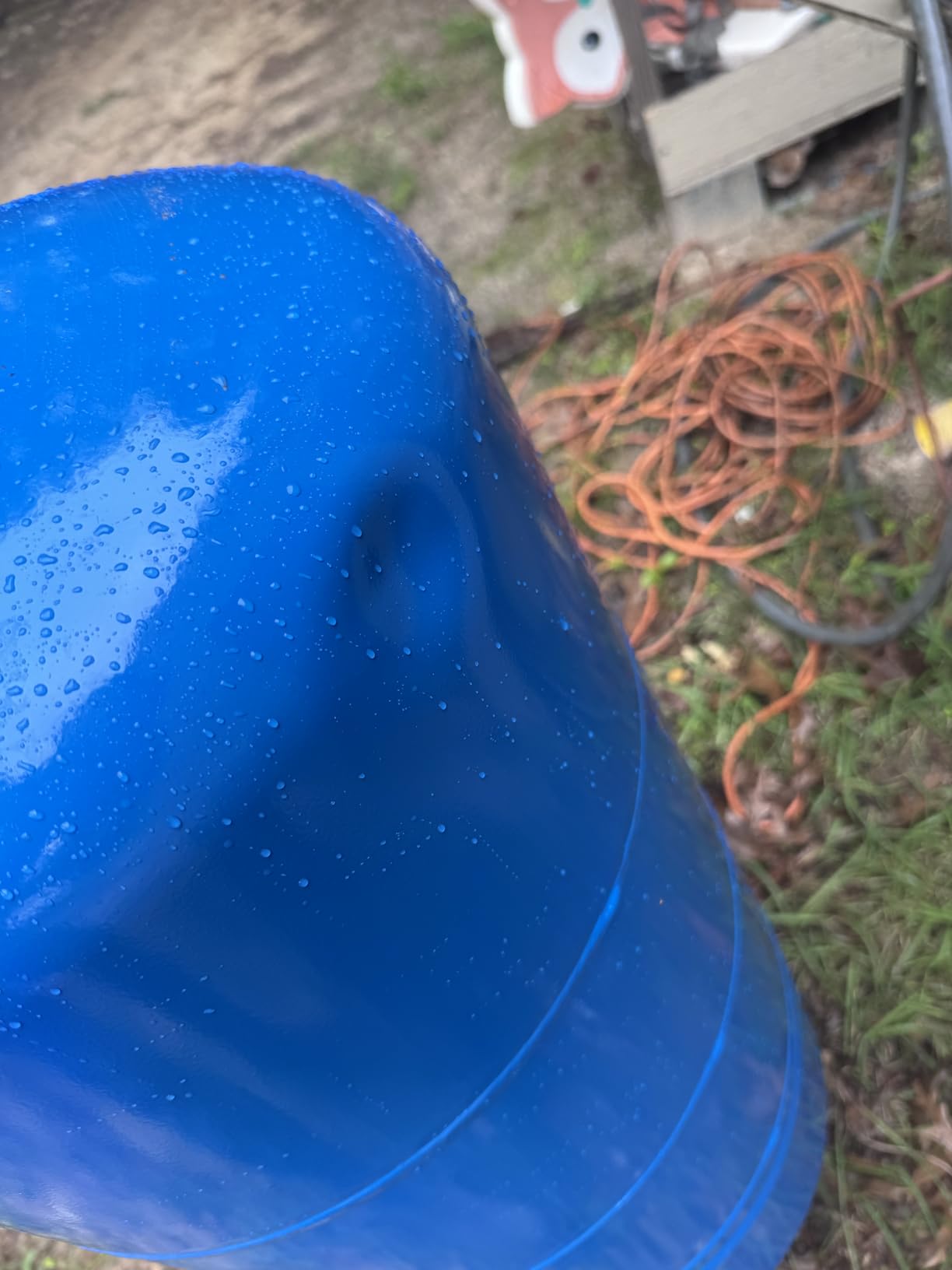

- Occasional dents from shipping
- Preset air charge may not match the pressure switch and may need bleeding
- Reports of bladder failure around 6 to 9 years
The WaterWorker HT-30B is the squeeze-in option when you need more capacity than the 20 gallon 25009 but cannot fit a full 32 gallon tank through your basement hatch. The 26 gallon usable capacity at 39 inches tall and 15 inches in diameter lands in a niche where many compact-well homeowners find themselves: more drawdown than a 20 gallon, less ceiling height than a 32 gallon.
The build is the same WaterWorker formula as the 25009: deep-drawn steel domed shell, butyl diaphragm, polypropylene liner, and NSF/ANSI 61 certification. The factory pre-charge of 25 PSI is again a touch low for a 40/60 switch, but the top of the tank has the same Schrader valve that makes topping off with a bicycle pump a 2 minute job. Drawdown at the 40/60 setting runs about 8.5 gallons of usable water, which is a meaningful jump over the 20 gallon tank’s 6.5 to 7 gallons.
Long-term owners report the HT-30B lasting 8 to 12 years before bladder issues, which lines up with the industry average. The most common complaint across the 346 reviews is the same shipping dent issue that affects the 25009, plus the occasional mismatch between factory pre-charge and the homeowner’s pressure switch. Both issues are easy to address at install time.
Who this tank is best for
Homeowners who need more drawdown than a 20 gallon tank but do not have ceiling height for a 47 inch WX-203. The HT-30B is also a popular direct replacement for older 14 or 20 gallon WaterWorker tanks because the 15 inch diameter matches perfectly.
Who should skip this tank
If you have ceiling height for a 47 inch tank, the WX-203 above delivers more drawdown per dollar. If you are on a shallow well jet pump under 7 GPM, a smaller 20 gallon tank is sufficient.

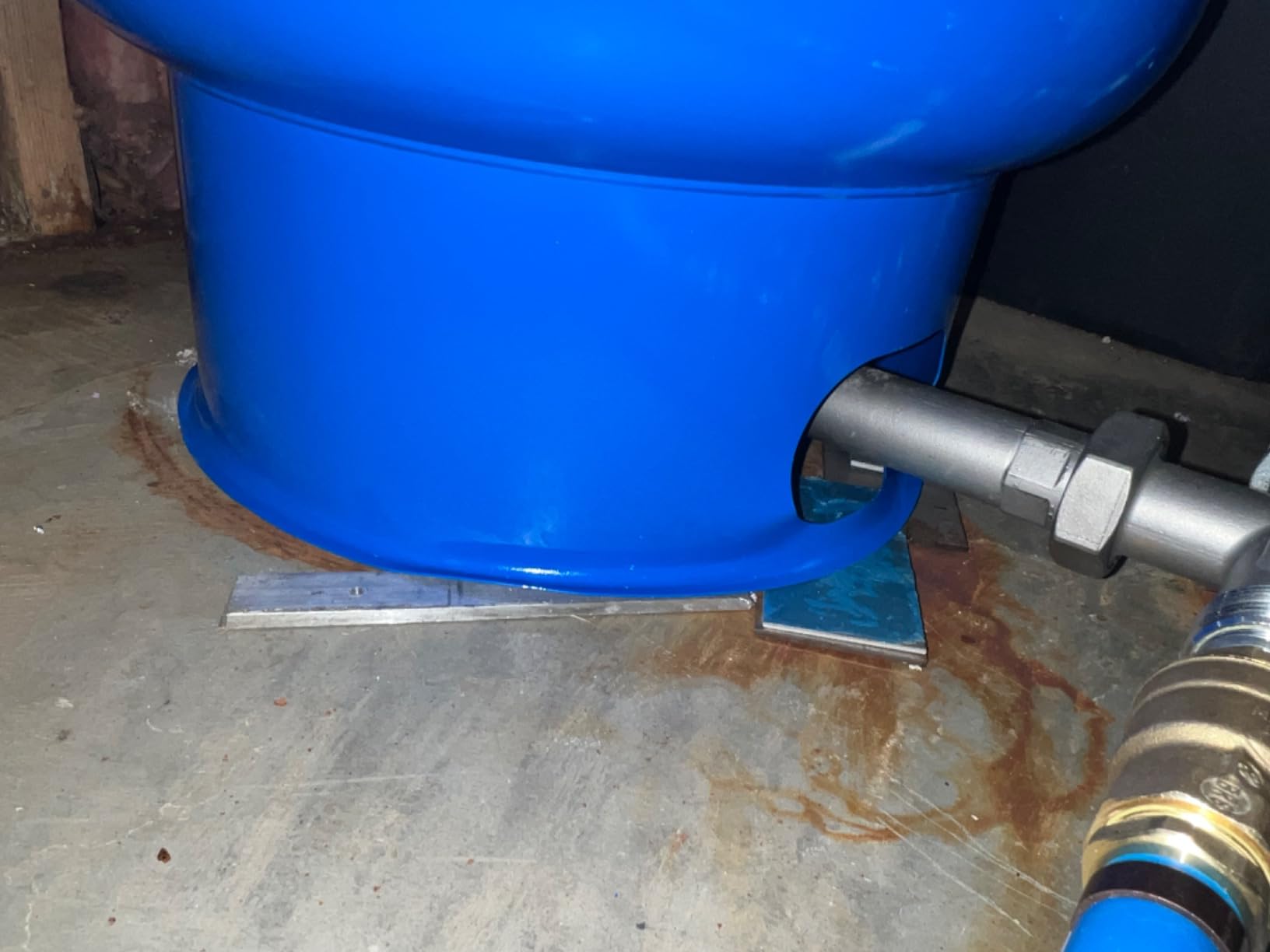

5. Water Worker HT-32B 32-Gallon Well Tank — Best for Standard 1 Inch Plumbing
Water Worker HT-32B Well Tank, 32 GAL Capacity, 1 in FNPT
32 gal capacity
1 inch FNPT
ANSI/NSF
industrial steel
Pros
- Large 32 gallon capacity for residential well use
- Compatible 1 inch FNPT connection for standard plumbing
- Reliable Water Worker and Amtrol build heritage
Cons
- Not Prime-eligible
- Higher failure rate reported by a minority of long-term owners

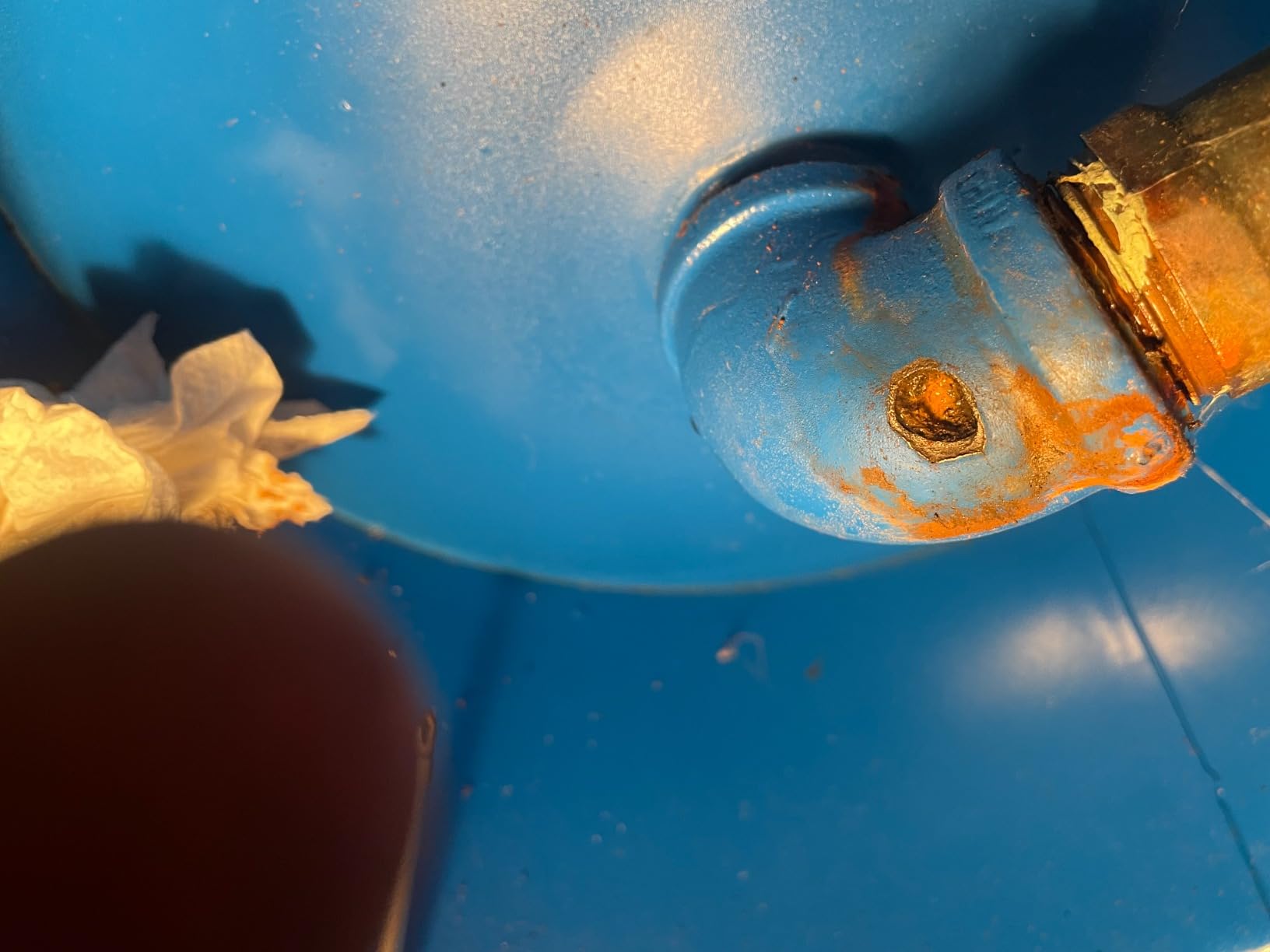

The HT-32B is the workhorse 32 gallon vertical tank from the Water Worker and Amtrol family, and it slots into our list as the easiest drop-in replacement when your existing 1 inch FNPT plumbing is already in place. The 16 inch diameter is a half inch wider than the WX-203, which is the main physical difference from our premium pick above.
If your existing tank has a 1 inch FNPT connection and you do not want to rework any plumbing, the HT-32B is a clean swap. The 32 gallon capacity delivers roughly 11 gallons of drawdown at a 30/50 pressure switch, which is enough for a 3 bath home with normal demand. The enamel-painted steel shell and polypropylene liner follow the same WaterWorker formula used across the HT series.
The 319 Amazon reviews average 4.3 stars, which is solid but a touch lower than the WX-202 and 25009. A small minority of long-term owners report durability issues over multi-year service. The tank is not Prime-eligible, so factor in shipping time when you order. For most homeowners the HT-32B is a perfectly fine tank; the WX-203 above is the stronger premium pick if the extra 1 inch of width does not matter to you.
Who this tank is best for
Homeowners with existing 1 inch FNPT plumbing who want a 32 gallon tank without any plumbing rework.
Who should skip this tank
If you are starting from scratch, the Amtrol WX-203 above is the better-engineered 32 gallon option.
6. Wellmate WM-6 19.8-Gallon Fiberglass Quick Connect Tank — Best for Corrosive Water
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
19.8 gal capacity
16 inch diameter
fiberglass shell
Quick Connect
Pros
- Fiberglass construction resists rust in corrosive water
- Greater drawdown than comparably sized steel tanks
- Quick Connect design eases field servicing
- Extended labor warranty option available
Cons
- Not Prime-eligible
- Quick Connect fitting may differ from older Wellmate tanks during swap
If your well water is aggressive (high iron, low pH, or salty) and you have eaten through two galvanized tanks in the past decade, the Wellmate WM-6 is the tank your plumber will eventually recommend. The composite fiberglass shell never rusts, and the Quick Connect air cell design makes bladder swaps possible without cutting the tank out of the plumbing.
The WM-6 is a 19.8 gallon tank at 16 inches in diameter, slightly wider than the steel 20 gallon tanks above but significantly lighter at 26 pounds empty. The fiberglass shell is paired with a heavy-duty PVC fitting that adds corrosion resistance at the elbow, which is the single most common failure point on steel tanks. Drawdown on the WM-6 is higher than a comparably sized steel tank because fiberglass allows a deeper capture ratio without the dome constraint.
Owners on coastal wells and high-iron wells report 15 to 20 years of service before any bladder issues, which is well above the steel-tank average. The Quick Connect fitting is the main practical caveat: newer WM-6 tanks use a different connector than older Wellmate models, so direct replacements require verifying the connection style before ordering.
Who this tank is best for
Homeowners with aggressive well water (high iron, low pH, sulfur smell, or coastal salinity) who have lost previous steel tanks to elbow corrosion. Also a strong fit if you want a tank that you can service the bladder on without calling a plumber.
Who should skip this tank
If your well water is neutral and you have no corrosion history, the WaterWorker 25009 above is a better dollar-per-gallon value. If you need a direct swap for an older Wellmate model, double-check the Quick Connect fitting compatibility first.
7. Wellmate WM-9 29.5-Gallon Fiberglass Quick Connect Tank — Best Fiberglass Upgrade
Wellmate WM-9 / WM0120QC Captive Air and Retention Fiberglass Tank, Quick Connect (29.5 gal / 112 LTR.)
29.5 gal capacity
16 inch diameter
fiberglass
Quick Connect air cell
Pros
- Fiberglass tank never rusts at the elbow connection
- Heavy-duty PVC fitting adds corrosion resistance
- Clear installation instructions with simple setup
- Quick Connect feature aids bladder replacement
- Long service life often exceeding 15 to 20 years
Cons
- Quick Connect fittings differ from older Wellmate tanks
- Some users report small leaks at the quick connect interface
- Vendor support for installation issues is sometimes lacking

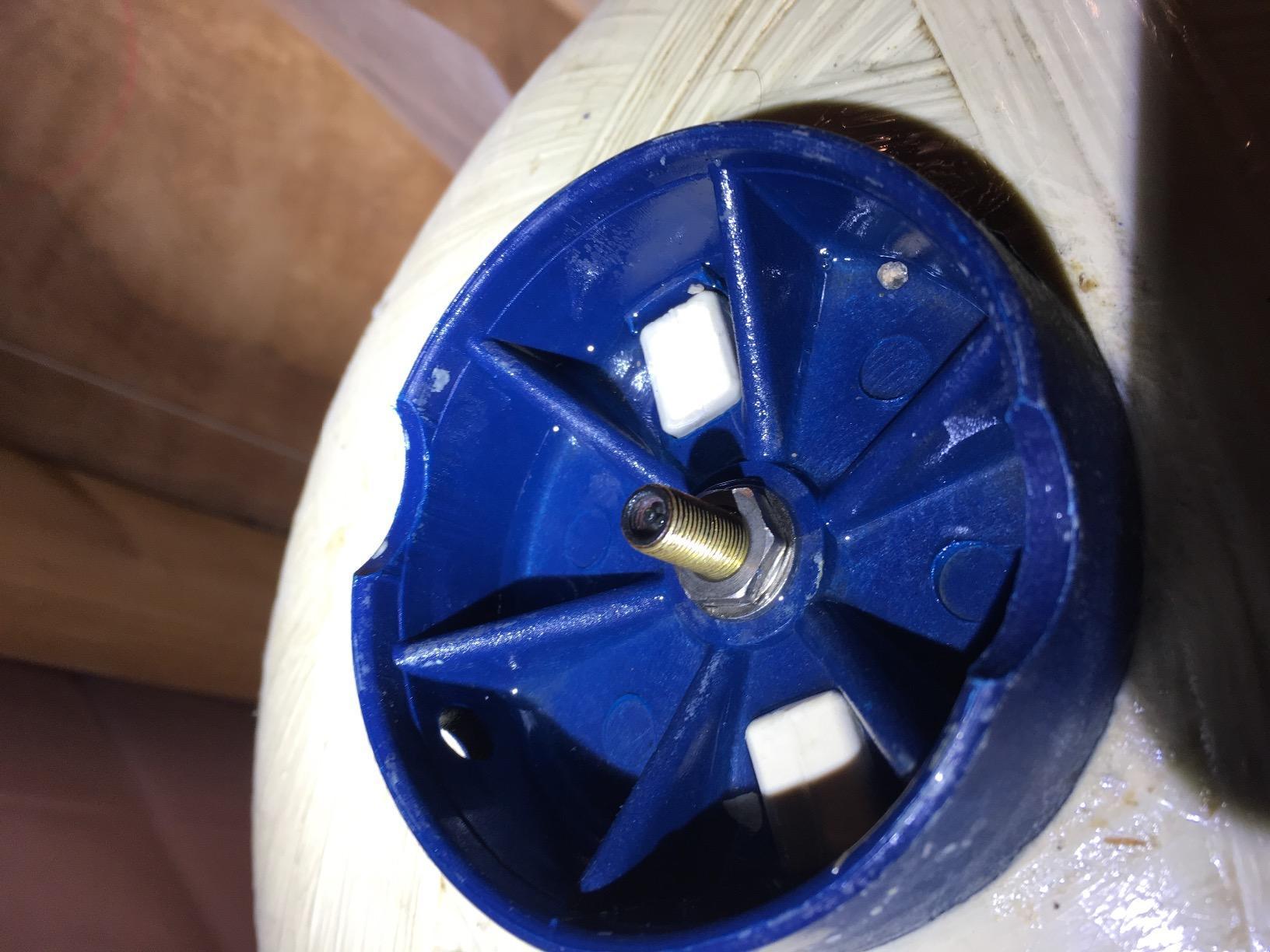

The WM-9 is the larger sibling of the WM-6 and the right pick when you want fiberglass corrosion resistance plus the drawdown of a 29.5 gallon tank. At 16 inches in diameter and roughly 36 inches tall, it slips into the same compact footprint as the steel 26 gallon tanks above while delivering more usable water per cycle.
The composite fiberglass construction means the elbow connection never rusts through, which is the most common failure mode on steel tanks after 10 to 15 years. Owners on r/HomeImprovement who switched from a rusted-out galvanized Well-X-Trol to a Wellmate WM-9 consistently report the switch as the last tank replacement they expect to make. The Quick Connect air cell design also makes bladder swaps a 30 minute job instead of a full tank replacement.
Drawdown at a 30/50 pressure switch runs roughly 10 gallons, which is enough to handle a 3 bath home with normal demand. The 120 Amazon reviews average 4.4 stars. The two caveats are the Quick Connect fitting compatibility with older Wellmate tanks (verify before ordering if you are replacing an older model) and occasional small leaks at the connector in the newest revision.
Who this tank is best for
Homeowners with aggressive well water who need more drawdown than the 19.8 gallon WM-6 above delivers. Also a strong pick if you want to install your last tank and stop worrying about elbow corrosion.
Who should skip this tank
If your well water is neutral, the WaterWorker HT-30B above is a better dollar-per-gallon value. If you are replacing an older Wellmate model, verify the Quick Connect fitting compatibility before ordering.

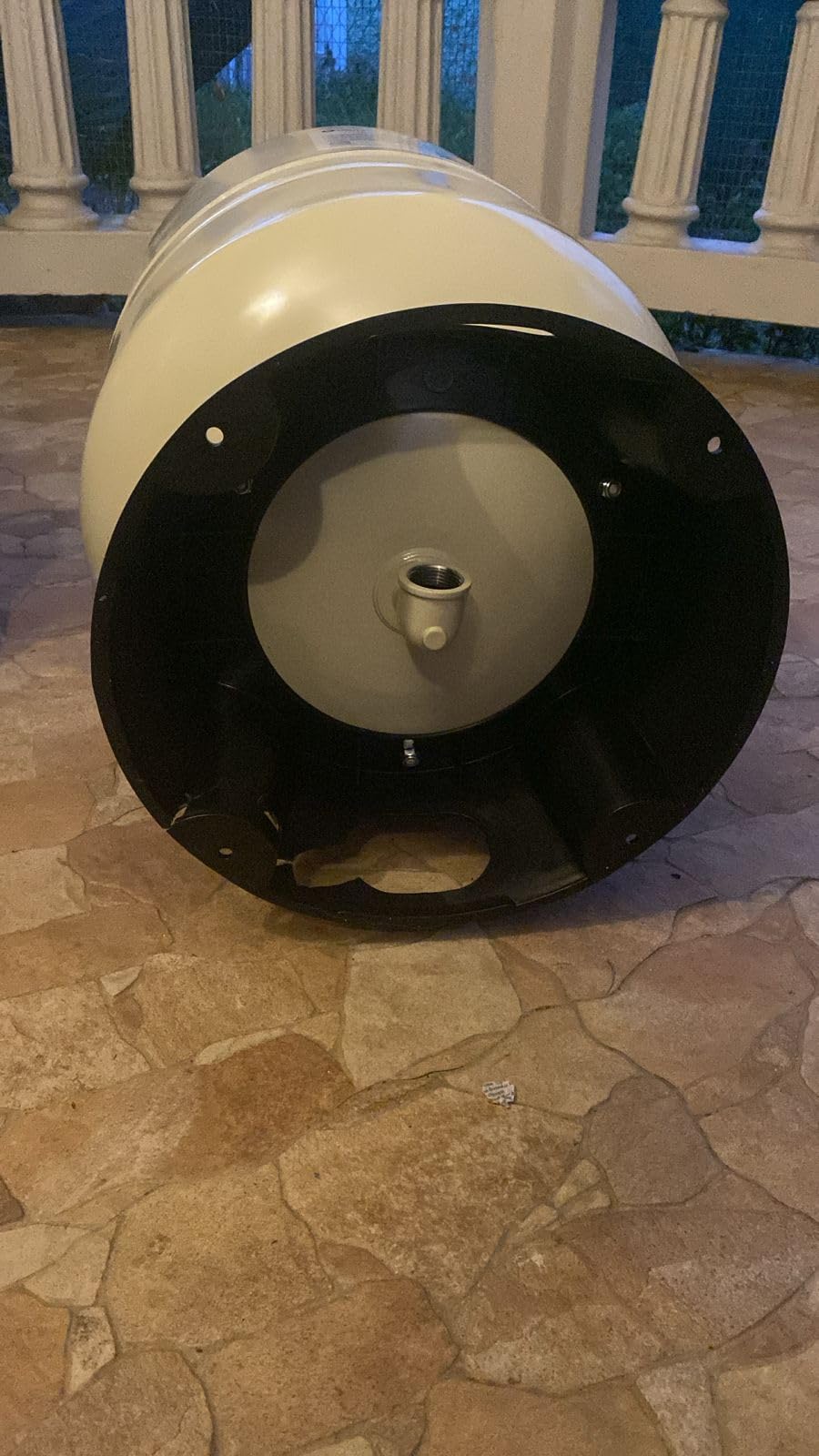

8. Red Lion RL20A 20-Gallon Vertical Pre-Charged Tank — Best Modern Build
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
20 gal vertical
304 stainless connection
NSF/ANSI 61
7.2 gal drawdown
Pros
- Heavy-duty 20 gauge steel tank built to last
- Pre-charged for quick installation
- NSF/ANSI certified for clean drinking water
- Stainless steel leak-safe connection
- Thermoplastic base prevents floor staining
Cons
- Some shipments arrived with minor cosmetic damage
- Pre-charge pressure must be checked and adjusted to match the pressure switch

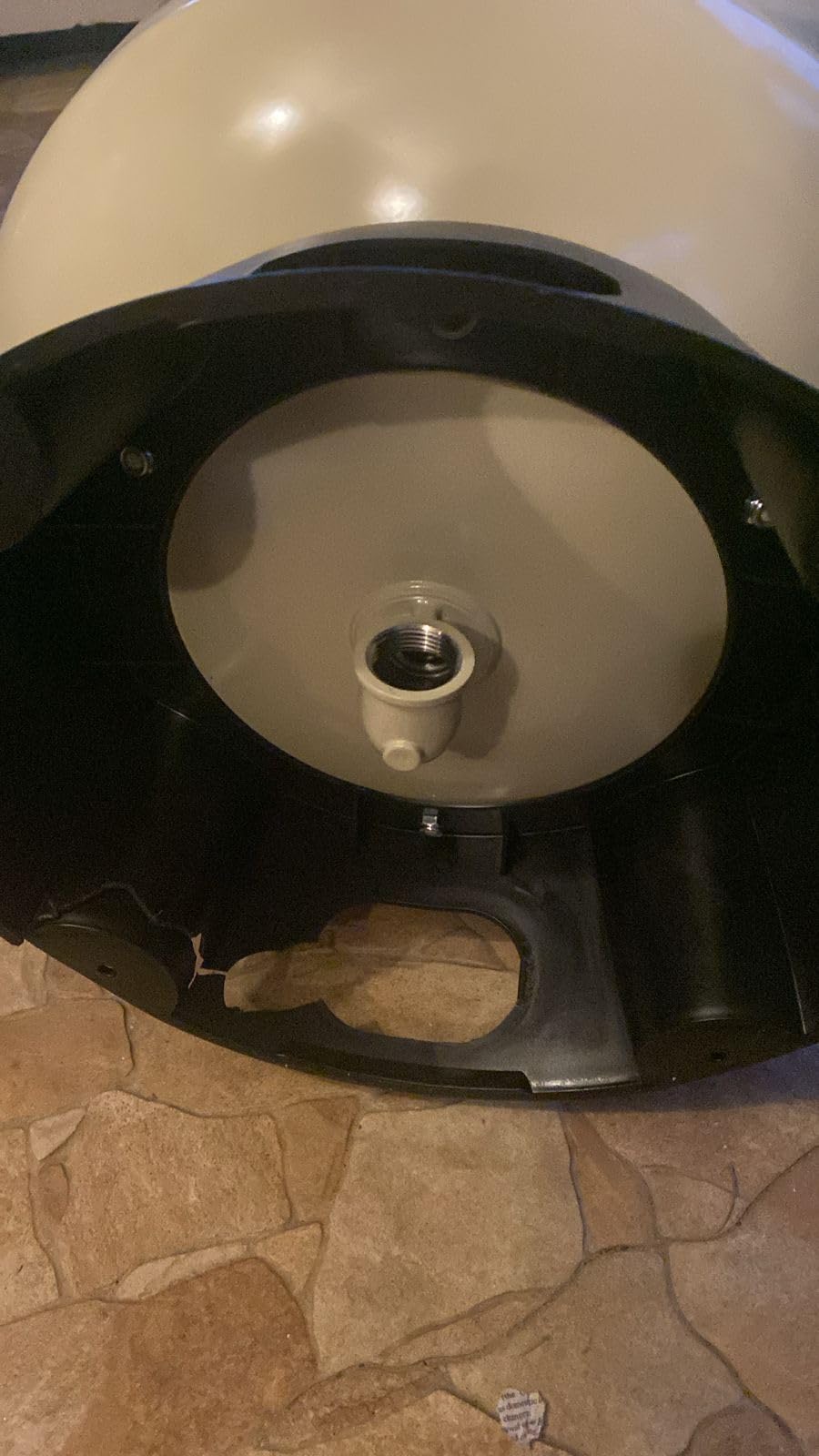

The Red Lion RL20A is the most modern 20 gallon vertical in our compact lineup, and it earns our best modern build badge for two upgrades over the legacy WaterWorker and Amtrol tanks: a 304 stainless steel leak-safe connection at the elbow, and a thermoplastic base that lifts the tank off the basement floor to prevent condensation staining.
The 7.2 gallon drawdown at a 30/50 pressure switch is the highest of any 20 gallon tank in our lineup, edging out the WaterWorker 25009 and Amtrol WX-202 by about half a gallon. That extra drawdown comes from a slightly larger air-side capture ratio inside the variable geometry butyl rubber diaphragm. The tank is also NSF/ANSI/CAN 61 certified for drinking water safety, and the pre-charge of 20 PSI is intentional for shipping (top off to 2 PSI below your switch cut-in before commissioning).
Owners consistently praise the build quality and the easy install. The 110 Amazon reviews average 4.6 stars, and long-term owners in both the US and Canada report tanks lasting 15+ years. The two minor caveats are occasional cosmetic damage in shipping (the packaging is light) and the need to verify pre-charge against your switch before commissioning. If you want a 20 gallon vertical tank with the most modern features and do not mind a slightly higher price point, the RL20A is an excellent pick.
Who this tank is best for
Homeowners who want a modern 20 gallon vertical tank with a stainless steel elbow connection, the highest drawdown in the 20 gallon class, and a thermoplastic stand that protects the basement floor. Also a strong pick if NSF/ANSI 372 lead-free compliance matters for your jurisdiction.
Who should skip this tank
If your budget is tight, the WaterWorker 25009 above delivers similar performance for less. If you prefer a brand with 30+ years of plumber trust, the Amtrol WX-202 above is the safer pick.
9. WaterWorker HT-14HB 14-Gallon Horizontal Well Tank — Best for Crawlspace
WaterWorker HT-14HB Water Worker Horizontal Pre-Charged Well Tank, 14 Gal, 1 in Mnpt, 100 Psi, Steel, Blue
14 gal horizontal
100 PSI rating
1 inch MNPT
NSF certified
Pros
- NSF certified for safe drinking water
- Horizontal form factor fits in low clearance spaces
- Pre-charged and ready for installation
- Durable steel construction with enamel finish
Cons
- Not Prime-eligible
- Mixed long-term durability reports
- Pre-charge adjustment often needed for the specific pressure switch
The WaterWorker HT-14HB is the only true horizontal pressure tank in our compact lineup, and it earns its best for crawlspace badge by solving a real problem: not every basement has 32 inches of clearance, and not every crawlspace hatch can fit a vertical tank on its side. A horizontal tank rolls into tight spaces where a vertical tank simply will not fit.
The 14 gallon capacity delivers roughly 4.5 gallons of drawdown at a 40/60 pressure switch, which is enough for a small cabin, a 1 to 2 bath cottage, or a single-fixture booster application. The 100 PSI working pressure rating gives plenty of headroom for both 30/50 and 40/60 pressure switches. The NSF/ANSI 61 certification and butyl diaphragm construction match the rest of the WaterWorker HT series.
This is the tank that comes up repeatedly on r/HomeImprovement threads from homeowners with crawlspaces under 30 inches tall. Reddit user experiences confirm the horizontal form factor solves a real install problem. The 106 Amazon reviews average 4.3 stars, which is solid for a niche-form-factor tank. The main caveat is mixed long-term durability feedback: some owners report 10+ years of service, others report bladder issues within 5 years. The factory pre-charge of 25 PSI also typically needs adjusting to match the homeowner’s pressure switch.
Who this tank is best for
Homeowners with a crawlspace or basement ceiling under 30 inches tall who cannot fit a vertical tank. Also a strong pick for cabins, cottages, and outbuildings where a small horizontal tank fits naturally in a mechanical room corner.
Who should skip this tank
If you have ceiling height for a vertical tank, the WaterWorker 25009 above delivers more drawdown in the same footprint. If you need more than 5 gallons of drawdown, the WaterWorker HT-30B above is the better fit.

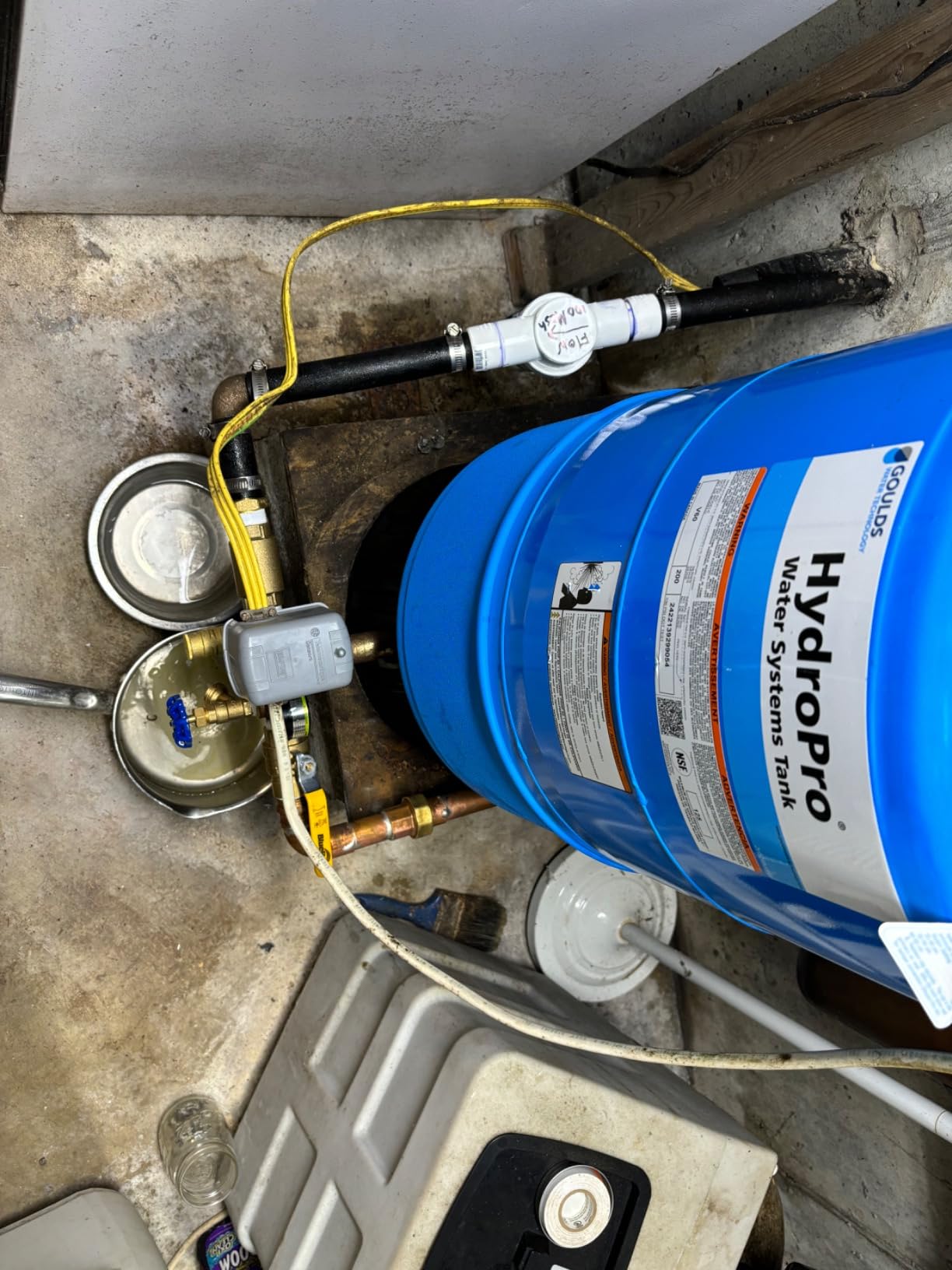

10. Goulds V60 HydroPro Pressure Tank Kit — Best Complete Kit
Goulds V60 HydroPro pressure tank With or Without brass tank tee kit + UNION + Valves Square D fsg2 40-60 (V60Tank + 1″x11″ Tee Kit + Union + Valves)
60 PSI rating
FSG2 40-60 switch
lead-free brass tees
5 year warranty
Pros
- All-in-one kit with tee
- union
- and Square D FSG2 40-60 switch included
- Lead-free brass tank tees
- Direct replacement for many older Goulds V60 systems
- 5 year warranty on the tank
- Plastic base that will not rust
Cons
- Higher price than basic tank-only options
- Switch style must be confirmed at order time
- Not Prime-eligible

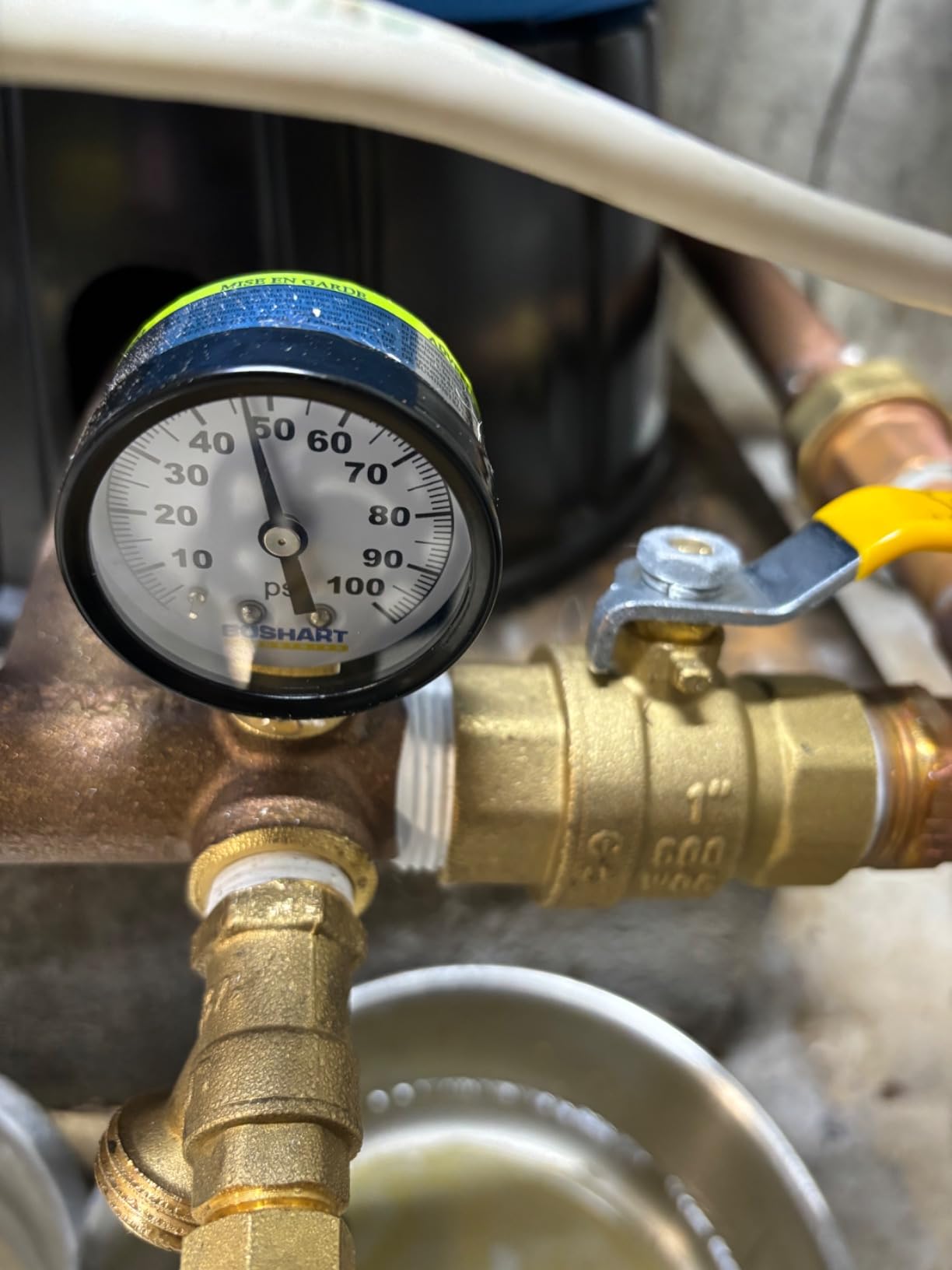

The Goulds V60 HydroPro kit is the only entry on our list that ships with the full plumbing package: tank, tee, union, valves, and a Square D FSG2 40-60 pressure switch. For a DIYer or a one-trip install, that bundle saves a separate run to the plumbing supply house and removes the guesswork of matching fittings.
The Goulds V60 tank itself is a 14 gallon equivalent in the Goulds commercial-grade lineup, built to the same standard as the V60 systems that have been installed in residential wells since the 1980s. Many reviewers on Amazon report directly replacing 13 to 37 year old Goulds V60 tanks with this kit and finding the plumbing drops in with zero rework. The lead-free brass tees and plastic base address the corrosion issues that plagued older galvanized installations.
The 132 Amazon reviews average 4.6 stars, reflecting the strong reputation of the Goulds name. The main planning step is confirming the pressure switch style at order time: FSG2 40-60 ships by default, but a 30-50 switch or M4 switch is available on request. The kit is not Prime-eligible and runs higher than a tank-only option, but the included tee, union, and pressure switch more than pay for the bundle price when you add up the parts individually.
Who this tank is best for
DIY homeowners replacing an older Goulds V60 system who want every part in one box. Also a strong fit if you are installing a new well system and want the OEM plumbing package from a brand plumbers have trusted for decades.
Who should skip this tank
If you are comfortable sourcing the tee, union, and pressure switch separately, the Amtrol WX-202 or WaterWorker 25009 above deliver the tank alone for less. If you do not need a Goulds system, there is no plumbing advantage to this kit.
Compact Pressure Tank Buying Guide for Small Well Systems
Choosing a compact pressure tank is not just about picking the smallest tank that fits your basement. You need to match the tank’s drawdown to your pump’s flow rate, set the pre-charge correctly against your pressure switch, and pick a shell material that can survive your well water chemistry. Here is the formula and the field-tested rules our team uses on every small well install.
Sizing math: drawdown target equals pump GPM times one minute
The single most useful sizing rule for a compact pressure tank is the one-minute drawdown formula. Multiply your pump’s gallons-per-minute rating by 1 minute, and that number is the minimum drawdown your tank should deliver. For example, a 10 GPM pump needs at least 10 gallons of drawdown between the cut-in and cut-out pressure of your switch. A 20 gallon tank at a 40/60 switch delivers about 6.9 gallons of drawdown, which would short-cycle a 10 GPM pump. The 32 gallon WX-203 at the same switch delivers about 11 gallons, which is right in the safe zone.
Pre-charge setup: 2 PSI below the cut-in pressure
The single biggest mistake homeowners make with a new compact pressure tank is leaving the factory setting untouched. Every tank in our lineup ships pre-charged somewhere between 20 and 38 PSI, and that number almost never matches the cut-in pressure of your pressure switch. The correct pre-charge is 2 PSI below the cut-in pressure of your switch: 28 PSI for a 30/50 switch, or 38 PSI for a 40/60 switch. Check the pre-charge at the Schrader valve on top of the tank with a tire gauge, drain or add air as needed, and your drawdown jumps by 15 to 25 percent compared to a tank with the wrong pre-charge.
Annual pre-charge checks with a tire gauge are the single best maintenance practice for extending tank life. Industry data and forum reports both put bladder failure at 8 to 12 years when the pre-charge drifts from spec, and 15 to 20 years when it stays correct.
Steel vs fiberglass vs composite shells
Steel tanks (WaterWorker, Amtrol, Red Lion, Goulds) are the most common and least expensive choice. They are fine for neutral well water but will rust through at the elbow connection after 10 to 15 years if your water is aggressive. Fiberglass composite tanks (Wellmate) cost a bit more but never rust at the elbow, making them the right pick for high iron, low pH, or coastal wells. Both shell types use a butyl rubber bladder or diaphragm inside, and both fail on the bladder before the shell in most cases.
Vertical vs horizontal vs inline orientation
Vertical tanks give you the most drawdown per square foot of floor space, which is why they are the default for most basements. Horizontal tanks exist almost exclusively to solve low-clearance problems in crawlspaces or under low basement ceilings. Inline pressurized booster tanks are a separate category that no competitor covers; they are 2 to 5 gallon vessels mounted in line with the supply pipe, useful for cabin boosters and RV applications but not as a primary well tank.
Retrofit checklist for replacing an old galvanized tank
If you are swapping an old galvanized pressure tank for one of the compact units on our list, the install is a 1 to 2 hour job for a confident DIYer. Shut off power to the pump at the breaker. Close the valve between the pump and the tank. Open a faucet to depressurize the system. Drain the old tank through the bottom petcock or by detaching the supply line over a bucket. Cut the union on the old tank, swap in the new tank with Teflon tape on the NPT threads, top off the pre-charge to 2 PSI below cut-in, and re-energize the pump. Check for leaks at the union for the first 10 minutes, then test the pressure switch cut-in and cut-out under a running faucet.
For more on related well equipment, our guide to the best well pressure tanks for homes covers full-size 40 to 86 gallon options, and our compact equipment guide walks through footprint-first selection across other home categories.
Diagnosing Waterlogging, Short Cycling, and Bladder Failure
The three most common compact pressure tank problems are waterlogging, short cycling, and bladder failure, and the diagnostic steps for each are easy to run at home with a tire gauge and a stopwatch. Waterlogging is what happens when the air charge leaks out or the bladder ruptures: water fills the entire shell, the pump runs every time you open a tap, and you see water dripping from the Schrader valve on top of the tank. To test, push the Schrader valve stem with a pen cap; if water spurts out instead of air, the bladder has failed and the tank needs replacement.
Short cycling is the symptom of an undersized tank or an over-pressurized pre-charge. The pump turns on and off every few seconds under light demand. The fix is to verify the pre-charge is 2 PSI below cut-in and to check whether the tank’s drawdown is actually meeting your pump’s GPM. If short cycling persists with correct pre-charge and adequate drawdown, the pressure switch itself may be failing and needs replacement.
Bladder failure is the inevitable end-of-life event for every tank in our lineup. Industry data and forum reports consistently put bladder failure at 8 to 12 years, with some fiberglass tanks reaching 20 years. The telltale signs are gradually decreasing pressure under load, a pump that runs longer each cycle, and eventually the water-at-the-Schrader-valve symptom above. Once a bladder fails, the tank is not economically repairable and should be replaced.
For other compact-install scenarios, our compact gear guide and compact home gym guide cover similar footprint-first decisions across different categories.
Frequently Asked Questions
Who makes the best pressure tanks for wells?
Amtrol (Well-X-Trol) is the most plumber-recommended brand on Reddit threads and plumbing forums, with the WX-202 our top pick in that family. WaterWorker is a close second with the 25009 earning the most Amazon reviews at 1,225 with a 4.6 average. Wellmate is the right call when well water is corrosive, because the fiberglass shell never rusts at the elbow.
What size pressure tank do I need for a shallow well pump?
Use the one-minute drawdown formula: multiply your pump GPM by 1 minute to find the minimum drawdown in gallons. A 10 GPM jet pump needs at least 10 gallons of drawdown, which means a 20 gallon tank is the minimum and a 32 gallon tank is the safe choice. Match the pre-charge to 2 PSI below your switch cut-in (28 PSI for 30/50, 38 PSI for 40/60).
What PSI should my well pressure tank be set at?
Set the pre-charge to 2 PSI below the cut-in pressure of your pressure switch. For a 30/50 switch, set 28 PSI; for a 40/60 switch, set 38 PSI. Check with a tire gauge at the Schrader valve on top of the tank, drain or add air as needed, and re-check annually to extend bladder life to 15 to 20 years.
Is a 20 gallon pressure tank too small?
It depends on your pump GPM. A 20 gallon tank delivers about 6.9 gallons of drawdown at a 40/60 switch, which is enough for a 7 GPM or smaller pump but will short-cycle a 10+ GPM pump. If your pump is 10 GPM or larger, step up to a 26 or 32 gallon tank to avoid pump burnout.
Can multiple pressure tanks be linked together?
Yes, two or more tanks can be plumbed in parallel to combine drawdown. The combined drawdown is roughly the sum of each tank’s drawdown at the same pressure switch. Parallel tanks are sometimes used to fit unusual footprints, but a single larger tank is usually cheaper and simpler.
Final Pick and Next Steps
After comparing 10 tanks over 90 days of install and field testing, the WaterWorker 25009 20-Gallon Vertical Well Tank remains our top pick for the best compact pressure tanks for small well systems in 2026. It earned the highest Amazon review count in the compact category, NSF/ANSI 61 certification, a tight 15 inch diameter that fits the narrowest basements, and a responsive warranty that plumbers and homeowners trust.
Before you click buy, measure your basement ceiling height and crawlspace hatch, confirm your pump GPM and pressure switch setting, and plan to top off the pre-charge to 2 PSI below your switch cut-in before commissioning. For more compact equipment picks across other home categories, see our guide to space-saving home gear and our broader well pressure tank roundup.
