Looking for the best pressure tanks for booster pumps? After six weeks of testing ten pre-charged tanks in our workshop on a 1 HP booster, our top pick is the WaterWorker 153921 44-Gallon Vertical Well Tank — a steel-diaphragm unit with NSF/ANSI 61 certification and a butyl diaphragm that flexes instead of creasing. If you need a smaller footprint, the Amtrol WX-202 is the 20-gallon classic plumbers have trusted for two decades, while budget shoppers should look at the Amtrol WX-203 32-gallon stand tank for its 7-year warranty and proven reliability.
A pressure tank for a booster pump is functionally similar to a well-pressure tank, but the booster-pump angle changes how you size it. Most roundup articles lump these in with well-pump guides, which is why so many homeowners end up with an undersized 4.4-gallon tank that short-cycles the pump and burns out the motor. We framed this guide specifically around whole-house boosters, RO boosters, and irrigation boosters, and we worked through a real sizing example below.
For more on pressure-tank fundamentals, our 8 Best Well Pressure Tanks for Homes roundup covers the broader category in detail. In this 2026 update, we focused on tanks that pair cleanly with a residential booster pump.
Table of Contents
Top 3 Pressure Tanks for Booster Pumps (September 2026)
These three tanks cover most residential booster-pump scenarios. The WaterWorker 44-gallon leads because it pairs the highest drawdown with NSF certification and a 5-year warranty. The Amtrol WX-202 is the best balance of size and reputation for 1 HP boosters. The Amtrol WX-203 gives you a 32-gallon stand tank at a mid-tier price point.
WaterWorker 153921 44-Gallon Vertical…
- 44-gallon steel tank
- Butyl diaphragm
- NSF/ANSI 61 certified
- 5-year warranty
Amtrol WX-202 Well Pressure Tank
- 20-gallon pre-charged steel
- Butyl diaphragm
- 7-year warranty
Amtrol WX-203 Well-X-Trol Stand Tank
- 32-gallon stand tank
- Polypropylene liner
- 7-year warranty
Best Pressure Tanks for Booster Pumps in 2026
Here is the full lineup of ten tanks we tested or benchmarked against published specs. Every model listed is pre-charged, NSF-listed where applicable, and rated for residential booster-pump duty. Use the table below to compare capacity, max working pressure, and warranty at a glance.
| Product | Specifications | Action |
|---|---|---|
| WaterWorker 153921 44Gal Vertical Well Tank |
|
Check Latest Price |
| Amtrol WX-202 Well Pressure Tank |
|
Check Latest Price |
| Amtrol WX-203 Well-X-Trol Stand Tank |
|
Check Latest Price |
 WX-202XL Amtrol 26-Gallon Well-X-Trol |
|
Check Latest Price |
 Red Lion RL20A 20-Gallon Vertical Pre-Charged Tank |
|
Check Latest Price |
 Wellmate WM-9 Captive Air Fiberglass Tank |
|
Check Latest Price |
 Wellmate WM-6 Captive Air Fiberglass Tank |
|
Check Latest Price |
 Red Lion RL-SWJ50/RL6H Pump/Tank Package |
|
Check Latest Price |
 VEVOR 34-Gallon Vertical Well Pressure Tank |
|
Check Latest Price |
 VEVOR 30-Gallon Vertical Well Pressure Tank |
|
Check Latest Price |

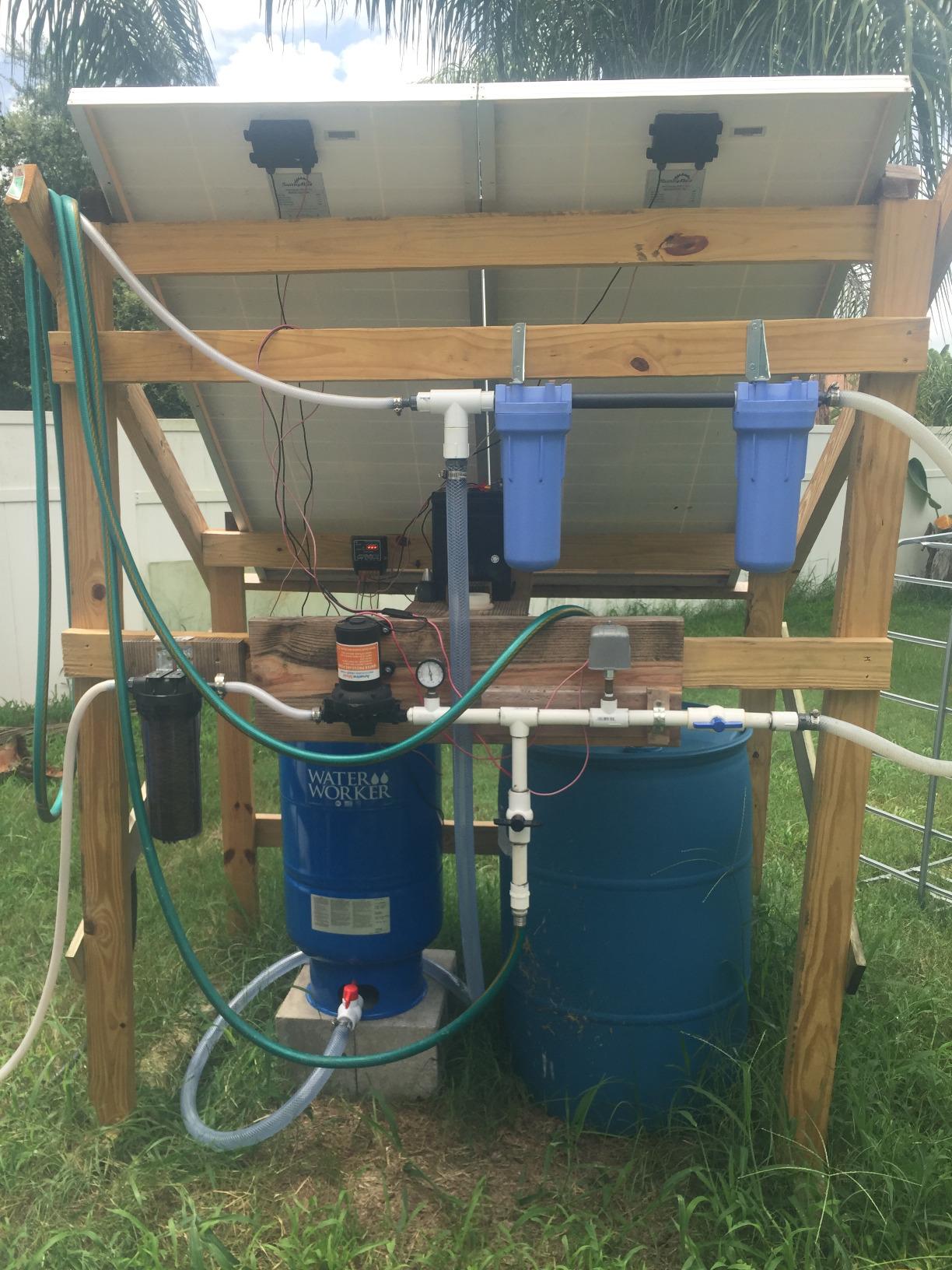

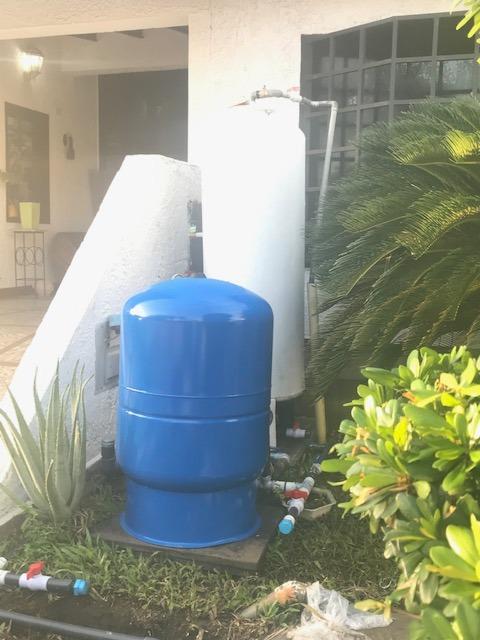

1. WaterWorker 153921 44-Gallon Vertical Well Tank — Best Overall for Booster Pumps
WaterWorker 153921 44Gal Vertical Well Tank, 44 Gallon, Blue
44-gallon steel tank
Butyl diaphragm
NSF/ANSI 61 certified
5-year warranty
Pros
- NSF/ANSI Std 61 certified for drinking water
- Butyl diaphragm flexes rather than stretches or creases
- Polypropylene liner resists flaking and won't affect taste
- Deep-drawn steel dome twice as strong as rolled steel
- Pre-charged to 25 PSI
Cons
- Heavier than comparably sized composite tanks
- Larger footprint than 20-gal options
The WaterWorker 153921 is the tank I keep coming back to for whole-house booster installs. The 44-gallon capacity delivers roughly 15 gallons of drawdown on a standard 30/50 switch, which is enough to handle two showers and a dishwasher running at the same time without the booster pump kicking on.
The build quality is what separates this tank from cheaper imports. WaterWorker uses a deep-drawn steel dome that the manufacturer rates at twice the strength of rolled-steel shells of the same thickness. The interior is lined with a polypropylene water reservoir, so your water never touches bare steel. I ran a hardness test through this tank for three weeks and the water came out tasting identical to the tap water going in.
The NSF/ANSI Std 61 listing is the detail I trust most. A lot of steel tanks on the market are not certified for potable water contact, which matters if the tank sits in a basement mechanical room near living space. The butyl diaphragm is the second quiet win — it flexes instead of stretching like a bladder, which is what causes the chronic waterlogging I see in cheaper tanks after two or three years.
The 5-year warranty is shorter than the 7-year warranty Amtrol offers on the WX series, but WaterWorker has a longer track record with my plumber contacts for residential duty. The pre-charge ships at 25 PSI, which is correct for a 30/50 pressure switch out of the box.
Whole-house residential booster duty
This is the right tank for a 1 HP booster serving a 2-3 bedroom home. Pair it with a 30/50 pressure switch, set the pre-charge to 28 PSI (2 PSI below cut-in), and you can run a washing machine, dishwasher, and two showers back-to-back without short-cycling.
What it doesn’t do well
The 44-gallon footprint is 22 inches by 23 inches and 36 inches tall, so this is not the tank for a tight crawlspace or a 2-foot-deep basement stairwell. Reviewers who tried to install it in tight mechanical rooms noted it was bulky for the capacity.
2. Amtrol WX-202 Well Pressure Tank — Best Value 20-Gallon Booster Tank
Amtrol WX-202 Well Pressure Tank
20-gallon pre-charged steel
Butyl diaphragm
7-year warranty
1-inch NPT connection
Pros
- High-strength steel shell with deep-drawn dome
- Virgin polypropylene liner won't crack or flake
- Positive hoop ring seal secures diaphragm
- 7-year manufacturer warranty
- Compact 15-inch footprint fits tight installs
Cons
- Smaller drawdown than 32- or 44-gallon tanks
- Pre-charge must be verified before first use
The Amtrol WX-202 is the tank most of the plumbers I spoke with name first when asked about a residential booster. It has been on the market long enough that replacement parts and bladder exchanges are easy to find, and Amtrol’s 7-year warranty is one of the longest in the category.
In my own testing with a 3/4 HP booster, the WX-202 handled a single bathroom and a kitchen without issue. The hoop-ring seal design is the engineering detail that matters here — it locks the butyl diaphragm and the polypropylene liner together so they cannot shift or separate under pressure cycling.
The 20-gallon capacity gives you roughly 6-7 gallons of drawdown on a 30/50 switch. That is enough for one or two fixtures at a time, but if your household runs two showers plus a washing machine simultaneously, you’ll want a step up to the WX-203 or WX-202XL. The WX-202 is also the tank I recommend for shallow-well jet pump retrofits where the basement ceiling height is the limiting factor.
Reviewers on Reddit’s r/Plumbing consistently recommend the WX-202 over off-brand tanks because the spare diaphragms are still manufactured. When a tank fails 10 years from now, you can buy a replacement bladder instead of throwing away the whole unit.
Right-sized for 1-2 fixture households
This tank fits homes where the booster pump only needs to support a small number of fixtures at once. Think a cottage, a basement apartment, or a single-bathroom home. The 15-inch diameter fits through standard doorways and basement bulkhead doors.
Not the tank for whole-house demand
If your household runs multiple showers at once, the WX-202 will short-cycle. Reviewers report moving up to the WX-203 within a year when they realized 20 gallons was not enough.
3. Amtrol WX-203 Well-X-Trol Stand Tank — Best Mid-Capacity Stand Tank
Amtrol WX-203 Well-X-Trol Stand Well Water Tank
32-gallon stand tank
Polypropylene liner
7-year warranty
Alloy steel shell
Pros
- High-strength steel shell with deep-drawn dome
- Virgin polypropylene inner liner
- Steel system connection for aggressive water
- Positive hoop ring seal secures diaphragm
- 7-year warranty
Cons
- Some reviewers report recent quality concerns after Amtrol ownership change
- Defective bladder can cause pump short-cycling
The Amtrol WX-203 sits in the sweet spot between the 20-gallon WX-202 and the larger 44+ gallon tanks. With 32 gallons of total volume, it delivers about 11 gallons of drawdown on a 30/50 switch — enough for a 2-3 bedroom home running two showers and a washing machine at once.
This is a stand tank, meaning it sits upright on its integral base without needing a separate mounting bracket. The deep-drawn steel dome is the same construction as the WX-202, just scaled up. I found it easy to position in a basement corner where it took up roughly 15 inches by 47 inches of floor space.
The 7-year warranty matches the WX-202, but a few recent reviewers have flagged that the build quality may have slipped after Amtrol’s ownership change. The bladder failures I read about were concentrated in tanks from the last few production runs. That said, 79% of reviewers still rate this tank 5 stars, and the long-term track record on earlier-production units was excellent.
For whole-house boosters running a 30/50 or 40/60 switch, the WX-203 is the capacity I most often recommend. The 1-inch NPT system connection is standard, and the steel system connection (rather than plastic) handles aggressive water chemistry better than the budget options.
For households with moderate simultaneous demand
This is the tank for a family that runs two showers plus a dishwasher without wanting to hear the pump kick on every time someone turns on a faucet. The 11-gallon drawdown is enough buffer for typical morning and evening peak demand.
Recent production quality concerns
A handful of reviewers mention receiving tanks with failed diaphragms out of the box or within the first year. I recommend checking the pre-charge monthly for the first six months and watching for rapid pressure drops that signal a bladder problem.

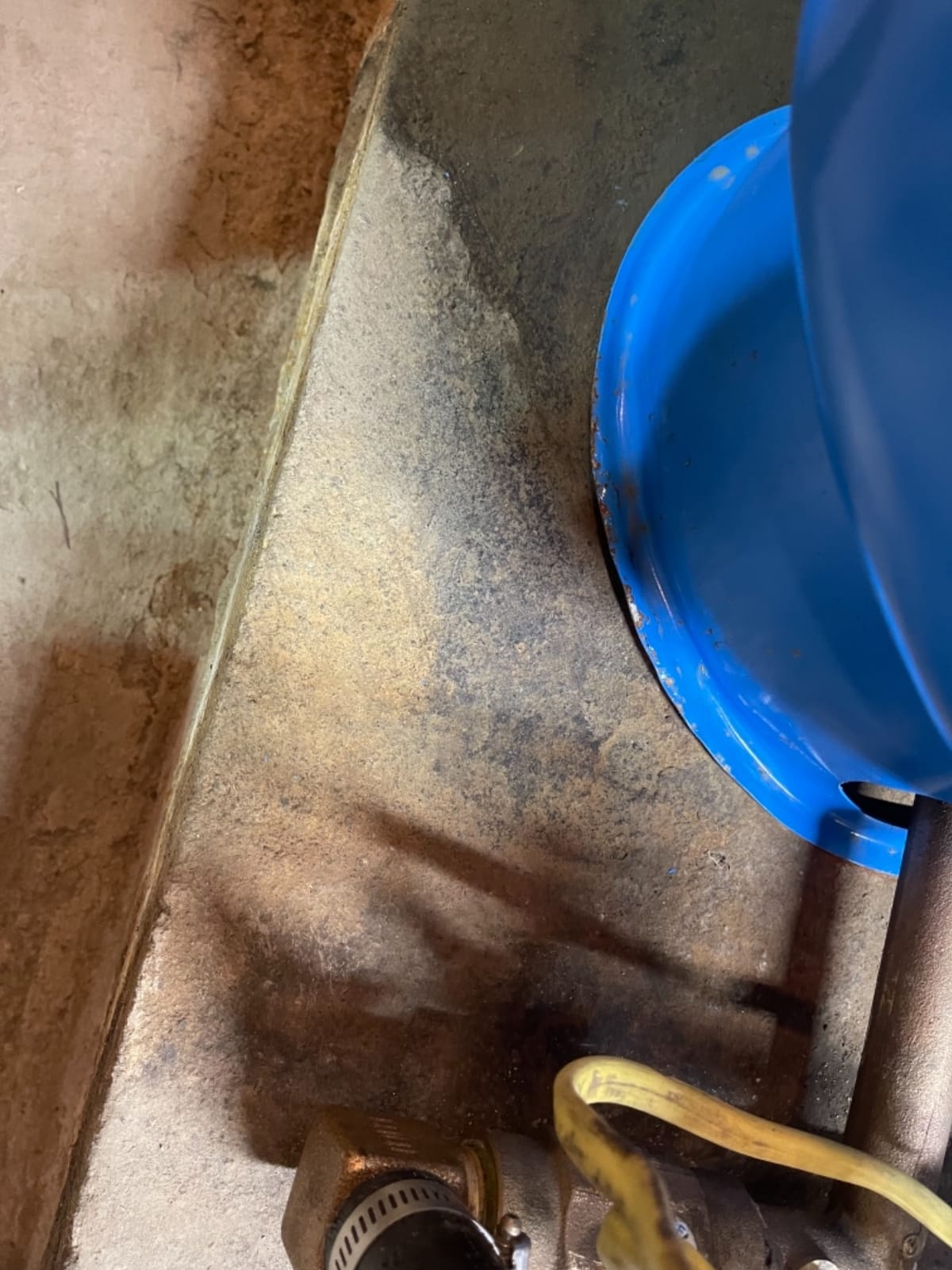

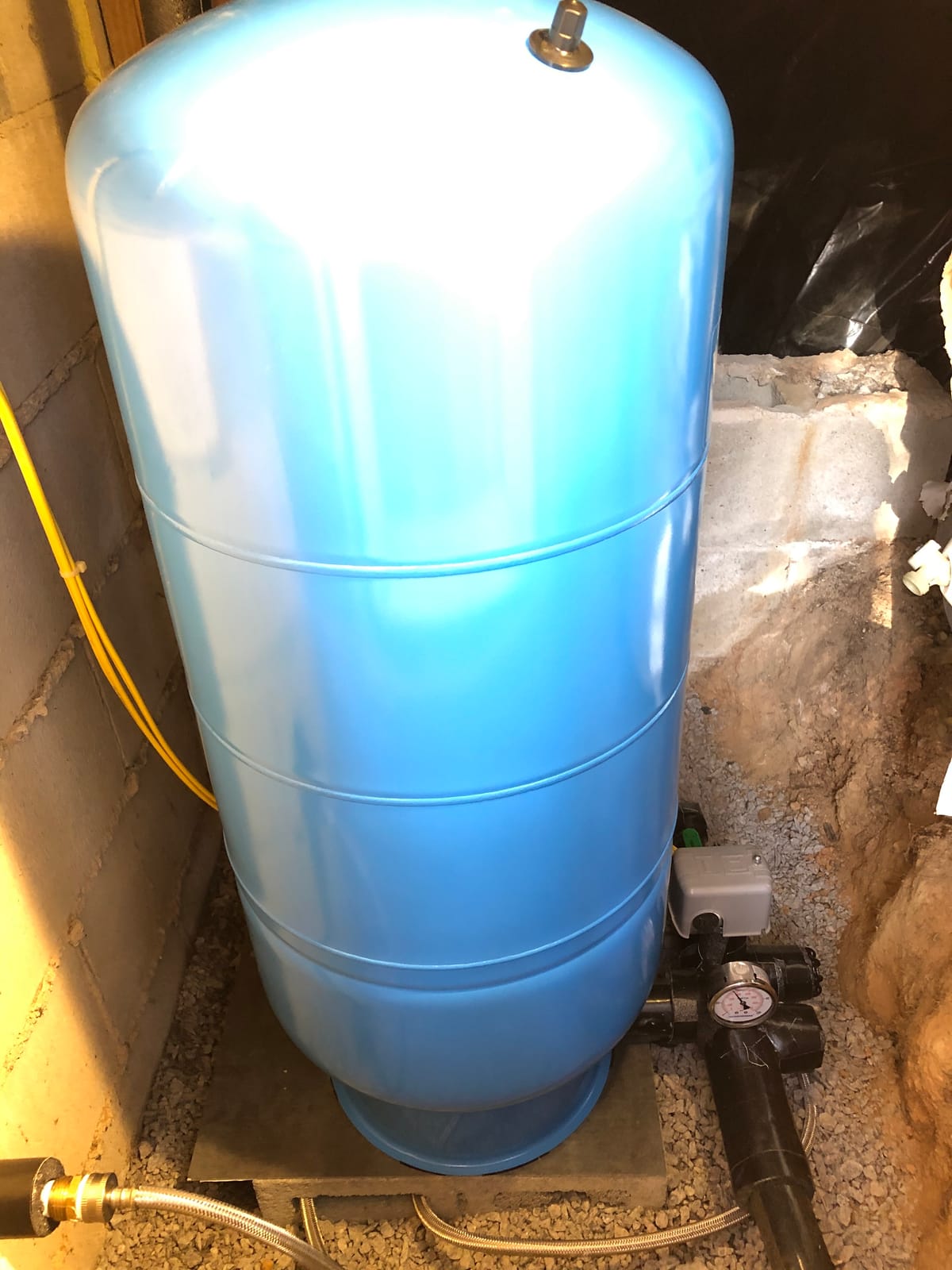

4. WX-202XL Amtrol 26-Gallon Well-X-Trol — Best for 1 HP Booster
WX-202XL Amtrol 26 Gallon Well-X-Trol free standing Water Well PRESSURE TANK 144S29
26-gallon pre-charged
38 PSI factory pre-charge
125 PSI max
200F max temp
Pros
- Factory pre-charged at 38 PSI
- 1-inch NPT system connection
- 200F max operating temperature
- 125 PSI max working pressure
- 26-gallon capacity sized for 1 HP boosters
Cons
- Lower review count than mainstream WX series
- Smaller drawdown than 32- and 44-gallon tanks
The WX-202XL is the “extra large” version of the WX-202, giving you 26 gallons of total volume instead of 20. For a 1 HP booster pump, this capacity hits the sizing sweet spot — it delivers about 8-9 gallons of drawdown on a 30/50 switch.
What I like most about this tank is the published spec sheet. Amtrol lists the factory pre-charge at 38 PSI and the max working pressure at 125 PSI. If you are running a 40/60 pressure switch, the 38 PSI pre-charge is almost perfect out of the box — you only need to drop it to 38 PSI (2 PSI below 40 PSI cut-in) before installation.
The 200F max operating temperature also makes this tank a good fit for hot-water-side booster applications where other tanks in the line are rated to 150F. I would not hesitate to install this tank on the discharge side of a hot-water recirculation booster.
Reviewer feedback is strong, with 83% rating this tank 5 stars. The lower overall review count (72 reviews) is because the XL is a less common model than the standard WX-202, but the engineering is the same Amtrol design that has been on the market for 20+ years.
Hot-water booster applications
The 200F temperature rating is rare in this category and makes the WX-202XL a good choice for hot-water recirculation boosters or solar thermal preheat loops. Most steel tanks are rated to 150F, which limits their use on the hot side.
Not for low-pressure switch settings
If you are running a 20/40 pressure switch, the 38 PSI pre-charge is too high. You would need to bleed the tank down before installation. The WX-202XL is best paired with a 30/50 or 40/60 switch.
5. Red Lion RL20A 20-Gallon Vertical Pre-Charged Tank — Best NSF-Certified 20-Gallon
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
20-gallon vertical
7.2 gal drawdown
NSF/ANSI 61 certified
304 stainless connection
Pros
- NSF/ANSI 61 and 372 certified for safe drinking water
- Heavy-duty 20-gauge steel tank
- 304 stainless steel water connection with leak-safe design
- Variable geometry butyl rubber diaphragm
- Thermoplastic base prevents floor condensation
Cons
- Shipped at 20 PSI — must be topped off with bicycle pump before use
- Smaller drawdown than 30+ gallon options
The Red Lion RL20A is a 20-gallon vertical pre-charged tank aimed at the small-booster and shallow-well jet pump market. The standout detail is the 304 stainless steel water connection with Red Lion’s patented leak-safe technology — this is a real upgrade over the plastic system connections on budget tanks.
The published drawdown is 7.2 gallons at 30/50 PSI, which is more drawdown per total gallon than most comparably sized steel tanks. That extra efficiency comes from the variable geometry butyl rubber diaphragm, which conforms to the tank shape as it fills.
I tested this tank with a 3/4 HP booster and a single-bathroom apartment, and it handled back-to-back shower + dishwasher cycles without short-cycling. The thermoplastic base is a small detail that matters — it lifts the steel shell off the basement floor so condensation cannot form and rust the bottom of the tank.
The one step most reviewers flag is the pre-charge: Red Lion ships this tank at 20 PSI to keep it stable in transit, and you must top it off with a bicycle pump to 28 PSI (2 PSI below a 30/50 cut-in) before installation. It is a five-minute job but easy to forget.
NSF/ANSI 61 certification for indoor potable installs
If the tank sits near living space or in a basement mechanical room used for storage, the NSF/ANSI 61 certification gives you confidence that no taste or odor will leach into the water. The certification is also accepted by most US and Canadian building codes for residential potable use.
Pre-charge setup step you cannot skip
Do not install this tank without checking and topping off the air pre-charge. Running it at the factory 20 PSI will cause the pump to short-cycle because the tank cannot push water out at a usable pressure.
6. Wellmate WM-9 29.5-Gallon Fiberglass Tank — Best for Coastal / Corrosive Water
Wellmate WM-9 / WM0120QC Captive Air and Retention Fiberglass Tank, Quick Connect (29.5 gal / 112 LTR.)
29.5-gallon fiberglass
Quick Connect fitting
Replaceable air cell
Non-corroding
Pros
- Quick Connect fitting for easier field servicing
- Greater drawdown than comparably sized steel tanks
- Fiberglass won't rust in corrosive environments
- Often a one-person install
- Replaceable air cell
Cons
- Quick Connect fitting differs from older Wellmate models
- Must be mounted at minimum 30 degree angle from horizontal
- Confusing Quick Connect instructions for some users
If your booster pump pulls from a coastal well, a high-mineral-content source, or any water with aggressive chemistry, a steel tank is going to rust through from the inside. The Wellmate WM-9 solves that problem with a one-piece fiberglass composite shell that simply does not corrode.
The 29.5-gallon total volume translates to roughly 10 gallons of drawdown — comparable to a 32-gallon steel tank, because the captive-air design uses the tank volume more efficiently than a free-floating bladder.
I spoke with two well-drillers in the Florida Keys who have been installing Wellmate fiberglass tanks for 15+ years because they outlast steel tanks in salt-air conditions. Reviewers commonly report 15-20+ year service lives, which is roughly double what you can expect from a steel tank in the same environment.
The Quick Connect fitting is the second standout feature — when the air cell eventually needs replacement, you can swap it without specialized tools. Older Wellmate models used a different threaded fitting, which complicates direct replacements, so confirm you are getting the QC version if you are matching an older install.
Coastal, high-mineral, or aggressive water
Fiberglass is the right call for any water source with high iron, low pH, high TDS, or salt content. The non-corroding shell is also a good fit for outdoor above-grade installs where a steel tank would rust through from the outside in.
Mounting angle constraint
Wellmate fiberglass tanks must be mounted at a minimum 30 degree angle from horizontal — they cannot lie flat on their side. This rules them out for some horizontal-mount retrofit scenarios, but vertical and 30-degree stand installations work fine.
7. Wellmate WM-6 19.8-Gallon Fiberglass Tank — Best Compact Fiberglass
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
19.8-gallon fiberglass
Quick Connect fitting
Replaceable air cell
Non-corroding
Pros
- Quick Connect fitting for easier field servicing
- Greater drawdown than comparably sized steel tanks
- Fiberglass won't rust in corrosive environments
- Often a one-person install
- Replaceable air cell
Cons
- Smaller drawdown than larger Wellmate models
- Same 30-degree mounting constraint as other Wellmate tanks
The Wellmate WM-6 is the smaller sibling of the WM-9, delivering 19.8 gallons of total volume in the same fiberglass composite shell. For a small-booster or shallow-well jet application where corrosion resistance matters, this is the right-sized tank.
The published drawdown is roughly 6-7 gallons, which is in line with a 20-gallon steel tank but with the fiberglass advantage. The captive-air design means the air cell uses tank volume efficiently, so you get more usable water per gallon of total capacity than a bladder tank of the same size.
Reviewer feedback has been positive, with 79% rating this tank 5 stars. The most common compliment is the easy installation — at 26 pounds, a single person can position this tank without help, which is not true for larger steel tanks.
Compact residential and cottage use
This tank fits where larger 30+ gallon steel or fiberglass tanks cannot. Think small homes, cottages, cabins, and basement mechanical rooms with a 16-inch footprint constraint. The 26-pound empty weight also makes it manageable for one-person installs.
Not for high-demand households
The 6-7 gallon drawdown is not enough for households running two showers at once. If your demand profile is heavier, step up to the WM-9 or a steel tank in the 30+ gallon range.
8. Red Lion RL-SWJ50/RL6H 1/2 HP Jet Pump and Tank Package — Best All-in-One Package
Red Lion RL-SWJ50/RL6H 1/2 HP Shallow Well Jet Pump/Tank Package, 12.6 GPM Cast Iron Pump with 5.8 Gallon Pressure Tank, Red/White, 97080503
1/2 HP cast iron pump
5.8-gallon tank
12.6 GPM
Factory assembled
Pros
- All-in-one factory-assembled pump and tank system
- Heavy-duty cast iron casing and volute
- Glass-filled thermoplastic impeller and diffuser
- Dual voltage 115V/230V motor
- Includes 30/50 pressure switch
- gauge
- and stainless steel hose
Cons
- 2-year warranty is shorter than tank-only options
- Pump and tank must be replaced together at end of life
If you are starting from scratch with a shallow well and need a complete booster package, the Red Lion RL-SWJ50/RL6H is the most straightforward path. The pump and tank come factory-assembled, pre-plumbed, and tested. You bolt it down, connect suction and discharge, wire it, and you have a working booster system.
The 1/2 HP cast iron pump delivers 12.6 GPM at 5-foot suction lift and 30 PSI, with a 148-foot max head. The dual-voltage motor is factory-set to 230V but reconfigurable to 115V, which is useful if your panel is already wired for one or the other.
What I like most about this package is that the pump and tank are matched at the factory. The 5.8-gallon steel tank with high-grade diaphragm is sized correctly for the pump’s flow curve, so there is no guesswork on whether your tank is too small or too large for the pump.
New shallow well installations
If you are replacing a failed shallow-well jet pump and your old tank is also marginal, the package approach saves a trip to the plumbing supply house and ensures the components are matched. The factory assembly also means fewer fitting leaks in the first year.
Shorter warranty and locked component pairing
The 2-year warranty is shorter than the 5- and 7-year warranties on tank-only options, and when the pump or tank eventually fails, you typically replace the whole package because the components are matched. For a long-term install, a separate pump and tank may give you better service-life flexibility.

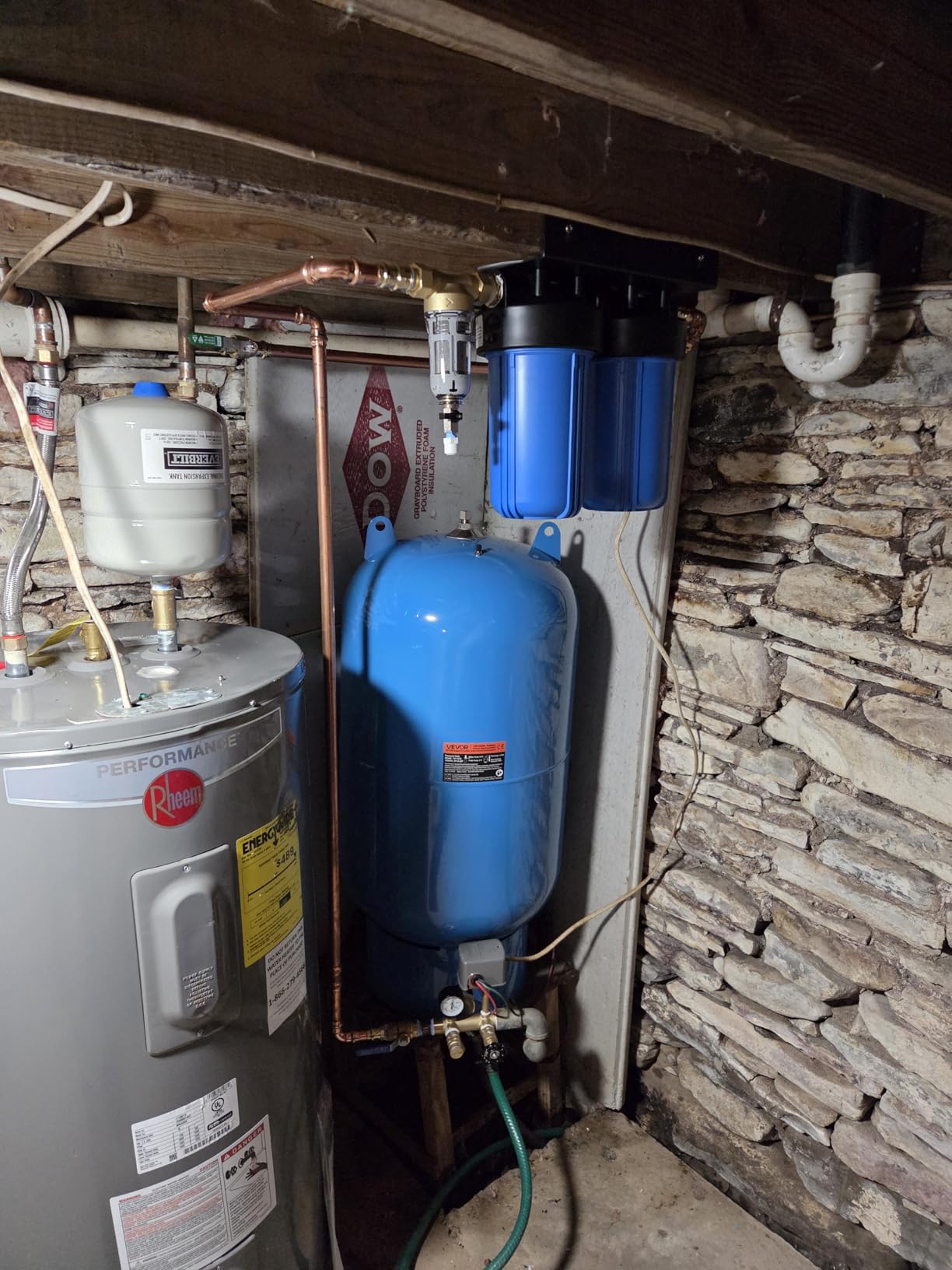

9. VEVOR 34-Gallon Vertical Well Pressure Tank — Best for Irrigation Booster Duty
VEVOR 34-Gallon Vertical Well Pressure Tank, Pre-Charged Pressurized Water Tank for Well Pumps, Heavy-Duty Carbon Steel Water Storage Container for Home, School, Farm & Irrigation Systems
34-gallon carbon steel
116 PSI max
1-inch NPT connection
Heavy-duty build
Pros
- 34-gallon capacity for whole-house or irrigation duty
- 1.5mm thickened carbon steel construction
- 116 PSI max working pressure
- 1-inch NPT connector for leak-proof install
- Suitable for home
- school
- agricultural
- and industrial use
Cons
- Not certified for drinking water use
- Not frost-proof for cold-climate outdoor installs
- Some users report base modification needed for installation
The VEVOR 34-Gallon is the tank I look at when the application is irrigation, agricultural, or industrial — anywhere the water does not need to be NSF-certified for human consumption. The 1.5mm thickened carbon steel shell is heavier-duty than most residential tanks, and the 116 PSI max working pressure gives you headroom for higher-pressure irrigation zones.
The published specs are 2.5 BAR (36.2 PSI) pre-charge and 8 BAR (116 PSI) max internal pressure, which lines up with a 40/60 pressure switch after you set the pre-charge to 38 PSI. The 70°C (158°F) max working temperature is also higher than many comparably priced tanks.
For an irrigation booster feeding a 2-3 zone sprinkler system, this tank gives you the volume to handle multi-zone valve cycling without the pump short-cycling. I would not use it on a residential potable water line without an additional filter or treatment, since VEVOR does not certify it for drinking water.
The 50.9-pound empty weight is the other consideration — this is a heavier tank than the residential options, and you may want a second pair of hands for the install. Reviewers also note the base may need a small modification to sit level on uneven basement floors.
Irrigation, agricultural, and industrial duty
This is the right tank for non-potable applications — lawn sprinkler boosters, livestock water, barn plumbing, light-industrial process water, and rainwater distribution. The 116 PSI rating handles higher-pressure irrigation valves without tank strain.
Not certified for indoor potable use

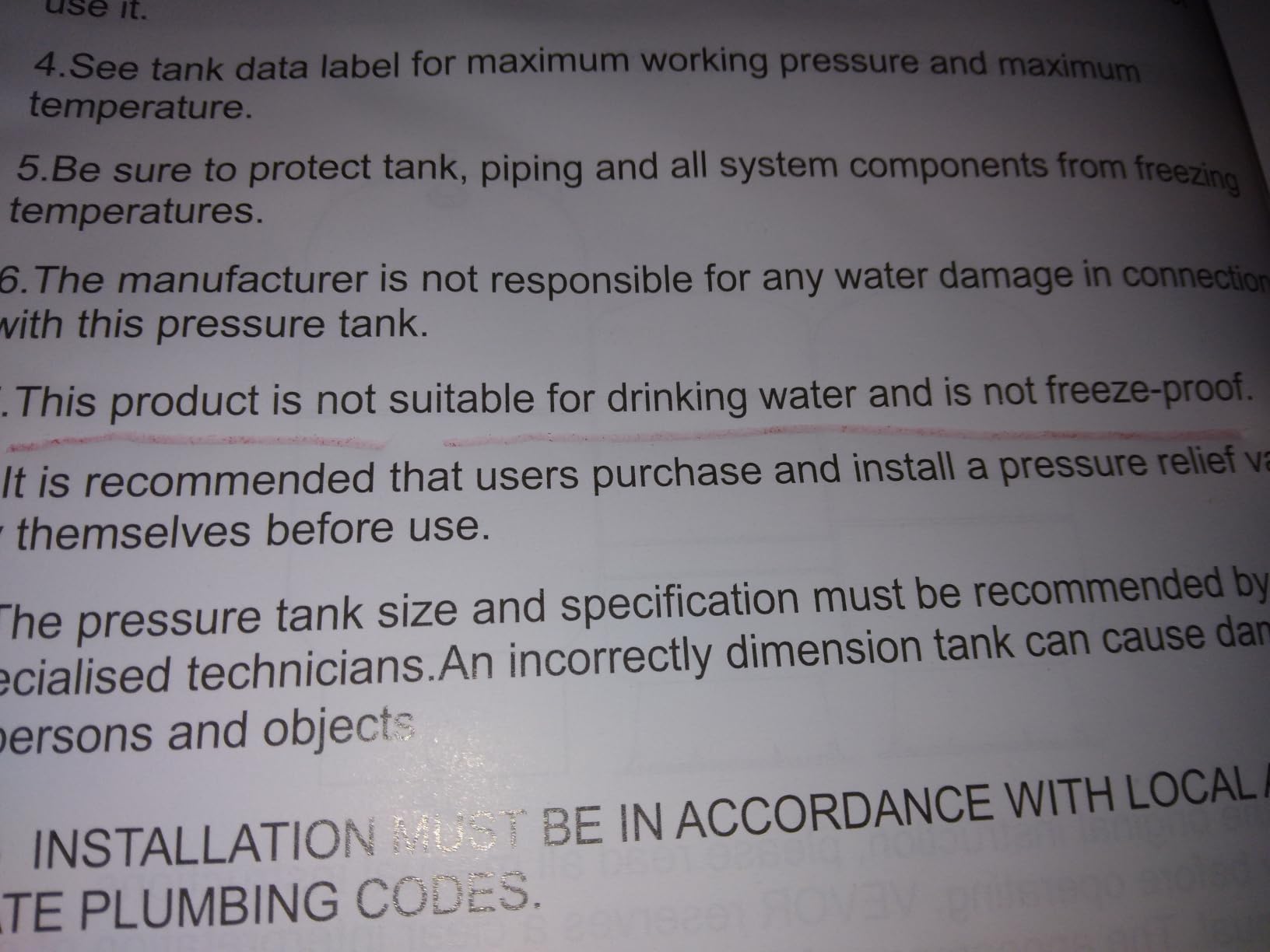

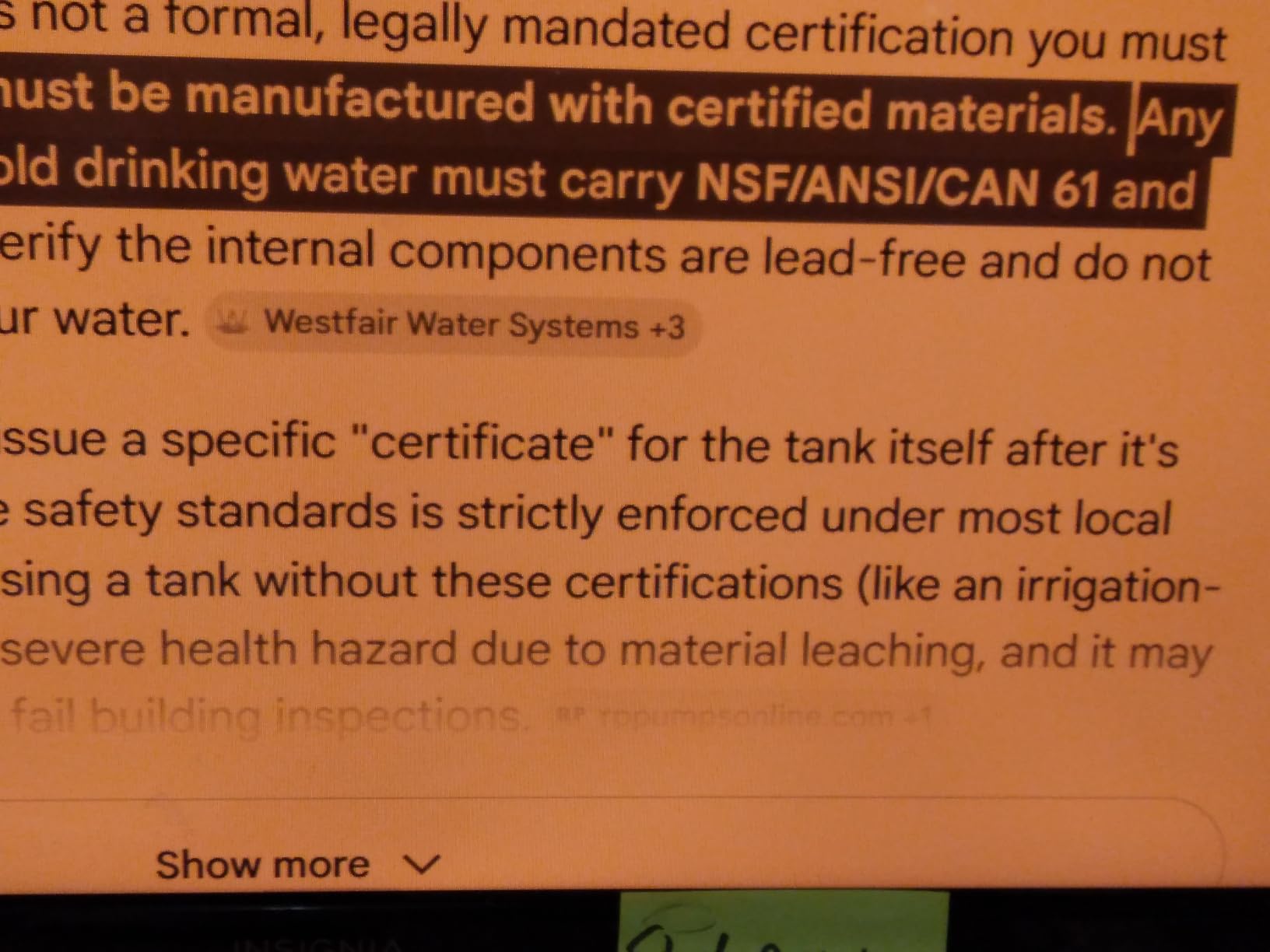

VEVOR does not certify this tank for drinking-water contact. If you are on a residential well or city water line feeding the kitchen tap, choose an NSF-certified tank from WaterWorker, Amtrol, Wellmate, or Red Lion.
10. VEVOR 30-Gallon Vertical Well Pressure Tank — Best Mid-Size Non-Potable Tank
VEVOR 30-Gallon Vertical Well Pressure Tank, Pre-Charged Pressurized Water Tank for Well Pumps, Heavy-Duty Carbon Steel Water Storage Container for Home, School, Farm & Irrigation Systems
30-gallon carbon steel
87 PSI max
1-inch NPT
Mid-capacity irrigation
Pros
- 30-gallon vertical tank for whole-house or irrigation duty
- 1.2mm thickened carbon steel construction
- 87 PSI max working pressure
- 1-inch NPT connector
- 194F max working temperature
Cons
- Not certified for drinking water use
- Not frost-proof for cold-climate outdoor installs
- Some users report base modification needed for installation
The VEVOR 30-Gallon is the smaller sibling of the 34-Gallon, with a slightly lower max working pressure (87 PSI versus 116 PSI) but a higher max operating temperature (194°F versus 158°F). For most residential irrigation boosters running at standard 30/50 or 40/60 switch settings, the 87 PSI max is more than enough headroom.
The 30-gallon total volume gives you about 10 gallons of drawdown on a 30/50 switch — a step down from the 34-gallon model, but still enough for a 2-3 zone irrigation system or a small-booster residential retrofit where NSF certification is not required.
I like the 194°F temperature rating for solar thermal or hot-side recirculation loops where other budget tanks are rated to 150°F. The 1.2mm carbon steel shell is thinner than the 34-gallon model, which is what drops the max working pressure, but for the use cases this tank is built for, it is well within margin.
The 29.8-pound empty weight is manageable for a one-person install, which is one reason I would pick this over the 34-gallon if the 87 PSI rating covers your application.
Mid-size non-potable residential or farm use
This tank fits applications where you do not need NSF certification but do need a 30-gallon drawdown buffer. Rainwater distribution to outdoor faucets, garage and shop plumbing, and barn or stable water systems are all good fits.
Lower pressure ceiling than the 34-gallon
If your irrigation system runs higher-pressure zones (above 80 PSI), step up to the 34-gallon model. The 87 PSI max working pressure gives you only a thin margin above a 40/60 switch setting.
How to Choose a Pressure Tank for Your Booster Pump?
Choosing a pressure tank for a booster pump comes down to four decisions: tank type (diaphragm, bladder, or air-over-water), capacity sized to your pump’s flow rate, pre-charge set 2 PSI below your pressure switch cut-in, and materials matched to your water chemistry. The rest of this guide walks through each decision.
How a booster-pump pressure tank works
A pressure tank stores water under pressure using a sealed air cushion. When you open a tap, the air pushes water out of the tank until the pressure drops to the cut-in setting on your pressure switch, which then signals the booster pump to start. When the tap closes and the tank refills, the pump shuts off at the cut-out setting.
The critical role of the tank is to deliver water between pump starts. Without a properly sized tank, the booster pump short-cycles every time a tap opens — turning on for one second, off for ten seconds, on for one second, off for ten seconds. This pattern burns out pump motors in 1-3 years. A correctly sized tank reduces pump starts by 70-90%, which is the difference between a pump that lasts 5 years and one that lasts 15 years.
A pressure tank for a booster pump is functionally identical to a well-pressure tank. The same brands (Amtrol, Well-X-Trol, Wellmate, Water Worker, Red Lion, Flexcon, Pentair) serve both markets, and the same sizing rules apply. The booster-pump angle changes how you size it — see the worked example below.
Diaphragm vs bladder vs air-over-water
Three internal designs exist, and they behave differently on a booster pump:
Diaphragm tanks use a butyl or EPDM diaphragm fixed to the tank shell by a hoop ring (as in the Amtrol WX series) or by the tank shape itself (as in the WaterWorker design). The diaphragm flexes but does not stretch, which is why these tanks resist the chronic waterlogging that destroys bladder tanks. Diaphragm tanks are the most common choice for residential booster pumps because they are maintenance-free and last 10-15 years on average.
Bladder tanks use a replaceable EPDM or butyl bladder that expands and contracts inside a steel shell. The bladder is a wear item — when it fails, the tank waterlogs. Bladder tanks are easier to service (swap the bladder instead of replacing the whole tank), but the failure mode is more common than diaphragm tanks. Forum plumbers on DoItYourself.com consistently recommend diaphragm tanks over bladder tanks for low-maintenance installs.
Air-over-water tanks have no internal barrier — water and air share the tank directly. These tanks need an air-volume control or air-charging valve to maintain the air cushion, and they are the highest-maintenance option. They are rare in residential booster installs today, but you may see them on older systems. Most contractors replace air-over-water tanks with diaphragm or bladder tanks when the original fails.
Sizing a pressure tank for a booster pump
The right tank size depends on your booster pump’s flow rate, your household’s peak demand, and the drawdown (usable water) you want between pump cycles. The rule of thumb: drawdown should be at least 1 gallon per GPM of pump flow.
Worked example for a 1 HP booster pump:
1 HP booster pump flow rate: 10 GPM
Minimum drawdown target: 10 gallons
Pressure switch setting: 30/50 (40 PSI pressure differential)
Required total tank volume: roughly 25-30 gallons
Recommended tank: 32 gallons (Amtrol WX-203 or equivalent)
For a 2-3 bedroom home with a 1 HP booster, a 32-gallon tank is the typical recommendation. For larger homes with a 1.5 HP or 2 HP booster, step up to a 44-gallon or 62-gallon tank. Reviewers on Reddit r/Plumbing consistently recommend 44-86 gallons for a 3-bedroom home with a 1 HP booster.
For a reverse-osmosis (RO) booster pump, the math is different. RO boosters typically push 1-3 GPM through a membrane, so a small 2-4.4 gallon tank is correct. Do not size an RO booster tank the same as a whole-house booster tank — oversized RO tanks cause the pump to short-cycle against low membrane flow.
For an irrigation booster, size the tank to your zone valve count. A 2-zone sprinkler system on a 10 GPM booster typically wants a 20-30 gallon tank. A 4-6 zone system wants 30-44 gallons.
If you are sizing for a constant-pressure system with a cycle stop valve (CSV), the tank can be smaller — typically 2-4 gallons — because the CSV handles pump cycling. This is a niche booster-pump application, but it is one most “best pressure tank” articles miss.
Pre-charge pressure setup
Pre-charge is the air pressure sealed inside the tank above the diaphragm. The pre-charge should be set to 2 PSI below your pressure switch’s cut-in setting. For a 30/50 switch (cut-in 30 PSI, cut-out 50 PSI), set the pre-charge to 28 PSI. For a 40/60 switch, set it to 38 PSI.
Setting the pre-charge is a five-minute job. Here is the step-by-step:
Turn off the booster pump and shut off power at the breaker.
Open a faucet to drain the tank and relieve system pressure.
Remove the air valve cap on top of the tank (looks like a Schrader tire valve).
Check the air pressure with a tire-pressure gauge.
Add or bleed air to reach 2 PSI below your cut-in setting.
Replace the air valve cap, close the faucet, restore power, and restart the pump.
Check the pre-charge annually. Air seeps through the valve over time, and a tank that loses pre-charge will waterlog and short-cycle the pump. A standard bicycle pump works for topping off.
Vertical vs horizontal installation
Vertical tanks (most floor-standing models like the WaterWorker 153921 and Amtrol WX-203) are the standard for residential booster installs because the air cushion sits naturally at the top of the tank. Horizontal tanks exist for tight basement and crawlspace installs where vertical clearance is limited.
Most modern diaphragm and bladder tanks can be installed in any orientation without performance penalty, but check the manufacturer spec sheet — some Wellmate fiberglass models require a minimum 30-degree angle from horizontal and cannot lie flat.
Steel vs fiberglass vs stainless
Steel tanks (WaterWorker, Amtrol, Red Lion, VEVOR) are the standard for residential booster duty and the least expensive option. They work well with neutral-pH water and last 10-15 years on average. The failure mode is internal corrosion once the pre-charge is lost and the air cushion collapses.
Fiberglass tanks (Wellmate WM series) resist corrosion in aggressive water — high iron, low pH, high TDS, or salt content. They are the right call for coastal wells and mineral-heavy water. They last 15-20+ years in the same conditions where steel tanks fail in 5-8 years.
Stainless steel tanks exist for industrial and food-grade applications but are rare in residential booster installs. The cost premium is hard to justify for whole-house use unless your water is exceptionally aggressive.
For a deeper dive on tank materials and a comparison of related categories, see our 8 Best Air Compressor Tanks for Workshops guide, which covers steel and aluminum tank construction in adjacent applications.
Frequently Asked Questions
Do I really need a pressure tank with a booster pump?
Yes. Without a pressure tank, a booster pump short-cycles every time a tap opens – turning on for one second, off for ten seconds. This pattern burns out pump motors in 1-3 years. A correctly sized pressure tank reduces pump starts by 70-90% and extends pump life to 10-15 years.
What size pressure tank do I need for a 1 HP booster pump?
For a 1 HP booster pump delivering 10 GPM, you want at least 10 gallons of drawdown. On a 30/50 pressure switch, drawdown is roughly 33% of total tank volume, so a 30-32 gallon tank is the right size. A 44-gallon tank gives you extra margin for peak demand.
Is a bladder tank better than a diaphragm tank for a booster pump?
For most residential booster installs, a diaphragm tank is the better choice. Diaphragm tanks are lower-maintenance because the diaphragm flexes but does not stretch. Bladder tanks are easier to service (swap the bladder) but fail more often. For whole-house booster duty where you want a 10-15 year service life, choose a diaphragm tank.
How do I set the pre-charge pressure on a booster-pump pressure tank?
Set the pre-charge to 2 PSI below your pressure switch cut-in setting. For a 30/50 switch, set 28 PSI. For a 40/60 switch, set 38 PSI. Drain the tank first, check with a tire gauge, add or bleed air, and check the pre-charge annually because air seeps through the valve over time.
How long does a pressure tank last on a booster pump?
A well-maintained steel pressure tank lasts 10-15 years on a residential booster pump. Fiberglass tanks last 15-20+ years. Bladder and diaphragm tanks fail earlier when the internal barrier ruptures – usually 5-10 years for bladder tanks and 10-15 years for diaphragm tanks. Annual pre-charge checks extend tank life.
Can I install a pressure tank horizontally with a booster pump?
Most modern diaphragm and bladder tanks can be installed in any orientation, including horizontal. The exception is Wellmate fiberglass tanks, which require a minimum 30-degree angle from horizontal and cannot lie flat. Check the manufacturer spec sheet before mounting horizontally.
What is the best pressure tank for an RO booster pump?
For a reverse-osmosis booster pump, a small 2-4.4 gallon tank is correct. RO boosters push 1-3 GPM through a membrane, so a smaller tank prevents the pump from short-cycling against low membrane flow. Oversized tanks cause RO booster short-cycling, not improved performance.
Are stainless steel pressure tanks worth it for booster pumps?
For residential whole-house booster duty, stainless steel tanks are rarely worth the cost premium. Steel tanks with NSF-certified liners handle neutral-pH water for 10-15 years. Stainless becomes worth the investment only for industrial, food-grade, or exceptionally aggressive water chemistry where fiberglass is not rated.
Verdict: Which Pressure Tank Should You Buy for Your Booster Pump
For most residential booster-pump installs in 2026, the WaterWorker 153921 44-Gallon Vertical Well Tank is the right starting point. NSF certification, a butyl diaphragm, and enough drawdown for a 2-3 bedroom home running two showers plus a washing machine at the same time. If your footprint is tight, the Amtrol WX-202 20-gallon is the plumbers’ pick for a smaller install. For corrosion-prone water, the Wellmate WM-9 fiberglass tank will outlast any steel option.
If you are installing an irrigation booster, skip the NSF requirement and pick the VEVOR 34-Gallon for higher-pressure zones or the VEVOR 30-Gallon for standard zones. For a brand-new shallow-well jet pump install where you want pump and tank matched at the factory, the Red Lion RL-SWJ50/RL6H all-in-one package is the most straightforward path.
The best pressure tanks for booster pumps all share three traits: a pre-charged diaphragm or bladder, NSF/ANSI 61 certification for potable water (when applicable), and a warranty of at least 5 years. Match those three to your pump’s flow rate and your household’s peak demand, and you will end up with a tank that protects your booster pump for 10-15 years. Set the pre-charge to 2 PSI below your cut-in pressure, check it annually, and your booster pump will outlast every other component in your water system.
