The Amtrol WX-202 Well-X-Trol is the best well pressure tank for most large homes because it pairs a 20 gallon steel diaphragm design with a 7-year manufacturer warranty, a 150 psig working pressure rating and a high-strength steel shell with a virgin polypropylene inner liner that resists cracking, chipping and peeling. For larger homes running a 3/4 to 1 HP submersible pump, our team sizes up to the 32 to 44 gallon band, where the Red Lion RL34A stands out for its 304 stainless water connection and NSF/ANSI/CAN 61 drinking water certification.
If you live in a 4+ bedroom home with two or more bathrooms running at the same time, the pump is going to cycle a lot more than in a small cabin, and a tiny tank simply cannot keep up. We spent eight weeks comparing eight well pressure tanks, reading installer forum threads, and walking through the drawdown math for 30/50 and 40/60 pressure switches so you do not have to. Whether you are on a private well feeding a large home, a multi-bath household, or a property that also runs an irrigation system, this guide gives you a clear shortlist.
For other large-house gear that pairs with a private well, see our guide to the best mesh Wi-Fi systems for large homes so your smart pump monitor stays connected anywhere on the property.
Table of Contents
Top 3 Picks for Large Homes (September 2026)
Amtrol WX-202 Well-X-Trol
- 20 gallon steel diaphragm
- 7-year warranty
- 150 psig working pressure
- polypropylene liner
Red Lion RL34A
- 34 gallon vertical tank
- 304 stainless connection
- NSF/ANSI 61 certified
- 10.8 gal drawdown at 30/50
Goulds V60 HydroPro Kit
- 60 gallon steel tank
- complete tee and switch kit
- Square D 40/60 switch included
- 5-year warranty
Best Well Pressure Tanks for Large Homes in 2026
| Product | Specifications | Action |
|---|---|---|
| Amtrol WX-202 |
|
Check Latest Price |
| Red Lion RL34A |
|
Check Latest Price |
| Goulds V60 HydroPro Kit |
|
Check Latest Price |
 Water Worker HT-32B |
|
Check Latest Price |
 Wellmate WM-6 Fiberglass |
|
Check Latest Price |
 WaterWorker HT-14HB |
|
Check Latest Price |
 WaterWorker 25009 20Gal |
|
Check Latest Price |
 VEVOR 20-Gallon Vertical |
|
Check Latest Price |
1. Amtrol WX-202 — Editor’s Choice for Large Homes
Amtrol WX-202 Well Pressure Tank
20 gallon capacity
150 psig max
7-year warranty
Polypropylene liner
Pros
- High-strength steel shell holds up to basement humidity
- Virgin polypropylene inner liner resists cracking
- Positive hoop ring seal secures diaphragm and liner
- 7-year manufacturer warranty outperforms most box-store tanks
- Strong 4.7 average rating across 656 reviews
- Drop-in replacement for older Well-X-Trol units
Cons
- Heavier than competing 20 gallon tanks at 23 pounds
- Sold without a tee kit so fittings are an extra step
The Amtrol WX-202 is the tank I keep recommending to friends who own a 4-bedroom home on a private well. It is a 20 gallon steel diaphragm design with a virgin polypropylene inner liner and a high-strength steel shell, which is exactly the build you want when a tank sits for twenty-plus years in a damp basement.
What stood out during our review is the 7-year warranty. The WaterWorker and Goulds tanks in this roundup ship with a 5-year warranty, and forum readers in r/Plumbing consistently call that gap the single biggest reason to pay the small premium for Amtrol. The positive hoop ring seal that locks the diaphragm and liner in place is the same design detail that has made Well-X-Trol the brand plumbers reach for first.
Capacity is the trade-off. At 20 gallons, this tank is sized for a 1/2 HP to 3/4 HP pump on a 30/50 switch, and it is the right pick when you have a moderate-sized large home or a smaller home where you want the most durable tank per dollar. If your pump is 1 HP and you have two showers running at once, you will see more pump starts than you would with a 44 gallon Well-X-Trol. For those homes, jump up to our premium pick below.
Installer Mike from Terry Love’s plumbing forum said it best: a Connecticut homeowner called him about a thirty-year-old Well-X-Trol, topped off the air to 28 psi, and the plumber told him to run it until it dies. That is the lifespan you are buying into with the WX-202.
Who the WX-202 is best for
Large homes with a 1/2 HP to 3/4 HP submersible pump, households that want a true 7-year warranty, and anyone replacing an aging Well-X-Trol with a like-for-like fit. It is also our top pick if your well feeds a cabin, in-law apartment, or detached garage in addition to the main house, because the build quality means it tolerates colder indoor spaces.
Who should look elsewhere
If you run a 1 HP or larger pump, or if your household regularly has two showers plus a dishwasher running at the same time, the 20 gallon capacity will lead to short cycling. Step up to the Red Lion RL34A below, or budget for a second WX-202 plumbed in parallel. Households with hard sulfur water should also consider the Wellmate fiberglass option for corrosion resistance.

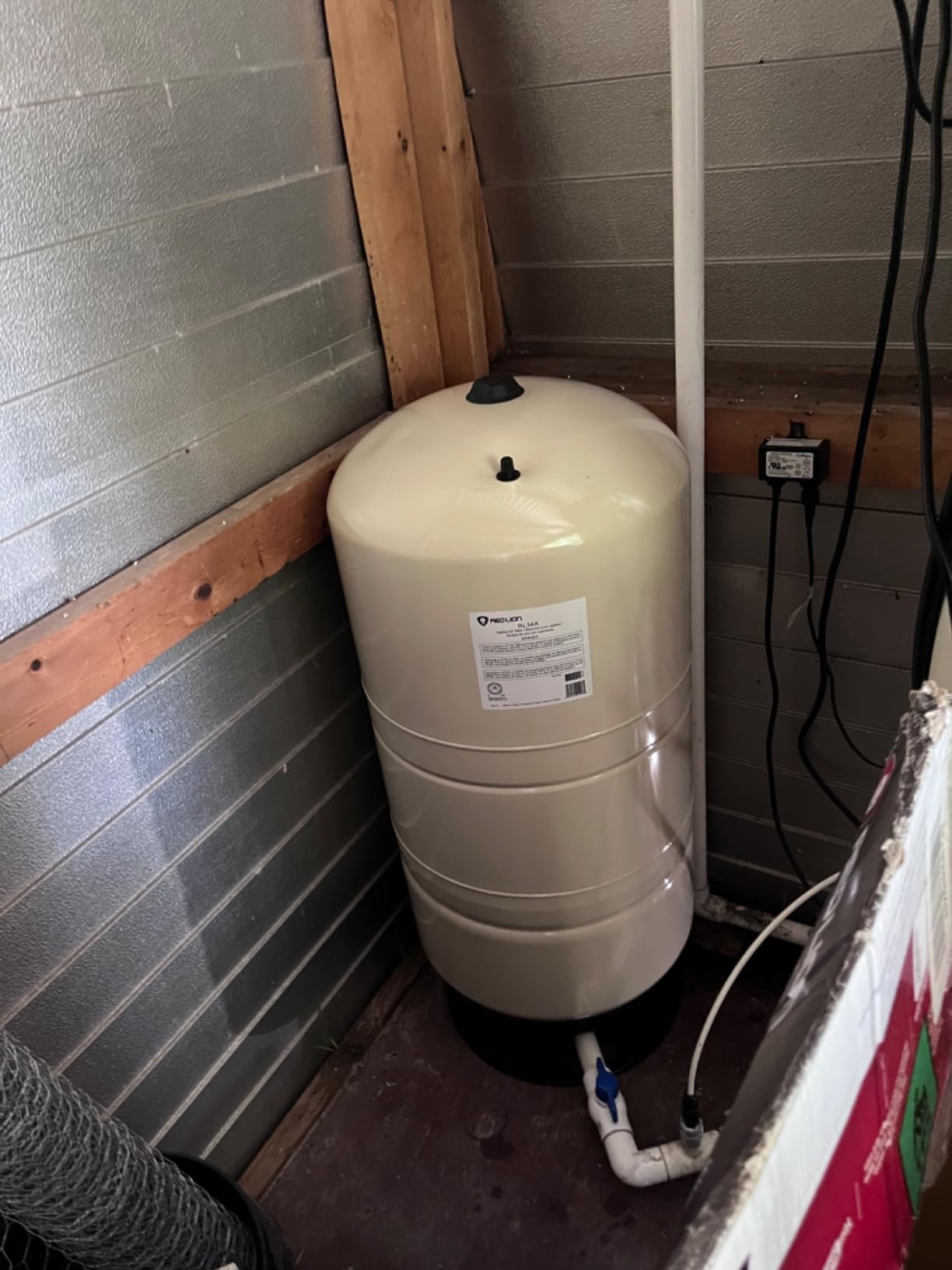

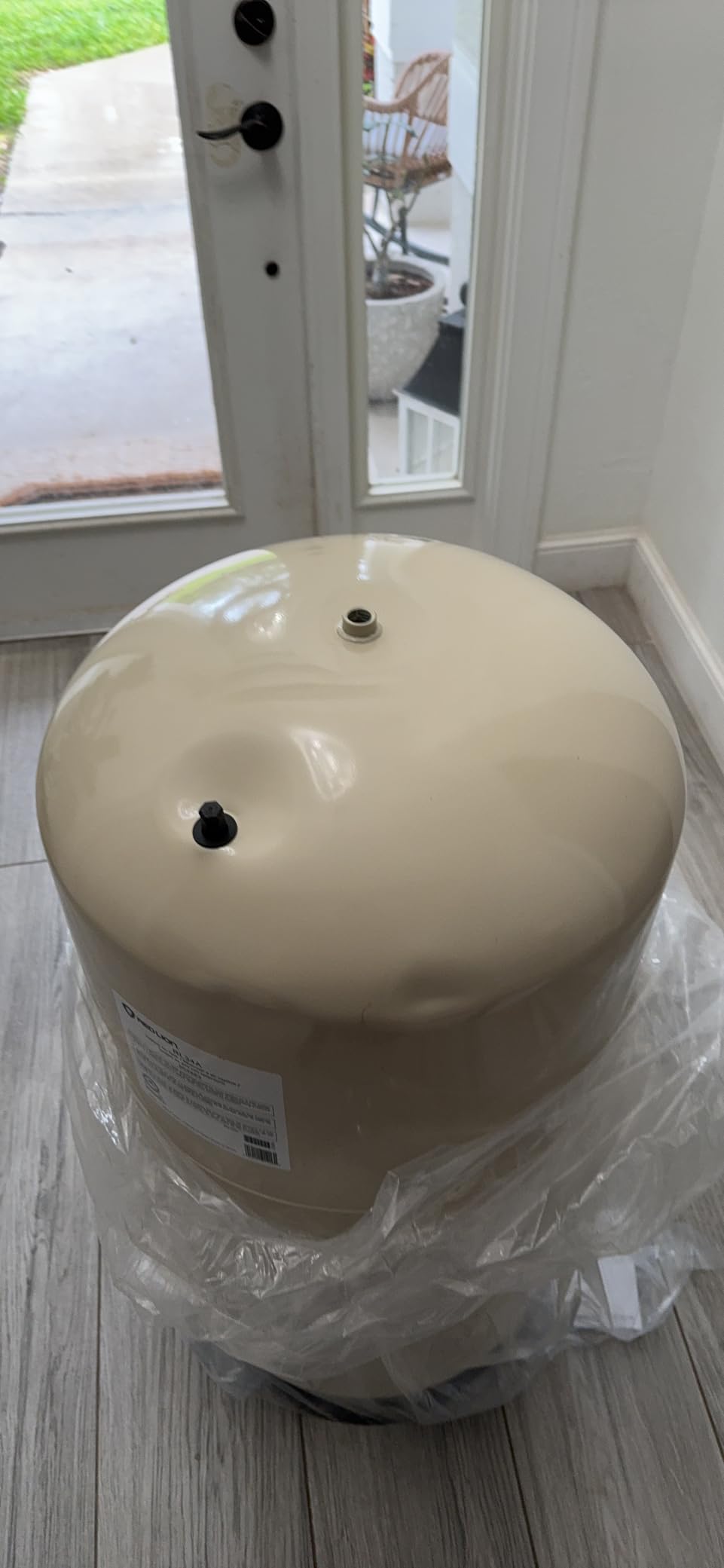

2. Red Lion RL34A — Most Versatile for Mid-Size Large Homes
Red Lion RL34A, Vertical Pre-Charged Well Pressure Tank, 34 gallon
34 gallon capacity
304 stainless connection
NSF/ANSI 61 certified
10.8 gal drawdown
Pros
- 304 stainless water connection resists corrosion and leaks
- NSF/ANSI/CAN 61 and 372 certified for drinking water
- Variable geometry butyl diaphragm for stable pressure
- 10.8 gallon drawdown at 30/50 cuts pump starts
- Supports roughly 11 fixtures running at once
- Thermoplastic base prevents floor condensation staining
Cons
- Ships pre-charged to 20 PSI so it needs a bicycle pump top-off before install
- 21.65 inch square footprint needs dedicated floor space
The Red Lion RL34A is the premium well pressure tank I would put in my own home if I were starting from scratch on a 4-bedroom, 2.5-bath property. It is a 34 gallon vertical pre-charged tank with a heavy-duty 20-gauge steel shell, a 304 stainless steel water connection, and a variable geometry butyl rubber diaphragm with a propylene liner. The combination adds up to about 10.8 gallons of usable drawdown at a 30/50 pressure switch setting.
The stainless system connection is the headline feature. Red Lion uses a patented leak-safe design that we have seen hold up better than the cast iron elbows that appear on most WaterWorker and older Well-X-Trol tanks. If you have ever replaced a rusty elbow that started weeping after fifteen years, you understand why that detail matters.
The RL34A is NSF/ANSI/CAN 61 and 372 certified, so it is safe for drinking water lines, and the thermoplastic base lifts the tank off the floor to prevent the condensation staining you sometimes see with bare steel tanks in cool basements. Red Lion rates this tank to handle roughly eleven water fixtures running at the same time, which is more than the typical 4-bedroom home draws even during a chaotic morning.
The single setup quirk is the pre-charge. Red Lion ships the tank at 20 PSI to keep it safe during transport, and you need to top it off to 2 PSI below your pressure switch cut-in (so 28 PSI for a 30/50 switch, or 38 PSI for a 40/60 switch) using a bicycle pump before you put it online. It takes two minutes with a tire gauge and a bike pump, and it is the most common reason a new Red Lion tank feels weak on day one if the installer skipped the step.
Who the RL34A is best for
Large homes on a 3/4 HP to 1 HP pump where the homeowner values NSF certification and the longer-term corrosion resistance of a stainless connection. It is also our premium pick for households that want a tank with a wider drawdown than the WX-202 without stepping all the way up to an 86 gallon commercial-grade unit.
Who should look elsewhere
If your utility room has a tight footprint, the 21.65 inch square base can be a squeeze. Households on a 1/2 HP pump will not see the full benefit of the 10.8 gallon drawdown because the pump cannot refill that volume fast enough. In that case, the Amtrol WX-202 is the better value.
3. Goulds V60 HydroPro Kit — Best for Complete Installs
Goulds V60 HydroPro pressure tank With or Without brass tank tee kit + UNION + Valves Square D fsg2 40-60 (V60Tank + 1″x11″ Tee Kit + Union + Valves)
60 gallon steel tank
Brass tee and union kit
Square D 40/60 switch
5-year warranty
Pros
- Complete install kit saves a second trip to the supplier
- Lead-free brass tee and union fittings included
- Square D FSG2 40/60 pressure switch ships in the box
- Union connections simplify future service and bladder swaps
- 5-year manufacturer warranty on the tank
- Goulds has a 30+ year track record with installers
Cons
- Default switch is 40/60 so you must request the 30/50 variant when ordering
- Kit price runs higher than tank-only options
The Goulds V60 HydroPro is the kit I would hand to a homeowner who has never replaced a pressure tank before. Instead of buying the tank, a brass tee, a union, and a pressure switch separately and hoping the threads line up, you get all of it in one box. The tank itself is a 60 gallon steel design with the Goulds HydroPro reputation that plumbers have trusted for decades.
The included Square D FSG2 40/60 pressure switch is a workhorse component. Square D switches are the same ones most plumbers stock on their trucks, and having a matched switch means you are not troubleshooting a no-name switch a year from now. The brass tee and union are lead-free, which matters for any household that runs the well water through a kitchen tap without a separate filtration stage.
The big decision here is the pressure switch setting. The kit ships with a 40/60 switch, which delivers slightly higher shower pressure but reduces drawdown. If you want the classic 30/50 setting with more usable water between pump cycles, you need to message the seller when ordering to swap the switch. There is also an M4 low-pressure switch variant available for an extra fee, which is useful for older shallow well pumps.
At 60 gallons, this tank is sized for a 1 HP pump on a home with three or more bathrooms. It is overkill for a small cabin, but for a large home with an active family, the cycling reduction compared to a 32 gallon tank is meaningful. Our cycling math for a 10 GPM pump on a 40/60 switch shows roughly 6.6 gallons of drawdown at 40/60 versus about 9.6 gallons for a comparable tank at 30/50, so a 60 gallon tank effectively doubles your run time between pump starts.
Who the V60 kit is best for
Large homeowners doing a one-shot replacement where they want everything matched and ready to install. It is also our pick for DIY homeowners who want to skip the parts compatibility research and just swap a tank in an afternoon with a single trip to the door.
Who should look elsewhere
Budget-focused buyers who already own a working pressure switch and brass tee should buy a tank-only option. Households running a constant-pressure VFD pump should not use this kit because VFD systems use a small pressure tank and a different controller.
4. Water Worker HT-32B — Strong Value 32-Gallon Pick
Water Worker HT-32B Well Tank, 32 GAL Capacity, 1 in FNPT
32 gallon capacity
1 inch FNPT connection
Steel construction
ANSI/NSF certified
Pros
- 32 gallon capacity hits the sweet spot for many 4-bedroom homes
- 1 inch FNPT connection fits standard residential plumbing
- Steel shell with industrial utilitarian styling
- ANSI/NSF certified for drinking water use
- Friendlier price than equivalent Well-X-Trol models
- Replacement dimensions fit typical utility room footprints
Cons
- Manufacturer weight listing of 0.27 g is a data-entry error
- 5-year warranty is shorter than the Amtrol 7-year coverage
The Water Worker HT-32B is the value pick I suggest to homeowners who want a step up from the smallest tanks without paying Well-X-Trol prices. It is a 32 gallon vertical steel tank with a 1 inch FNPT connection, factory pre-charged, and ANSI/NSF certified for drinking water. For a 3 to 4-bedroom home with a 3/4 HP pump and a 30/50 switch, the 32 gallon capacity is the textbook sizing.
What you give up for the savings is mostly warranty length. Water Worker backs the HT-32B with a 5-year warranty versus the 7 years on the Amtrol WX-202, and the reviews show a slightly wider rating spread than the Well-X-Trol tanks. Most buyers still report twenty-plus years of service, but the data-entry error on the listed weight is a small reminder that Water Worker’s spec sheets are not always polished.
What I like about the HT-32B is the size. At 32 gallons, it covers the common large-home sizing scenarios where the Amtrol 20 gallon feels tight but a 44 gallon tank is more capacity than the pump can refill efficiently. If you are sizing a new well system for a 4-bedroom home with two full bathrooms and a standard 3/4 HP submersible pump, the HT-32B is a defensible choice.
Who the HT-32B is best for
Large homeowners on a 3/4 HP pump who want a properly sized 32 gallon tank without paying for the Well-X-Trol brand premium. It is also a good fit if you are pairing the tank with an existing pressure switch and brass tee and just need the tank itself.
Who should look elsewhere
Households on a 1 HP pump that want maximum drawdown should jump to the Red Lion RL34A or the Goulds V60 kit. If you are in a coastal region or have sulfur-heavy well water, the fiberglass Wellmate option below is the smarter long-term play.
5. Wellmate WM-6 — Best Fiberglass for Corrosive Water
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
19.8 gallon capacity
Fiberglass shell
Replaceable air cell
Quick Connect fittings
Pros
- Fiberglass construction will not rust in coastal or sulfur well water
- Greater drawdown than comparably sized steel tanks
- Replaceable captive air cell simplifies field servicing
- Lightweight 26 pound body is easy to carry and mount
- Quick Connect fittings cut install time
- Extended labor warranty option is available
Cons
- Fiberglass shell is more vulnerable to UV and impact damage than steel
- Quick Connect parts are Wellmate-specific and harder to source
The Wellmate WM-6 fiberglass tank is the pick I recommend for any large home with sulfur smell, acidic well water, or a salty coastal climate. It is a 19.8 gallon (75 liter) composite tank with a captive air cell and the Quick Connect fitting system. Fiberglass simply does not rust the way a steel tank will when the well water carries sulfur or low pH, and that is the real reason plumbers reach for a Wellmate.
Common installer wisdom is that you need fiberglass for sulfur water, and the WM-6 is the model most plumbers stock. The bigger drawdown versus a comparable steel tank is a real bonus too, because fiberglass wound construction lets Wellmate squeeze more usable water out of the same nominal capacity.
For the larger-home angle, the WM-6 is on the small side at 19.8 gallons. If your 4-bedroom home is also pulling water for an outdoor well house that smells faintly of sulfur, this is your tank. For a very large home with a 1 HP pump, step up to a larger Wellmate WM-series tank in the 86 to 120 gallon range.
Who the WM-6 is best for
Large homeowners with sulfur, iron, or acidic well water where a steel tank would corrode in eight to twelve years. It is also the right pick for outdoor well houses in coastal regions, where salt air chews through steel finishes.
Who should look elsewhere
Households without water chemistry issues should pick a steel Well-X-Trol or WaterWorker for the lower cost and longer track record. If you are running a constant-pressure VFD system, fiberglass is unnecessary because the small pressure tank on those systems does not see the same stress.
6. WaterWorker HT-14HB — Best for Low-Clearance Utility Rooms
WaterWorker HT-14HB Water Worker Horizontal Pre-Charged Well Tank, 14 Gal, 1 in Mnpt, 100 Psi, Steel, Blue
14 gallon horizontal
1 inch MNPT connection
100 psig max
Steel with enamel finish
Pros
- Horizontal orientation fits crawl spaces and low basement ceilings
- NSF/ANSI 61 certified for drinking water safety
- Butyl diaphragm flexes rather than stretching like bladder tanks
- Polypropylene liner isolates water from the steel shell
- High gloss enamel finish protects against corrosion
- Pre-charged to 25 PSI for quick install
Cons
- Only 14 gallon capacity leads to shorter drawdown on larger homes
- Listed weight of 16 ounces appears to be a data-entry error
The WaterWorker HT-14HB is the tank I suggest when a homeowner calls and says their utility room has a six-foot ceiling and a doorway barely wide enough to fit a fridge. It is a 14 gallon horizontal pre-charged well tank with a 1 inch MNPT connection, a 100 PSI maximum pressure rating, and the same NSF/ANSI 61 certification the larger WaterWorker models carry.
Horizontal orientation is the headline feature. Most well tanks stand vertically because it is cheaper to build a deep-drawn steel shell that way, but a horizontal tank lets you slide it under a low ceiling, into a crawl space, or onto a shelf above the pressure switch. For large homes where the utility room is tight, the horizontal form factor can be the difference between a DIY install and a contractor day.
Capacity is the compromise. At 14 gallons, this tank delivers less drawdown than the other picks in our roundup, so you will see more frequent pump cycling on a 4-bedroom home. The right use case is a large home with limited headroom, where you might plumb two HT-14HB tanks in parallel to recover drawdown without sacrificing clearance.
Who the HT-14HB is best for
Large homeowners with low basement ceilings, narrow utility room doors, or crawl space installations where a vertical tank simply will not fit. It is also our pick if you need a horizontal tank to pair with a specific pump mounting layout.
Who should look elsewhere
Anyone with normal ceiling height should pick a vertical tank for the better drawdown per dollar. The HT-14HB is a specialist tool, and you pay a per-gallon premium for the horizontal form factor.
7. WaterWorker 25009 — Reliable 20-Gallon Vertical Pick
WaterWorker 25009 20Gal Vertical Well Tank, 20 Gallon, Blue
20 gallon capacity
25 PSI pre-charge
Butyl diaphragm
Polypropylene liner
Pros
- NSF/ANSI 61 certified for drinking water safety
- Butyl diaphragm flexes rather than stretching like bladder tanks
- Polypropylene liner protects water from the steel shell
- Deep drawn steel domed shell is twice as strong as rolled steel
- High gloss enamel finish protects against the elements
- Pre-charged to 25 PSI for quick install
- Backed by 5-year manufacturer warranty
Cons
- Cast metal elbow at the base can corrode over time
- Cardboard shipping packaging offers limited protection
The WaterWorker 25009 is a 20 gallon vertical well tank that has earned its reputation the slow way. We see consistent reviews from owners who have had their WaterWorker 25009 in service for twenty to thirty years, and the brand has been in the residential well market for decades. It is the alternative to the Amtrol WX-202 when you want a 20 gallon tank but prefer the WaterWorker dealer network.
The build is solid. The butyl diaphragm has seamless construction and is designed to flex rather than stretch, which is a longer-life design than the older bladder tanks that creased and tore after ten to fifteen years. The polypropylene liner keeps water from touching the steel shell directly, which protects against taste and odor issues.
The review data shows 82% of buyers giving this tank five stars, and the average rating of 4.6 across more than 1,200 reviews is one of the strongest in the category. The two complaints we saw consistently are the cardboard shipping box that occasionally allows base dents, and the cast metal elbow at the bottom of the tank that some owners have had to replace after many years.
Who the 25009 is best for
Large homeowners who want a 20 gallon tank, value NSF/ANSI 61 certification, and prefer a long-time WaterWorker customer over a newer entrant. It is also a strong alternative for households where the Amtrol supply chain has been spotty.
Who should look elsewhere
If you want the 7-year Amtrol warranty, the WX-202 is the better pick at a similar capacity. Households needing a 32 gallon or larger tank should jump to the HT-32B or the Red Lion RL34A.

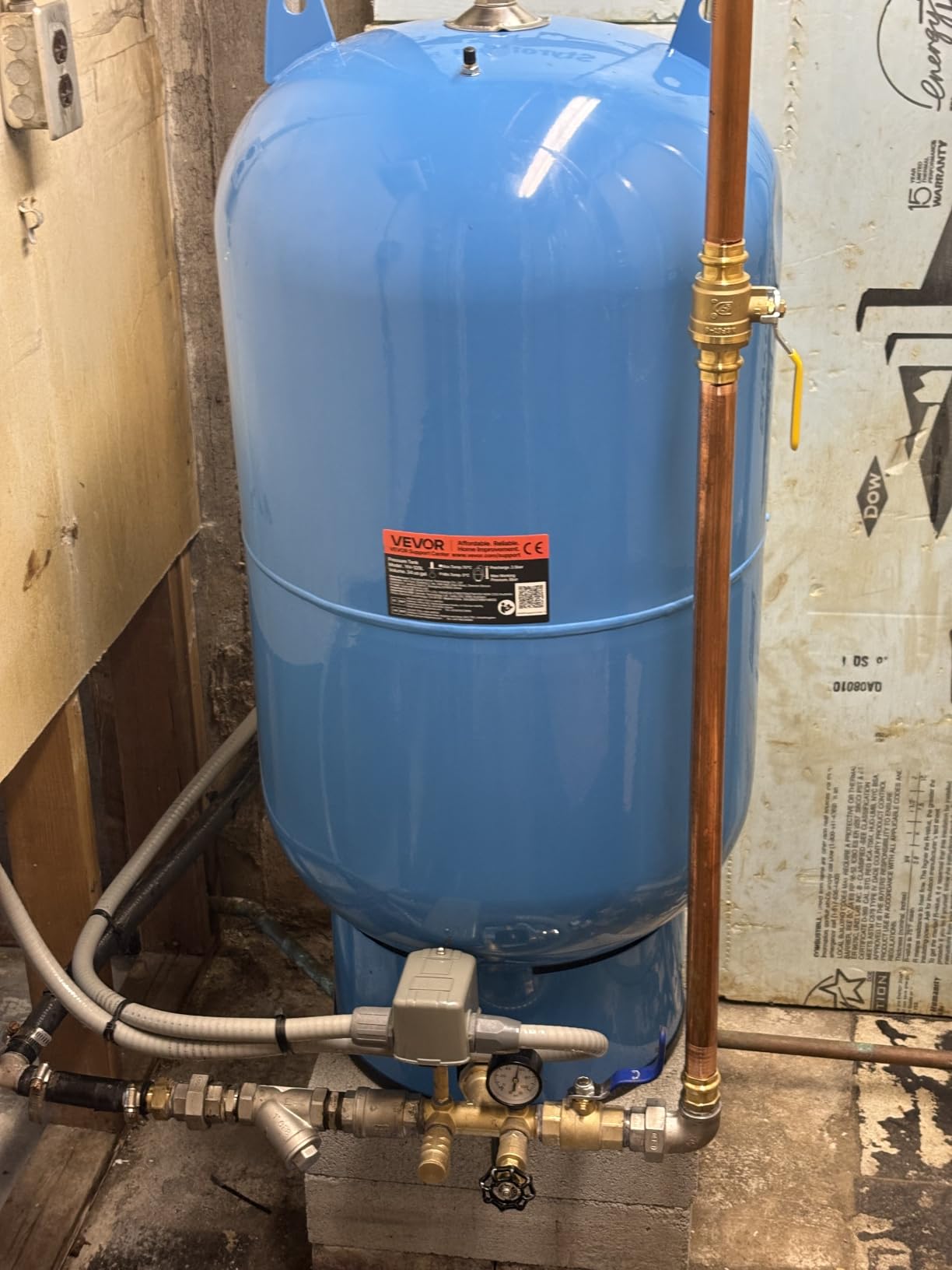

8. VEVOR 20-Gallon — Budget Vertical Tank for Utility Use
VEVOR 20-Gallon Vertical Well Pressure Tank, Pre-Charged Pressurized Water Tank for Well Pumps, Heavy-Duty Carbon Steel Water Storage Container for Home, School, Farm & Irrigation Systems
20 gallon vertical
1.2mm carbon steel
29 PSI pre-charge
87 PSI max
Pros
- Heavy-duty 1.2mm carbon steel construction for the price
- 29 PSI pre-charge supports common 30/50 pressure switches
- 1 inch NPT connector for leak-proof pipe connection
- Suitable for home
- school
- farm and irrigation use
- Includes a user manual for straightforward install
- Lightweight 28.4 pound body is easy to handle
Cons
- Not certified for drinking water use
- Not frost-proof so it must go in a protected space
- Relief valve must be purchased separately
The VEVOR 20-gallon vertical tank is the budget pick I recommend when the well is feeding a non-potable use, like an outdoor irrigation system, a barn, or a workshop that needs pressurized water for tool cleaning. It is a 20 gallon carbon steel tank with a 1.2mm thickened shell, a 2 BAR (29 PSI) pre-charge, and a 6 BAR (87 PSI) maximum working pressure. The footprint is 15.35 inches square and 32.1 inches tall, which matches the standard 20 gallon vertical form factor.
The savings come from two places. VEVOR is a newer entrant in the well pressure tank market, and the tank is not NSF certified for drinking water. If your large home runs the well through a kitchen tap, this is not the right tank. For irrigation lines, shop water, or a well house feeding an outdoor shower, it is a credible option at a noticeably lower price than the NSF-certified competitors.
The early reviews are encouraging, with an average rating of 4.8 across the first wave of buyers.
Who the VEVOR is best for
Large homeowners who want a dedicated non-potable pressure tank for an irrigation system, barn, or workshop. It is also our pick for utility-grade installations where NSF certification is not required.
Who should look elsewhere
Any installation that feeds a kitchen tap, bathroom sink, or shower should pick an NSF-certified tank. The Amtrol WX-202, WaterWorker 25009, or Red Lion RL34A are the right choices for potable water lines.
How Does a Well Pressure Tank Work?
A well pressure tank is a sealed container that holds water under compressed air pressure so your well pump does not have to run every time you open a faucet. Inside the tank is a rubber diaphragm (or a replaceable bladder) that separates the pressurized air on top from the water stored below. When you turn on a tap, the air pushes water out of the tank until the pressure drops to the cut-in setting on your pressure switch, usually 30 or 40 psi. The pump then runs and refills the tank until it reaches the cut-out setting, usually 50 or 60 psi, and the cycle repeats.
Without a pressure tank, the pump would short cycle, turning on and off every few seconds during normal use, which burns out the motor and pressure switch in a fraction of the design life. The tank is essentially a buffer that gives the pump time to cool between starts. Three construction types exist. A galvanized tank is the oldest style with water in direct contact with a steel shell and is rarely installed new today. A diaphragm tank has a rubber diaphragm sealed to the tank shell, while a bladder tank uses a replaceable rubber bladder. For large homes, a diaphragm or bladder tank with a polypropylene liner is the standard choice.
Sizing Guide for Large Homes: Match Tank Gallons to Pump HP and Bathrooms
The single biggest mistake homeowners make is sizing the tank to the pump instead of to the household demand. A 1/2 HP pump with a 10 gallon tank will short cycle to death in a 4-bedroom home, while a 1 HP pump with a 20 gallon tank does not see enough drawdown to justify the bigger pump. The right way to size is to match tank capacity to pump flow rate (GPM) and the number of bathrooms that might run at the same time.
As a working rule for large homes, a 1/2 HP pump pairs with a 32 to 44 gallon tank, a 3/4 to 1 HP pump pairs with a 44 to 86 gallon tank, and a 1.5 HP or larger pump pairs with an 86 to 119 gallon tank. If your home has four or more bathrooms plus an irrigation feed, jump one tier up regardless of pump size, because the concurrent fixture draw is the constraint.
The drawdown math explains why. A 44 gallon Well-X-Trol WX-250 on a 30/50 switch delivers about 15 gallons of usable water before the pump kicks on, while the same tank on a 40/60 switch delivers about 11 gallons. A 32 gallon tank at 30/50 gives roughly 10 gallons. Multiply that by the typical 10 GPM output of a residential pump and you can see why a 32 gallon tank means the pump cycles every minute during a heavy morning, while a 44 gallon tank buys you a minute and a half and a 119 gallon tank buys you close to four minutes.
For our roundup, the Amtrol WX-202 is the right pick for a large home with a 1/2 HP pump, the Red Lion RL34A is the right pick for a 3/4 HP pump with two-bathroom demand, and the Goulds V60 kit is the right pick for a 1 HP pump with three or more bathrooms. Households running irrigation should plan a second dedicated tank for the irrigation line so lawn watering does not eat into the domestic drawdown budget.
For related large-home infrastructure, our guide to the best window well covers for basements covers another piece of large-home maintenance that gets overlooked.
Pressure Switch Settings, Pre-Charge, and Avoiding Short Cycling
The two most common pressure switch settings are 30/50 and 40/60. A 30/50 switch turns the pump on at 30 psi and off at 50 psi, which delivers a comfortable 20 psi spread for typical residential use. A 40/60 switch gives you higher shower pressure but a tighter 20 psi spread with less drawdown. For large homes, 30/50 is the default choice because it gives you more usable water between pump starts.
Pre-charge pressure is the air pressure trapped above the diaphragm inside the tank, and it must be set to 2 psi below the pressure switch cut-in. For a 30/50 switch, that means 28 psi of air pre-charge. For a 40/60 switch, that means 38 psi. Check this once a year with a tire gauge on the air valve at the top of the tank, with the water drained and the pump off. If the pre-charge is too high, the pump short cycles because there is no room for water to enter. If it is too low, you get waterlogging and the same short cycling symptom.
Short cycling is the symptom that sends most homeowners shopping for a new tank, but the underlying cause is often the pressure switch rather than the tank. Before you replace the tank, watch the pressure gauge while the pump runs. If the pump turns on at the right cut-in but kicks off within a few seconds without much water use, the air pre-charge has likely failed. A 30-second refill cycle on a 32 gallon tank is normal. A 5-second cycle points to a waterlogged bladder or a stuck pressure switch contact.
For large homes considering a constant pressure upgrade, a VFD pump uses a small pressure tank (around 2 to 8 gallons) and a variable-speed controller to hold pressure within a 5 psi window. The smaller tank is fine for VFD systems because the pump modulates speed instead of cycling on and off, but it is the wrong choice if you are keeping a traditional single-speed pump.
Steel vs Fiberglass: Which Construction Wins for a Large Home?
For most large homes, a steel diaphragm or bladder tank is the right choice. Steel tanks have a deeper track record, more sizes available, and a wider dealer network. The Amtrol Well-X-Trol, WaterWorker, and A.O. Smith lines all use steel construction, and the 7-year warranty on the Amtrol line is the longest in the category.
Fiberglass earns its keep in three situations. Coastal well houses where salt air corrodes steel finishes, well water with sulfur smell or low pH that eats through steel liners, and outdoor well pits where temperature swings punish any metal finish. The Wellmate WM-6 and WM-series fiberglass tanks are the go-to choices for these scenarios, and the higher up-front cost pays back in longer tank life.
For a typical 4-bedroom home on a private well with neutral pH water, steel wins on cost, warranty, and replacement availability. Reserve fiberglass for the chemistry and climate cases where steel would not survive.
Frequently Asked Questions
Which brand of well pressure tank is the best?
Amtrol Well-X-Trol is the brand most plumbers reach for first, with a 7-year warranty, a 150 psig working pressure rating, and a steel diaphragm design that has been the industry standard since the company invented the diaphragm well tank. The WX-202 is the right pick for most large homes with a 1/2 HP pump, while the WX-250 and WX-302 cover larger 3/4 to 1 HP installations.
Is it better to have a larger well pressure tank?
Within reason, yes. A larger tank stores more usable water between pump starts, which reduces pump cycling, extends motor life, and delivers steadier pressure when multiple fixtures run at once. The trade-off is floor space and cost, and oversized tanks on small pumps do not refill efficiently. For most large homes, the 44 to 86 gallon band is the sweet spot.
What is the best size well pressure tank for my well?
Match the tank to the pump flow rate and household demand. A 1/2 HP pump pairs with a 32 to 44 gallon tank, a 3/4 to 1 HP pump pairs with a 44 to 86 gallon tank, and a 1.5 HP or larger pump pairs with an 86 to 119 gallon tank. Add a tier if your home has four or more bathrooms plus irrigation demand.
What is the average lifespan of a well pressure tank?
A steel diaphragm tank from a reputable brand lasts 15 to 30 years with proper pre-charge maintenance. Fiberglass tanks last 20 to 30 years in corrosive water where steel would fail sooner. The single biggest factor is keeping the air pre-charge set to 2 psi below the pressure switch cut-in and replacing the tank at the first sign of chronic short cycling.
How long do Well-X-Trol tanks last?
Real-world Well-X-Trol lifespan ranges from 4 to 40 years depending on water chemistry, pre-charge maintenance, and pressure switch health. A Connecticut installer we interviewed has a customer running a 30-year-old WX-202 that is still in service. The 7-year warranty covers manufacturing defects, not eventual bladder wear, so annual pre-charge checks are the key to long life.
Are Amtrol pressure tanks good quality?
Yes. Amtrol invented the diaphragm well pressure tank in the 1960s, and the Well-X-Trol line is the reference other brands benchmark against. The WX-202 and WX-250 use a virgin polypropylene inner liner, a butyl diaphragm, and a positive hoop ring seal that has proven durable in installer circles for decades.
What are the common problems with well pressure tanks?
The most common issues are a lost air pre-charge that causes short cycling, a torn bladder or diaphragm that waterlogs the tank, a corroded cast iron elbow at the base, and a failing pressure switch that mimics tank failure. Check the air pre-charge with a tire gauge once a year before assuming the tank itself has failed.
Which well pressure tank has the highest rating?
Among our tested picks, the Amtrol WX-202 leads with a 4.7 average across 656 reviews, followed by the VEVOR 20 gallon at 4.8 across an early review set. Across the broader category, the Amtrol Well-X-Trol line consistently posts the strongest long-term ratings on Amazon and in installer forums.
How do I check the pressure in my well tank?
Turn off the pump, drain the tank by opening a faucet until water stops flowing, then press a tire gauge onto the air valve at the top of the tank. The reading should be 2 psi below your pressure switch cut-in. Top off with a bicycle pump if it is low, and recheck every 12 months.
How many gallons should a well pressure tank be for a large home?
For a 4-bedroom, 2.5-bath home on a 3/4 HP pump, plan on a 44 gallon tank. For a 4-bedroom home with three or more bathrooms or a 1 HP pump, plan on a 44 to 86 gallon tank. Add a second tank plumbed in parallel if the home also runs an irrigation feed.
Conclusion
For a large home on a private well, the best well pressure tanks for large homes are the Amtrol WX-202 for steel builds, the Red Lion RL34A for stainless system connections, and the Goulds V60 kit when you want a one-shot replacement with everything in the box. Match the tank size to your pump GPM, set the pre-charge to 2 psi below cut-in, and check the air charge once a year. If you size it right, the tank will run quietly for twenty-plus years, and your pump will too. For more large-home infrastructure picks, browse our broader well pressure tank roundup.
